Wiring Diagram For Panoramic Sliding Sunroof Control Unit - PE77.20-P-2102-97NCA
Model 167.3 With Code 413 (Panoramic sliding sunroof/glass roof) Panoramic sliding sunroof control unit N70/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| CAN B | Interior CAN | 12K |
| F151/1 | Passenger-side A-pillar fuse box | 8L |
| F151/1 f309 | Fuse 309 | 7L |
| M12 | Panoramic sliding sunroof drive unit | 18L |
| M12/5 | Panoramic sliding roof Roller sun blind drive unit | 21L |

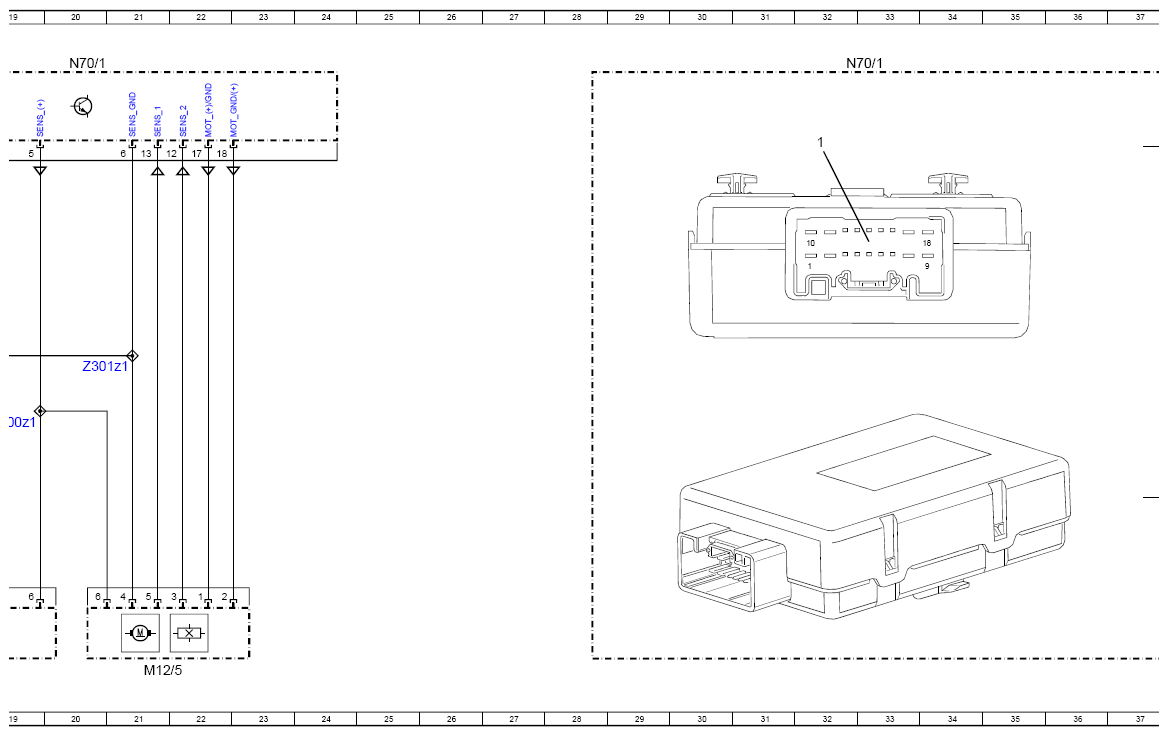

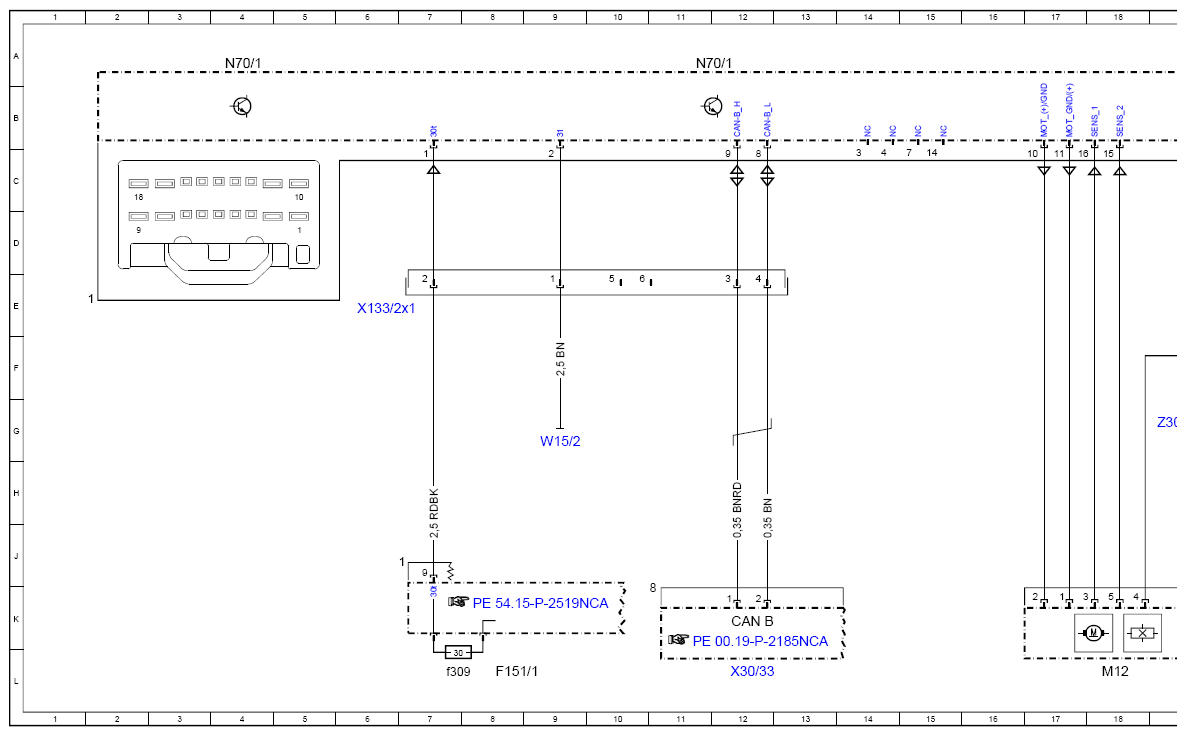

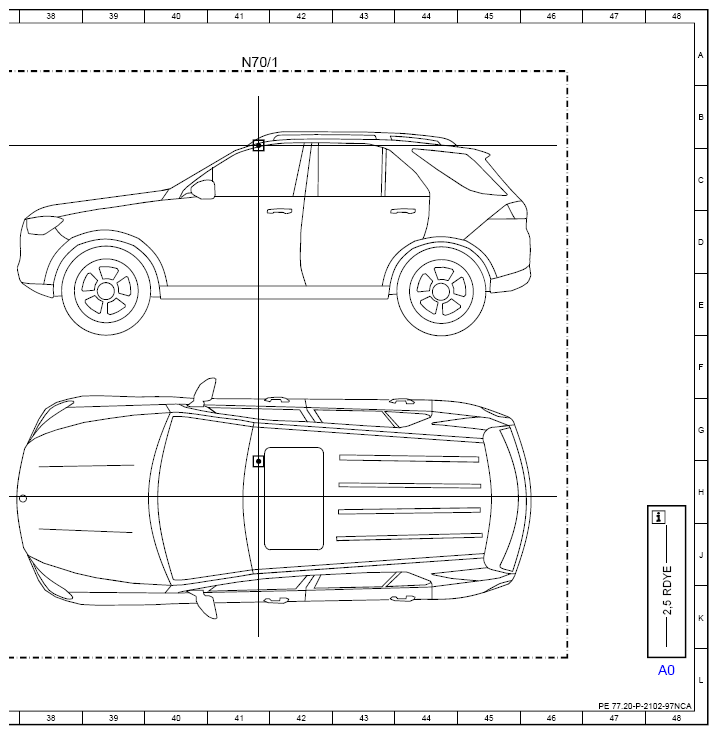

| N70/1 | Panoramic sliding sunroof control unit | 4A |
| N70/1 | Panoramic sliding sunroof control unit | 32A |
| N70/1 | Panoramic sliding sunroof control unit | 41A |
| N70/1 | Panoramic sliding sunroof control unit | 11A |
| N70/1 | Panoramic sliding sunroof control unit | 20A |
| W15/2 | Left footwell ground point | 9G |
| X133/2x1 | Sliding roof electrical connector | 6E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
| Z300z1 | Voltage supply connector sleeve | 19G |
| Z301z1 | Ground connection connector sleeve | 20F |
