Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind - AR77.21-P-0230MEC
Model 167.3
With Code 413 (Panoramic sliding sunroof/glass roof)
| Remove/install | |||
| 1 | Remove guide rail for panoramic sliding sunroof. | AR77.21-P-0432MEC | |

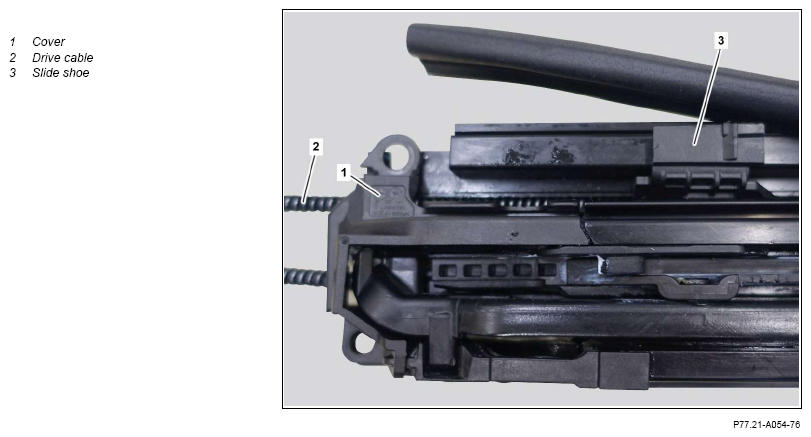

| 2 | Remove cover (1). | ||
| 3 | Pull slide shoe (3) with drive cable (2) for roller sunblind out of guide rail towards front. | ||
| 4 | Install in the reverse order. |
