Remove, Install Roller Sun Blind On Panoramic Sliding Roof - AR77.21-P-0215MEC

Model 167.3

With Code 413 (Panoramic sliding sunroof/glass roof)

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove sliding roof panel.		AR77.21-P-0503MEC
2	Remove wind deflector for panoramic sliding sunroof.		AR77.21-P-0101MEC
3	Switch on ignition and move mechanical sliding sunroof components to closed position.
4	Move roller sunblind (1) towards front until securing bore (arrow B) is visible.	Aid of helper required.
		Locking bore (arrow) is only present on right side of vehicle.
5	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).

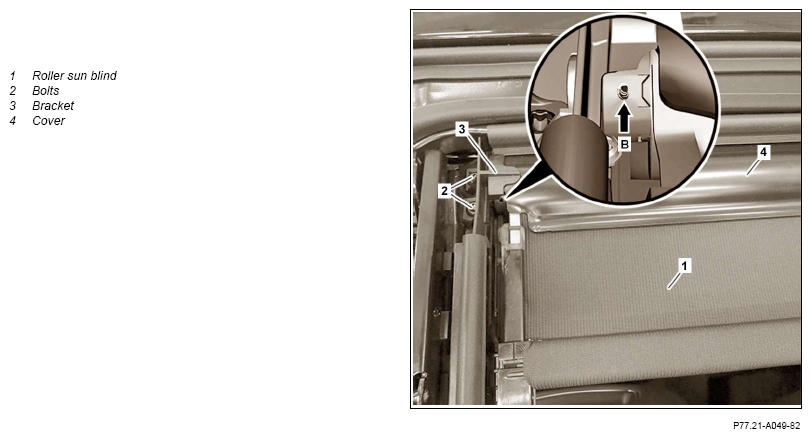

6	Insert suitable wire as locking pin into securing bore (arrow B).
7	Remove screws (2) at right and left side of vehicle.
8	Lift bracket (3), detach roller sunblind (1) remove bracket (3).	Only on right hand side of vehicle.
9	Remove cover (4).

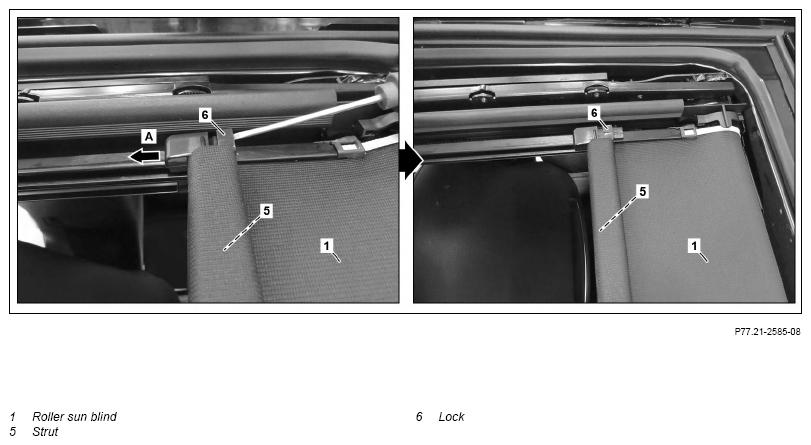

10	Release lock (6) and pull roller sunblind (1) forward (arrow direction A) at strut (5).	The instructions are shown only for one side and must be carried out on both sides.

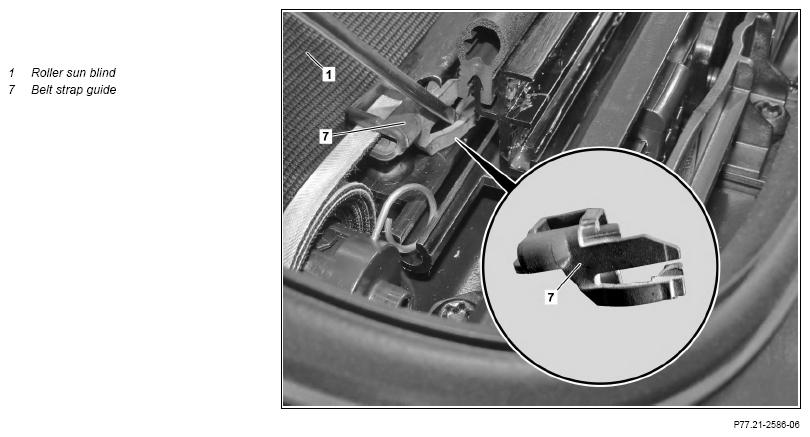

11	Unclip belt strap guide (7) from roller sunblind (1) and guide out of fabric.	The instructions are shown only for one side and must be carried out on both sides.
12	Remove fabric from guide rails.
13	Tilt roller sunblind (1) forwards and move out in forward direction.	Aid of helper required.
14	Install in the reverse order.
