Panoramic Sliding Roof - Clean And Lubricate Guide Mechanism - AP77.20-P-7732A

Model 118, 167, 177, 213, 238, 243, 247, 253, 290, 292

With Code 413 (Panoramic sliding sunroof/glass roof)

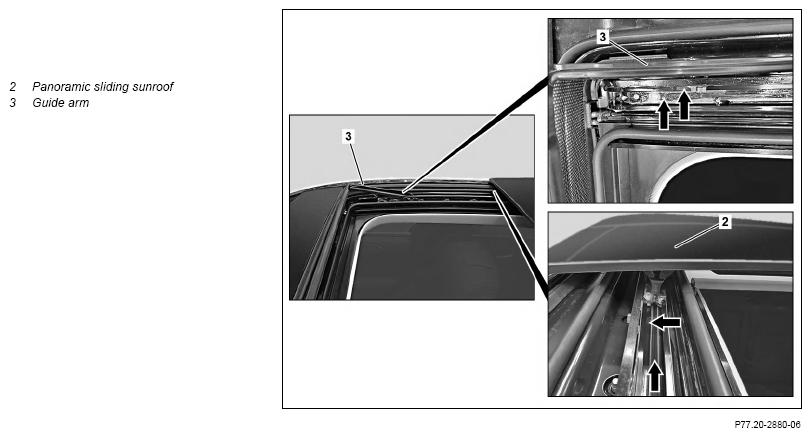

Shown on model 292 With Code 413 (Panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

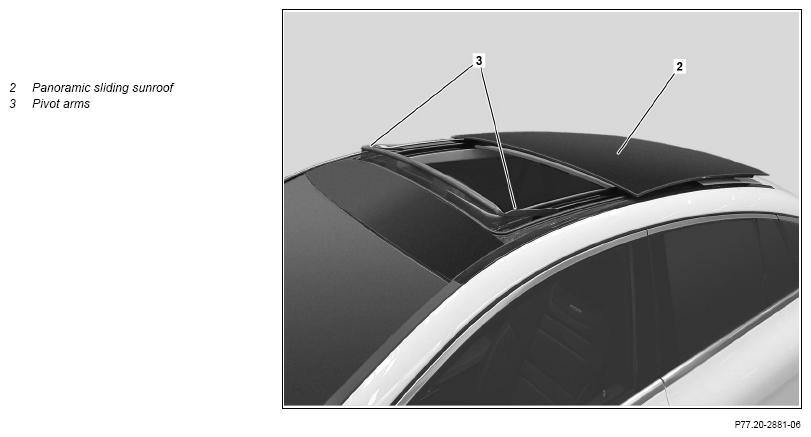

Shown on model 292 With Code 413 (Panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Preparatory activity
1	Open panoramic sliding sunroof (2).
	Clean
2	Use rag to clean pivot arm (3) of wind deflector.
3	Clean entire length of guide rails (arrow) using a rag.
	Lubricate
4	Apply thin coating of grease to pivot arm (3) of wind deflector.	Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	*BR00.45-Z-1004-06A
5	Apply coating of grease to contact surfaces along entire length of guide rails (arrows).	Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	*BR00.45-Z-1004-06A
6	Perform function test of panoramic sliding sunroof (2).
7	Remove any excess grease.
	Finishing activity
8	Close panoramic sliding sunroof (2).
