Install New Radial Sealing Ring At Drive Pinion Gear (With Differential Installed) - AR35.31-P-0530LW

MODEL 205, 253 (except 253.992/993)

MODIFICATION NOTES

29.06.2018 "Grease gearing of joint flange (41)", added. Operation step 11
17.02.2019 Collar nut, joint flange to drive pinion   BA35.31-P-1001-06B

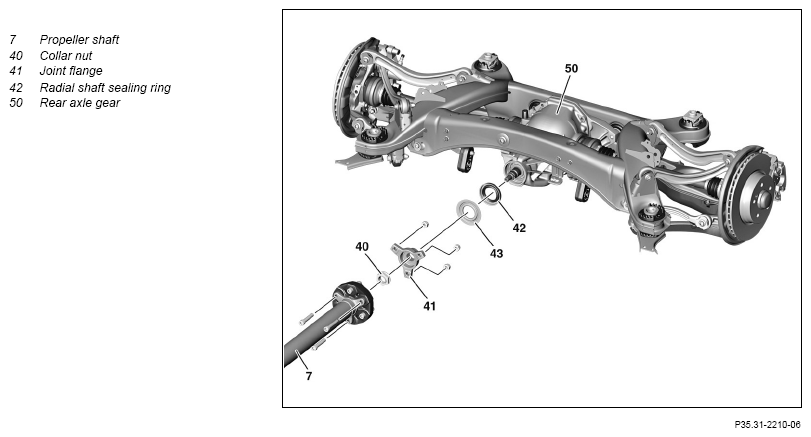

Fig 1: Radial Sealing Ring At Drive Pinion Gear Components Location - Model 253 (Except 253.992/993)
G14547073DANGERWARNINGCAUTIONCAUTIONREMOVINGIMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLNOTESINSTALLINGREFER TO CAPACITIES & SPECIFICATIONSNOTESIMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONSPECIAL TOOLINSPECTFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONTORQUE SPECIFICATIONCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
REMOVING Remove
1 Remove exhaust system from rear flange connection onwards. Model 205 with engine 177, 276
Model 253 with engine 177, 276.8
Model 205 with engine 177		 AR49.10-P-4952MNA
    Model 205 with engine 276 AR49.10-P-4952LW
    Model 253 with engine 276.8 AR49.10-P-4952RF
    Model 253 with engine 177 AR49.10-P-4952MNG
2 Remove propeller shaft (7) from joint flange (41) at rear axle differential (50) and secure. Model 205 AR41.10-P-0050LW
    Model 253 (except 253.992/993) AR41.10-P-0050LWX
3 Unscrew collar nut (40). IMPORTANT To do so, screw 2 screws into joint flange (41) and counterhold joint flange (41) using SPECIAL TOOL counterholder.
SPECIAL TOOL Counterholder		 Fig 4
4 Remove joint flange (41). SPECIAL TOOL Puller Fig 2
5 Check joint flange (41) for damage. If damage is found,
↓
Replace joint flange (41).
6 Pry radial shaft sealing ring (42) out of rear axle differential (50) using suitable tool. NOTES Do not damage seat of radial shaft sealing ring (42) in rear axle differential (50). Otherwise leaks may occur.
INSTALLING Install
7 Clean sitting surface of radial shaft sealing ring (42) in rear axle differential (50). Assembly cleaner *BR00.45-Z-1028-04A
8 Check sitting surface of radial shaft sealing ring (42) in rear axle differential (50) for damage. If damage is found,
↓
Replace rear axle differential (50).
Model 205 (except 205.386/387/486/487),
253 (except 253.388/389/988/989/992/993)		 AR35.31-P-0520LW
    Model 205.386/387/486/487
Model 253.388/389/988/989		 AR35.31-P-0522MNA
9 Coat radial shaft sealing ring (42) on inner sealing lip with universal hypoid gear oil.
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7) NOTES Do not apply any oil to the seat surface and outer circumference of the radial shaft sealing ring (42).
Otherwise leaks may occur.
IMPORTANT Replace radial shaft sealing ring (42).		 BB00.40-P-0235-07A
10 Press radial shaft sealing ring (42) into rear axle differential (50). SPECIAL TOOL Drift Fig 6
    SPECIAL TOOL Drift Fig 5
    SPECIAL TOOL Drift Fig 3
11 Grease gearing of joint flange (41). Molykote paste HTP special lubricating grease *BR00.45-Z-1028-06A
12 Install joint flange (41).
13 Tighten and caulk collar nut (40). IMPORTANT Replace collar nut (40).
TORQUE SPECIFICATION Model 253 (except 253.992/993) Collar nut, joint flange to drive pinion		 *BA35.31-P-1001-06B
    TORQUE SPECIFICATION Model 205Collar nut, joint flange to drive pinion *BA35.31-P-1001-01E
    TORQUE SPECIFICATION Model 205Collar nut, joint flange to drive pinion *BA35.31-P-1004-01E
    TORQUE SPECIFICATION Model 205Collar nut, joint flange to drive pinion *BA35.31-P-1006-01E
    SPECIAL TOOL Counterholder Fig 4
14 Attach propeller shaft (7) to joint flange (41) of rear axle differential (50). Model 205 AR41.10-P-0050LW
    Model 253 (except 253.992/993) AR41.10-P-0050LWX
15 Install exhaust system from rear flange connection onwards. Model 205 with engine 177, 276
Model 253 with engine 177, 276.8
Model 205 with engine 177		 AR49.10-P-4952MNA
    Model 205 with engine 276 AR49.10-P-4952LW
    Model 253 with engine 276.8 AR49.10-P-4952RF
    Model 253 with engine 177 AR49.10-P-4952MNG
INSPECT Check
16 Check oil level in rear axle differential (50) and correct if necessary. Model 205 (except 205.386/387/486/487), 253 except 253.388/389/988/989/992/993)
Model 205.386/387/486/487 AR35.31-P-0520-08MNA
Model 253.388/389/988/989		 AR35.31-P-0520-03LW
    FLUID SPECIFICATION Model 253 (except 253.388/389/988/989/992/993)
except code 700 (Vehicle production location China) Filling capacity		 *BF35.31-P-1001-02B
    FLUID SPECIFICATION Model 253 (except 253.388/389/988/989/992/993)
with code 700 (Vehicle production location China) Filling capacity		 *BF35.31-P-1002-02B
    FLUID SPECIFICATION Model 205.086/087/286/287/386/387/486/487Filling capacity for rear axle differential with differential lock *BF35.31-P-1003-01U
    FLUID SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487) ALU rear axle differential filling capacity *BF35.31-P-1002-01U
    FLUID SPECIFICATION Model 253.388/389/988/989Filling capacity for rear axle differential with differential lock *BF35.31-P-1003-02B
    FLUID SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487)
except code 700 (Vehicle production location China) FE rear axle differential filling capacity		 *BF35.31-P-1001-01U
    FLUID SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487)
with code 700 (Vehicle production location China) Filling capacity		 *BF35.31-P-1004-01U
    TORQUE SPECIFICATION Oil filler screw of rear axle differential *BA35.31-P-1002-02H
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
17 Check rear axle differential (50) for leak tightness.
REAR AXLE DIFFERENTIAL GEAR SET

Number Designation Model 205
BA35.31-P-1001-01E Collar nut, joint flange to drive pinion Rear axle differential Ø183 M26 Nm 120
REAR AXLE DIFFERENTIAL GEAR SET

Number Designation Model 253
BA35.31-P-1001-06B Collar nut, joint flange to drive pinion ALU rear axle differential 183 M26 Nm 120
ALU rear axle differential 197 M31 Nm 120
Rear axle differential 200 C M22 Nm 100
REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 205 Model 253
BA35.31-P-1002-02H Oil filler screw of rear axle differential Nm 50 50
REAR AXLE DIFFERENTIAL GEAR SET

Number Designation Model 205
BA35.31-P-1004-01E Collar nut, joint flange to drive pinion Rear axle differential Ø200 M29 Nm 120
REAR AXLE DIFFERENTIAL GEAR SET

Number Designation Model 205
BA35.31-P-1006-01E Collar nut, joint flange to drive pinion Rear axle differential Ø215 M29 Nm 120
REAR AXLE GEAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Vehicle production location China)
BF35.31-P-1001-01U FE rear axle differential filling capacity FE HAG187 Liter 0, 85
Specification   BB00.40-P-0235-07A
FE HAG200 Liter 1, 0
Specification   BB00.40-P-0235-07A
FE HAG215 Liter 1, 1
Specification   BB00.40-P-0235-07A
FE HAG225 Liter 1, 3
Specification   BB00.40-P-0235-07A
REAR AXLE GEAR

Number Designation Model 253 (except 253.388/389/988/989/992/993) except code 700 (Vehicle production location China)
BF35.31-P-1001-02B Filling capacity ALU rear axle differential 183   Liter 0, 8
Specification   BB00.40-P-0239-71A
ALU rear axle differential 197   Liter 0, 9
Specification   BB00.40-P-0239-71A
ALU HAG205   Liter 1, 0
Specification   BB00.40-P-0239-71A
REAR AXLE GEAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Vehicle production location China) Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Vehicle production location China)
BF35.31-P-1002-01U ALU rear axle differential filling capacity ALU HAG183 0, 8 -
Specification BB00.40-P-0239-71A -
REAR AXLE GEAR

Number Designation Model 253 (except 253.388/389/988/989/992/993) with code 700 (Vehicle production location China)
BF35.31-P-1002-02B Filling capacity Rear axle differential 200 C   Liter 1, 0
Specification   BB00.40-P-0235-07A
REAR AXLE GEAR

Number Designation Model 205.086/087/286/287/386/387/486/487
BF35.31-P-1003-01U Filling capacity for rear axle differential with differential lock   Liter 1, 2
  Specification   BB00.40-P-0235-61A
REAR AXLE GEAR

Number Designation Model 253.388/389/988/989
BF35.31-P-1003-02B Filling capacity for rear axle differential with differential lock   Liter 1, 2
Specification   BB00.40-P-0235-61A
Overview of specified transmission oils   -
Approved axle gear oils   -
REAR AXLE GEAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Vehicle production location China)
BF35.31-P-1004-01U Filling capacity Rear axle differential 200 C 1, 0
Overview of specified transmission oils BB00.40-P-0231-01A
References, approved axle gear oils BB00.40-P-0235A
Fig 2: Identifying Puller (129 589 01 33 00)
G11128825Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Drift (140 589 08 15 00)
G09976366Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Counterholder (176 589 00 40 00)
G11128638Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Drift (211 589 04 15 00)
G13842086Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Drift (140 589 14 15 00)
G13842088Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
BR00.45-Z-1028-06A Molykote paste HTP special lubricating grease Use corresponding commercially available repair materials.
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) A 002 989 23 71
