Remove/Install Rear Axle Carrier Front Elastomer Bearing - AR35.10-P-0044LW

Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487)

Model 213 (except 213.064/088/089/264/288/289)

Model 253 (except 253.388/389/988/989/992/993)

G14547010Courtesy of MERCEDES-BENZ USA

Shown on model 205

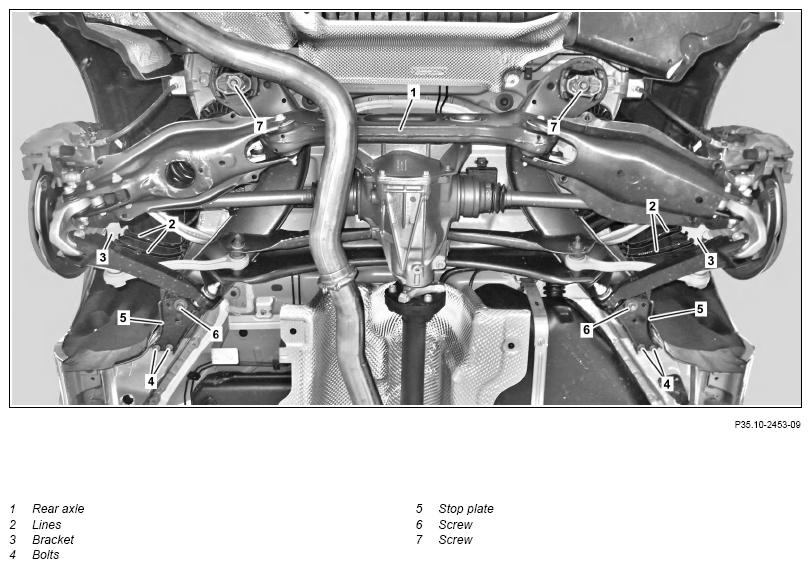

Fig 1: Rear Axle Carrier Front Elastomer Bearing Components Location - Model 253 (Except 253.388/389/988/989/992/993) (Shown On Model 205)
G14547011DANGERREMOVINGINSTALLINGREFER TO SELF-DIAGNOSTIC SYSTEMSTORQUE SPECIFICATIONREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTDISASSEMBLINGTORQUE SPECIFICATIONIMPORTANTSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
Notice Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
Notice Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
  Notes on level control Model 213.2 (except 213.264/288/289) except code 489 (AIRMATIC Dual Control/semi-active air suspension) AH32.22-P-1001-02LWT
  Notes on AIRmatic Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 213 (except 213.064/088/089/264/288/289) with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL)		 AH32.22-P-1000-02LW
REMOVINGINSTALLING Remove/install
1 Shift transmission to position N or to idle.
2 Raise vehicle and fix in place on vehicle lift.   AR00.60-P-1006A
3 Release pressure from air suspension on rear axle (1) using vehicle diagnosis system. Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 213.0 (except 213.064/088/089), 213.1 with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 213.2 (except 213.264/288/289)
Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
4 Perform power disconnect of high-voltage onboard electrical system. Model 213.016/050/053/054/216 AR54.10-P-1150LHV
    Model 205.012/013/047/053/054/147/212/213/247/25 3 AR54.10-P-1150LW
    Model 253.311/353/354/911/953/954 AR54.10-P-1150LVH
5 Remove rear wheels.   AR40.10-P-1102A
6 Remove diagonal struts. Model 205.4 (except 205.486/487)
Model 213.2 (except 213.264/288/289)
      AR61.10-P-5142LWP
7 Remove necessary components of exhaust system. Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487)
Model 213 (except 213.064/088/089/264/288/289)
Model 253 (except 253.388/389/988/989/992/993)
    Model 213 (except 213.064/088/089/264/288/289) with engine 256.9 AR49.10-P-4825MSA
    Model 213 (except 213.064/088/089/264/288/289) with engine 256.9 AR49.10-P-4824MSA
    Model 213 (except 213.064/088/089/264/288/289) with engine 264 AR49.10-P-4952MRH
    Model 213 (except 213.064/088/089/264/288/289) with engine 656 AR49.10-P-4952OIB
    Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with engine 626 AR49.10-P-4952ORB
    Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with engine 264 AR49.10-P-4952MRI
    Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with engine 654 AR49.10-P-4952OLI
    Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with engine 274.9, 276 AR49.10-P-4952LW
    Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with engine 651 AR49.10-P-7100LWB
    Model 253 (except 253.388/389/988/989) with engine 274.9, 276.8, 642, 651.9 AR49.10-P-4952RF
    Model 213 (except 213.064/088/089/264/288/289) with engine 274.9 AR49.10-P-4952MRD
    Model 213 (except 213.064/088/089/264/288/289) with engine 642 AR49.10-P-4952OGW
    Model 213 (except 213.064/088/089/264/288/289) with engine 654 AR49.10-P-4952OLC
    Model 213 (except 213.064/264) with engine 276.8 AR49.10-P-4825MND
    Model 213 (except 213.064/264) with engine 276.8 AR49.10-P-4824MND
8 Remove propeller shaft from rear axle differential, place to one side and fix in place. Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) AR41.10-P-0050LW
    Model 213 (except 213.064/088/089/264/288/289)
Model 253 (except 253.388/389/988/989/992/993)		 AR41.10-P-0050LWX
9 Unclip electric lines from holders for level sensors. Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487), 253 (except 253.388/389/988/989/992/993) with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping)
Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 213 (except 213.064/088/089/264/288/289) with code 459 (Steel suspension with adjustable damping)
Model 213 (except 213.064/088/089/264/288/289) with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL)
10 Disconnect electrical connectors from level sensors and place electric lines to one side. Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487), 253 (except 253.388/389/988/989/992/993) with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping)
Model 205 (except 205.064/086/087/264/286/287/364/386/387/48 6/487) with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 213 (except 213.064/088/089/264/288/289) with code 459 (Steel suspension with adjustable damping)
Model 213 (except 213.064/088/089/264/288/289) with code 489 (AIRMATIC Dual Control/semiactive air suspension)
Model 253 (except 253.388/389/988/989/992/993) with code 489 (AIR BODY CONTROL)
11 Release left and right underfloor paneling in area of stop plates (5). Model 205.0 (except 205.064/086/087), 205.1, 205.2 (except 205.264/286/287), 205.3 (except 205.364/386/387)
Model 213.0 (except 213.064/088/089), 213.1
Model 253 (except 253.388/389/988/989/992/993)
    Model 205.0 (except 205.064/086/087), 205.1, 205.2 (except 205.264/286/287), 205.3 (except 205.364/386/387)
Model 253 (except 253.388/389/988/989) with engine 264, 274, 276, 642, 651		 AR61.30-P-1001LW
    Model 213.0 (except 213.064/088/089), 213.1 AR61.30-P-1001LWE
12 Unhook lines (2) at right and left from holders (3).
13 Remove bolts (4) from stop plates (5). TORQUE SPECIFICATION Bolt, stop plate to body *BA35.10-P-1003-01H
14 Support rear axle (1) using major assembly mount and mounting plate.
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
15 Remove bolts (6) and remove stop plate (5). IMPORTANT Do not use an impact wrench.
DISASSEMBLING Clean thread in frame floor assembly using compressed air only, and check or correct seating of threaded inserts.
    TORQUE SPECIFICATION Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly *BA35.10-P-1001-01H
16 Lower rear axle (1) at front carefully.

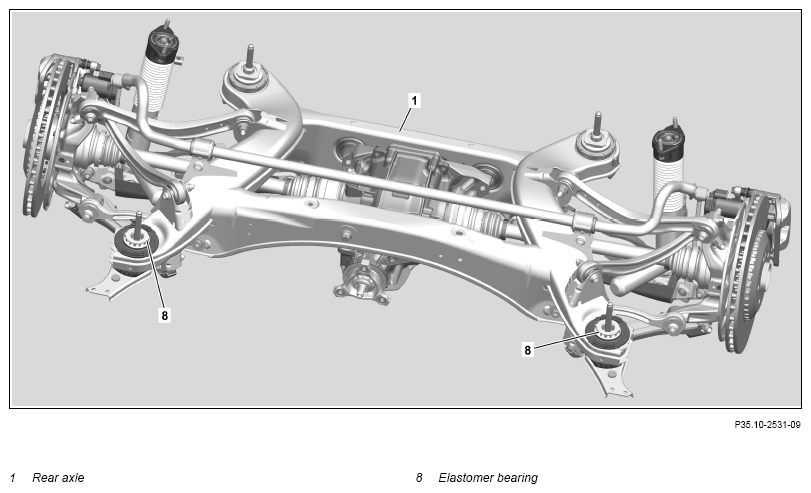

17 Remove front elastomer bearings (8). IMPORTANT Always replace front elastomer bearings (8) in pairs. AR35.10-P-0040-02LW
    Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
    SPECIAL TOOL Extraction and insertion tool Fig 5
    SPECIAL TOOL Hydraulic hose (complete) Fig 4
    SPECIAL TOOL Hollow cylinder Fig 3
    SPECIAL TOOL Hand pump Fig 2
    SPECIAL TOOL Securing belt Fig 6
18 Install in the reverse order.
19 Perform chassis alignment.   AR40.20-P-0200LW
REAR AXLE CARRIER

Number Designation Model 205 Model 213
BA35.10-P-1001-01H Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly Stage 1 Nm 100 100
Stage 2: Loosen ∠° 180 180
Stage 3 Nm 100 100
Stage 4 ∠° 90 90
REAR AXLE CARRIER

Number Designation Model 253
BA35.10-P-1001-01H Self-locking bolt securing front decoupling element of rear axle carrier to frame floor assembly Stage 1 Nm 100
Stage 2: Loosen ∠° 180
Stage 3 Nm 100
Stage 4 ∠° 90
REAR AXLE CARRIER

Number Designation Model 205 Model 213
BA35.10-P-1003-01H Bolt, stop plate to body Nm 35 35
REAR AXLE CARRIER

Number Designation Model 253
BA35.10-P-1003-01H Bolt, stop plate to body Nm 35
Fig 2: Identifying Hand Pump (652 589 00 33 21)
G14547012Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Hollow Cylinder (652 589 00 33 22)
G14547013Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)
G14547014Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Extraction And Insertion Tool (205 589 00 43 00)
G14547015Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Securing Belt (001 589 01 63 00)
G14547016Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 l A 000 989 03 67
