Remove/Install Elastomer Bearing Of Spring Control Arm On Rear Axle Carrier - AR35.20-P-3405LWI

Model 205

Model 213 (except 213.064/088/089/264/288/289)

Model 253 (except 253.388/389/988/989/992/993)

Fig 1: Elastomer Bearing Of Spring Control Arm On Rear Axle Carrier Components Location - Model 253 (Except 253.388/389/988/989/992/993) (Shown On Left Side)

Courtesy of MERCEDES-BENZ USA

Removal shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Installation shown on left side of vehicle

Shown on MODEL 205 with ENGINE 651

Courtesy of MERCEDES-BENZ USA

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove left or right longitudinal member pane	Model 205.4
			AR88.80-P-6000LW
2	Remove underfloor paneling	Model 213.2 (except 213.264/288/289)
			AR61.30-P-1001LWE
3	Remove diagonal strut	Model 205.4, 213.2 (except 213.264/288/289)
4	Remove spring control arm	Model 205 (except 205.386/387/486/487) Model 253 (except 253.388/389/988/989/992/993)	AR35.20-P-0114LW
		Model 205.386/387/486/487	AR35.20-P-0119LWI
		Model 213 (except 213.064/088/089/164/264/288/289)	AR35.20-P-0119LWE
5	Remove components of exhaust system in area of elastomer bearing (1)	Model 205 Model 213 (except 213.064/088/089/264/288/289) Model 253 (except 253.388/389/988/989/992/993) If required.
		Model 213 (except 213.064/088/089/264/288/289) with engine 276.8	AR49.10-P-4824MND
		Model 213 (except 213.064/088/089/264/288/289) with engine 276.8	AR49.10-P-4825MND
		Model 205 with engine 626	AR49.10-P-4952ORB
		Model 205 with engine 177	AR49.10-P-4952MNA
		Model 253 (except 253.388/389/988/989) with engine 274.9, 276.8, 642, 651.9	AR49.10-P-4952RF
		Model 205 with engine 274, 276	AR49.10-P-4952LW
		Model 205 with engine 651	AR49.10-P-7100LWB
		Model 213 with engine 274.9	AR49.10-P-4952MRD
		Model 213 with engine 642	AR49.10-P-4952OGW
		Model 213 with engine 654	AR49.10-P-4952OLC

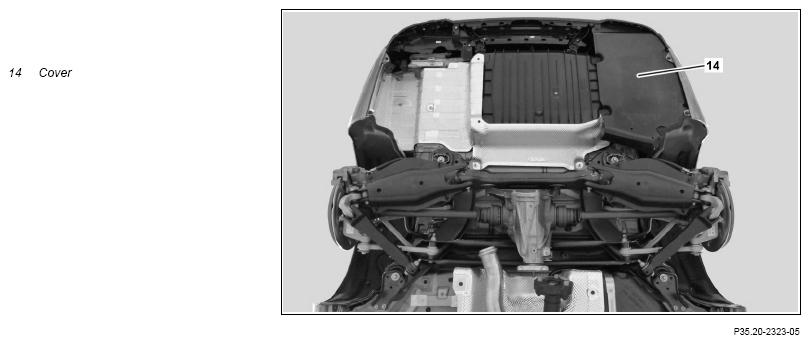

6	Remove paneling (14)	Model 205 with engine 264, 274, 626, 651 Model 213 (except 213.064/088/089/264/288/289) with engine 274, 642, 654, 656 Model 253 (except 253.388/389/988/989) with engine 642, 651, 654 When removing the right elastomer bearing (1).

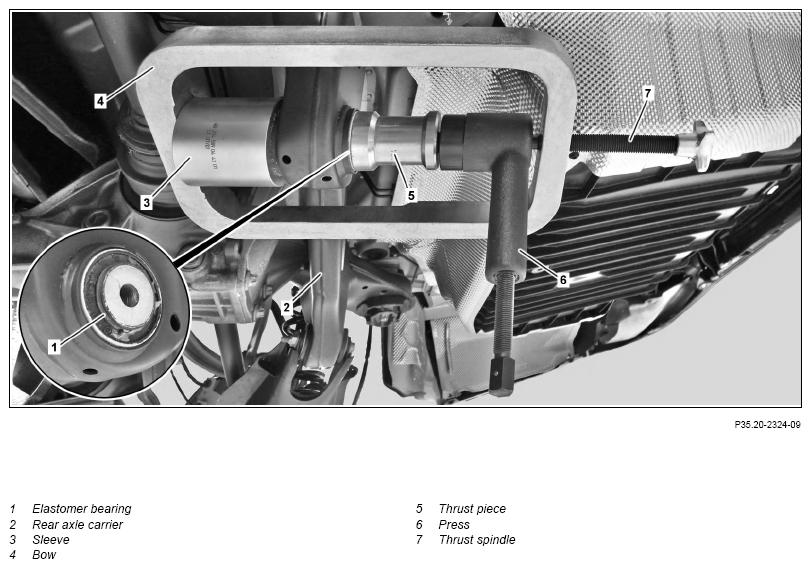

7	Position bracket (4) with sleeve (3), thrust piece (5) and press (6) on rear axle carrier (2) and on elastomer bearing (1) as shown	Use the sleeve (3) with the number 204 589 04 43 01 from the extraction and insertion tool. Use the bracket (4) with the number 220 589 01 43 01 and the thrust piece (5) with the number 220 589 01 43 04 from the press-out/press-in tool.
		Press	Fig 3
		Removal and installation tool	Fig 4
		Extraction and insertion tool	Fig 2
8	Press elastomer bearing (1) out of rear axle carrier (2)	The stroke of the press (6) is very low. The press (6) therefore has to be release several times, the thrust spindle (7) of the bracket (4) adjusted and the press (6) operated again.
	Install

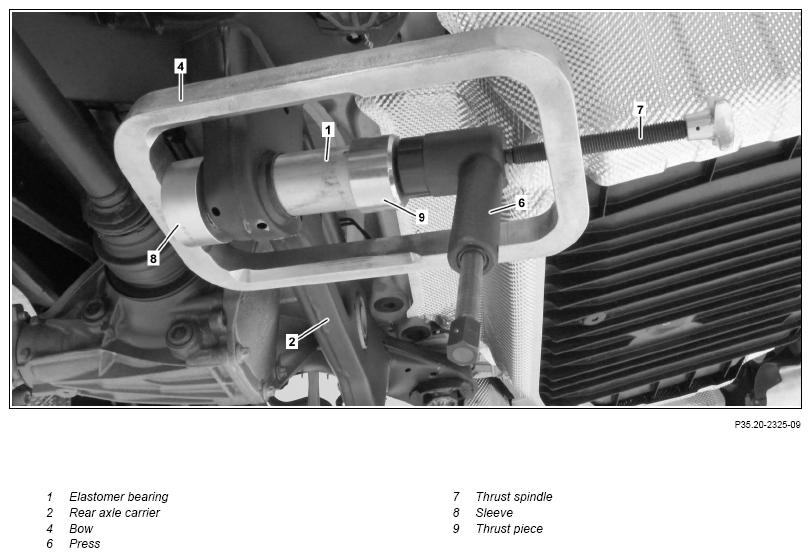

9	Position bracket (4) with sleeve (8), thrust piece (9) and press (6) on rear axle carrier (2) and on new elastomer bearing (1) as shown	Use the sleeve (8) with the number 204 589 04 43 02 from the extraction and insertion tool. Use the thrust piece (9) with the number 220 589 01 43 07 from the press-out/press-in tool.
		Press	Fig 3
		Removal and installation tool	Fig 4
		Extraction and insertion tool	Fig 2
10	Press elastomer bearing (1) all the way into rear axle carrier (2)	The stroke of the press (6) is very low. The press (6) therefore has to be released several times, the thrust spindle (7) of the bracket (4) adjusted and the press (6) operated again.
11	Remove special tools.
12	Install spring control arm	Model 205 (except 205.386/387/486/487) Model 253 (except 253.388/389/988/989/992/993)	AR35.20-P-0114LW
		Model 205.386/387/486/487	AR35.20-P-0119LWI
		Model 213 (except 213.064/088/089/164/264/288/289)	AR35.20-P-0119LWE
13	Install removed components of exhaust system	Model 205 Model 213 (except 213.064/088/089/264/288/289) Model 253 (except 253.388/389/988/989/992/993) If components of the exhaust system have been removed. Model 205 with engine 177
			AR49.10-P-4952MNA
		Model 253 (except 253.388/389/988/989) with engine 274.9, 276.8, 642, 651.9	AR49.10-P-4952RF
		Model 205 with engine 274, 276	AR49.10-P-4952LW
		Model 205 with engine 651	AR49.10-P-7100LWB
		Model 213 with engine 274.9	AR49.10-P-4952MRD
		Model 213 with engine 642	AR49.10-P-49520GW
		Model 213 with engine 654	AR49.10-P-4952OLC
		Model 213 (except 213.064/088/089/264/288/289) with engine 276.8	AR49.10-P-4825MND
		Model 213 (except 213.064/088/089/264/288/289) with engine 276.8	AR49.10-P-4824MND
		Model 205 with engine 626	AR49.10-P-49520RB
14	Install trim (14)	If installed. When installing the right elastomer bearing (1).
15	Install left or right diagonal strut	Model 205.4 Model 213.2 (except 213.264/288/289)
		Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
16	Install underbody paneling	Model 213.2 (except 213.264/288/289)
			AR61.30-P-1001LWE
17	Install longitudinal member paneling	Model 205.4	AR88.80-P-6000LW

FRAME FLOOR ASSEMBLY

Number	Designation		Model 205	Model 213
BA61.10-P-1008-01L	Bolt, rear diagonal strut to spare wheel well/body	Nm	70	50

Fig 2: Identifying Extraction And Insertion Tool (204 589 04 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Press (202 589 04 43 10)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Removal And Installation Tool (220 589 01 43 00)

Courtesy of MERCEDES-BENZ USA
