Remove/Install Elastomer Bearing Of Front And Rear Suspension Of Rear Axle Carrier - AR35.10-P-0047LW

Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487)

Model 213 (except 213.050/064/088/089/264/288/289)

Model 253 (except 253.388/389/988/989/992/993)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install

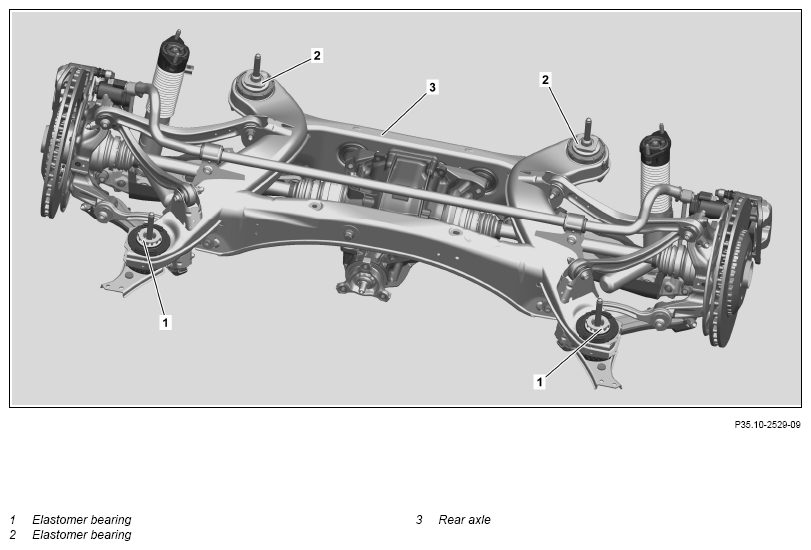

1	Remove rear axle (3)	Model 253 (except 253.388/389/988/989/992/993)	AR35.10-P-0010LWX
		Model 205 (except 205.064/086/087/264/286/287/364/386/387/486/487)	AR35.10-P-0010LW
		Model 213 (except 213.050/064/088/089/264/288/289)	AR35.10-P-0010LWE
2	Remove front elastomer bearings (1)	Always replace the front elastomer bearings (1) in pairs.	AR35.10-P-0040-02LW
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
		Extraction and insertion tool	Fig 2
		Hydraulic hose (complete)	Fig 6
		Hollow cylinder	Fig 4
		Hand pump	Fig 3
		Securing belt	Fig 5
3	Remove rear elastomer bearings (2)	Always replace the rear elastomer bearings (2) in pairs.	AR35.10-P-0040-03LW
		Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
		Hydraulic hose (complete)	Fig 6
		Hollow cylinder	Fig 4
		Hand pump	Fig 3
		Extraction and insertion tool	Fig 1
		Securing belt	Fig 5
4	Install in the reverse order

Fig 1: Identifying Extraction And Insertion Tool (204 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction And Insertion Tool (205 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Securing Belt (001 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Hydraulic Hose, Complete (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA
