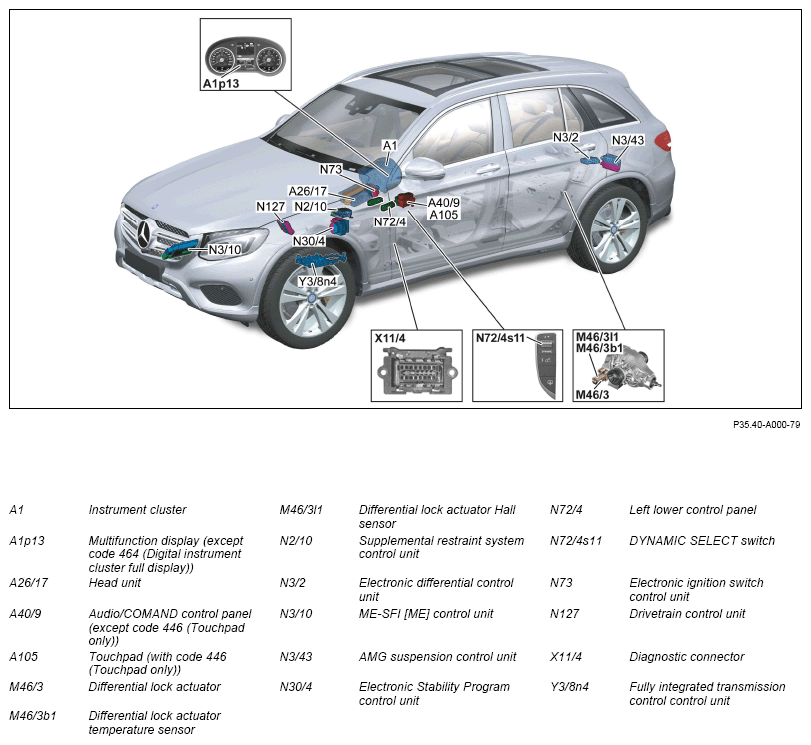

Overview Of System Components Of Electric Differential Lock (EAGGS) - GF35.40-P-9999AVJ
Model 253
with code 467 (Electronic locking differential)
Show on model 253.9

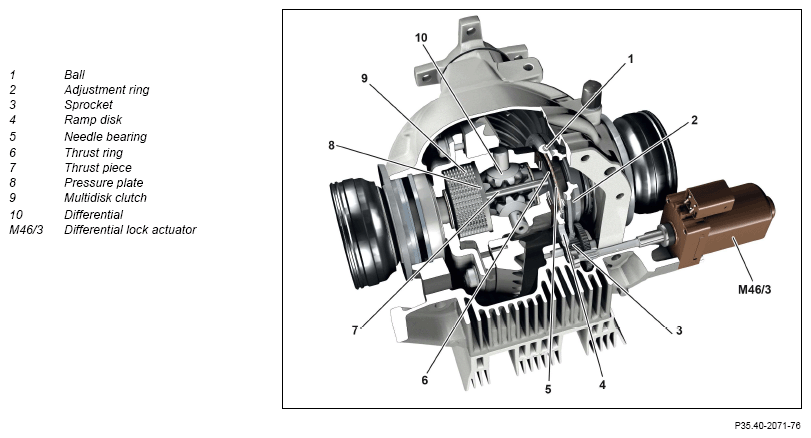

Sectional view of differential lock
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 253 up to model year 2020 with code 467 (Electronic locking differential) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Model 253 with code 467 (Electronic locking differential) with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 with code 467 (Electronic locking differential) with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 with code 467 (Electronic locking differential) with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND control panel | Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) A40/9 |
GF54.21-P-4501RF | |
| Touchpad, component description | Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) with code 467 (Electronic locking differential) A105 |
GF54.21-P-4511RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Electric differential lock control unit, component description | N3/2 | GF35.40-P-2000AVJ | |
| Component description for ME-SFI (ME) control unit | Model 253 with engine 177.9 with code 467 (Electronic locking differential) N3/10 |
GF07.61-P-6000MNA | |
| AMG sports suspension control unit, component description | Model 253 with transmission 725.096 with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002AVJ | |
| Component description for Electronic Stability Program control unit | Model 253 (except 253.311/353/354/911/953/954/99) with code 467 (Electronic locking differential) N30/4 |
GF42.45-P-5119RF | |
| Lower control panel, component description | N72/4 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | Model 253 (except 253.99) up to model year 2020 with code 467 (Electronic locking differential) N73 |
GF80.57-P-6001RF | |
| Model 253 (except 253.99) as of model year 2020 with code 467 (Electronic locking differential) N73 |
GF80.57-P-6001RFM | ||
| Drivetrain control unit, component description | Model 253 with engine 177.9 with code 467 (Electronic locking differential) N127 |
GF54.21-P-2141MNA | |
| Component description for fully integrated transmission control unit | Model 253 with transmission 725.0 with code 467 (Electronic locking differential) Y38n4 |
GF27.60-P-5165ANI | |
| Table of contents for function description of electric differential lock | GF35.40-P-0999AVJ |
