Remove/Install Adaptive Damping System (ADS) Control Unit - AR32.32-P-0500LW
Model 253.3
with code 459 (DYNAMIC BODY CONTROL Suspension With Adjustment Damping)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission Adaptive Damping System control unit (7) | When replacing the adaptive damping system control unit (7). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove left front seat | AR91.10-P-1000LW | |

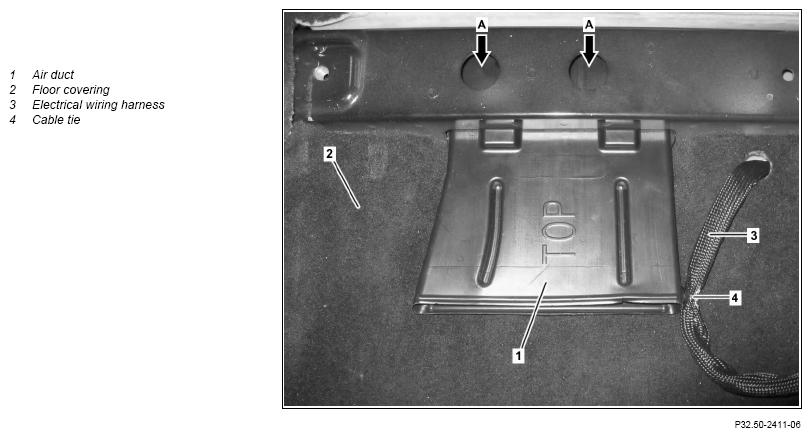

| 3 | Detach electrical wiring harness (3) from air duct (1) | ||
| 4 | Release air duct (1) (arrows A) and remove | ||
| 5 | Carefully raise floor covering (2) | ||

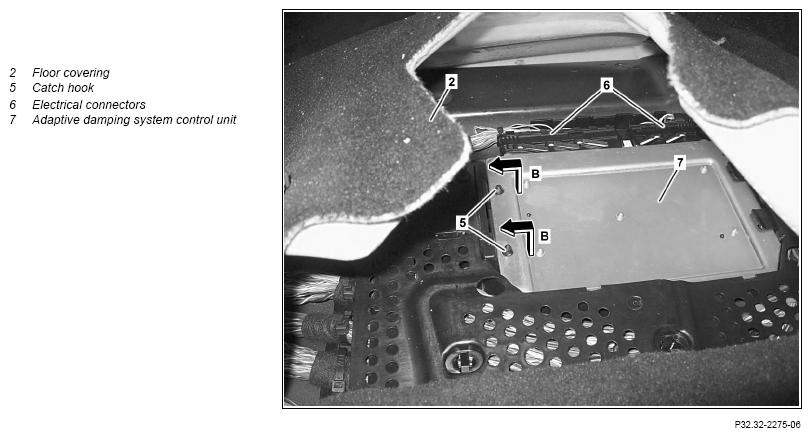

| 6 | Unclip Adaptive Damping System control unit (7) out of catch hooks (5) and pull out towards vehicle center (arrows B) | ||
| 7 | Disconnect electrical connectors (6) and remove Adaptive Damping System control unit (7) | ||
| 8 | Install in the reverse order |
