Model all
Example shows shock absorber not OK (rubber joint bearing deformed/worn out)
 Courtesy of MERCEDES-BENZ USA
|
Example shows shock absorber not OK (rubber joint bearing porous/cracked)
 Courtesy of MERCEDES-BENZ USA
|
If the rubber joint bearing is deformed, worn out, porous or cracked, the shock absorber must be replaced subject to a separate repair order.
Damage can occur otherwise.

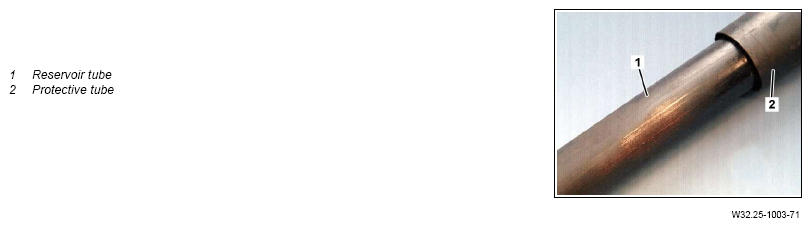

Example shows shock absorber OK (slight paint wear on reservoir tube (1))
 Courtesy of MERCEDES-BENZ USA
|

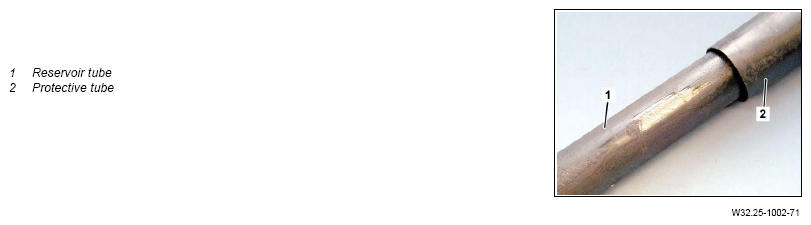

Example shows shock absorber not OK (significant paint wear on reservoir tube (1))
 Courtesy of MERCEDES-BENZ USA
|
If the fastening points are out of alignment, the protective tube (2) can rub against the reservoir tube (1) of the shock absorber (shock absorber is under stress).
If the reservoir tube (1) has deformation, dents, corrosion, paint wear or other damage, the reservoir tube (1) or the entire shock absorber must be replaced subject to a separate repair order.
Damage can occur otherwise.
If the protective tube (2) has deformation, dents, corrosion, paint wear or other damage, the protective tube (2) or the entire shock absorber must be replaced subject to a separate repair order.
Damage can occur otherwise.

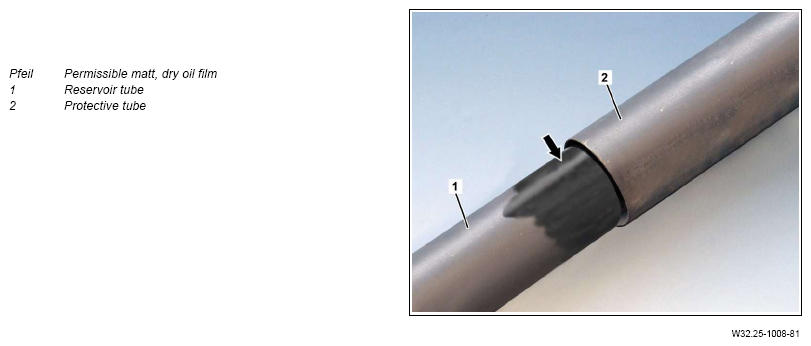

Example shows shock absorber OK
 Courtesy of MERCEDES-BENZ USA
|

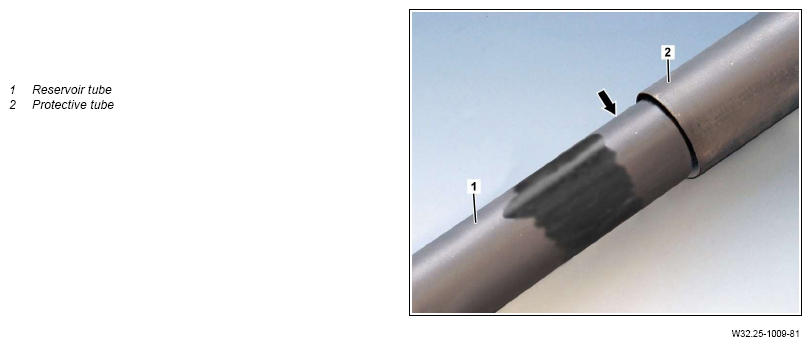

Example shows shock absorber OK (shock absorber pulled apart, dry in upper area (arrow))
 Courtesy of MERCEDES-BENZ USA
|

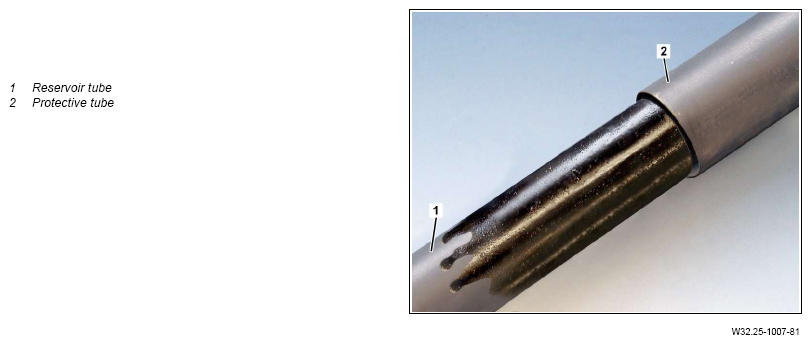

Example shows shock absorber not OK (shiny, wet oil film on entire reservoir tube (1))
 Courtesy of MERCEDES-BENZ USA
|
