Wiring Diagram For Instrument Cluster (IC) Control Unit - PE54.30-P-2101-97FCB
Model 253 (except 253.99)
as of model year 2020
A1 HIGH
Model 253.99
as of model year 2019
with code 9O1 (Fuel cell pre-installation)
A1
| Code: | Designation: | Position: |
|---|---|---|

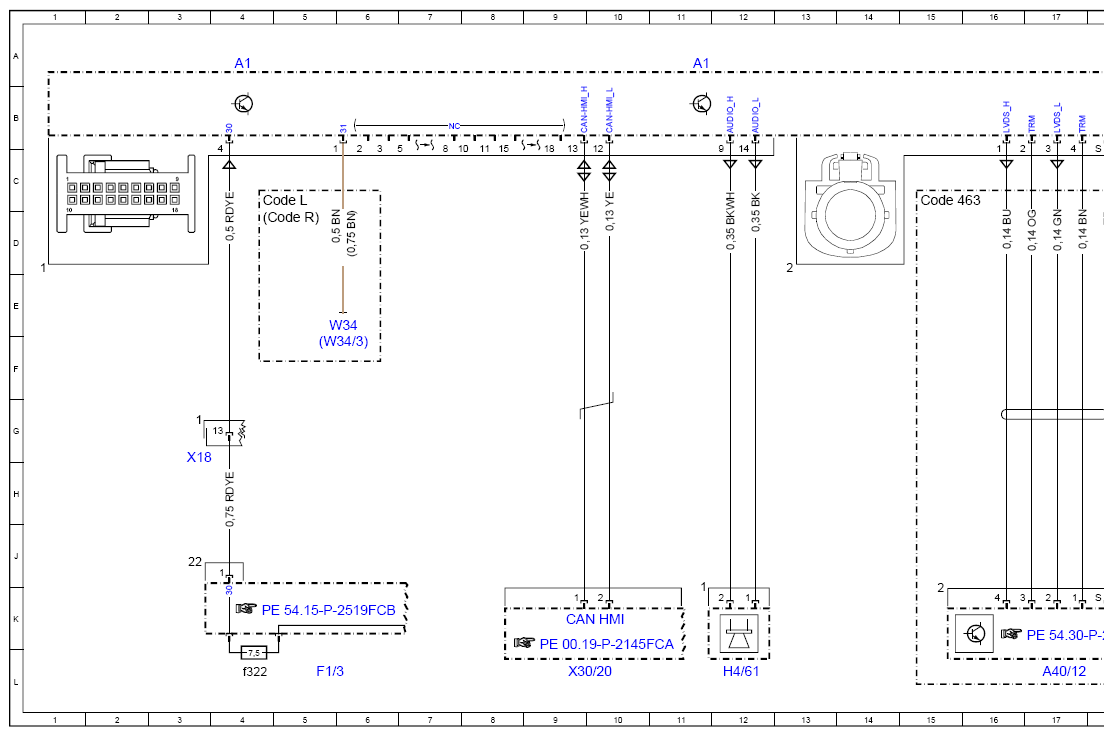

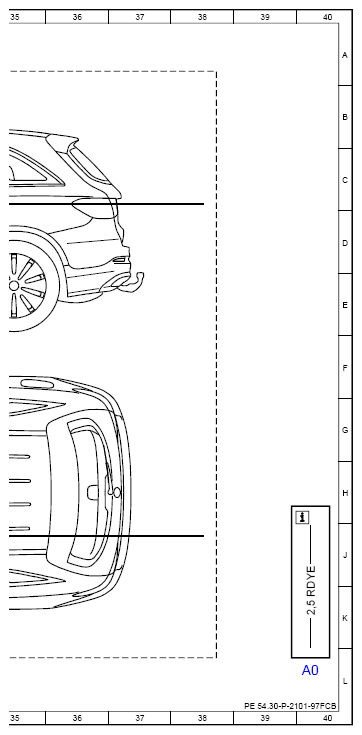

| A0 | Use of wiring diagrams | 40L |

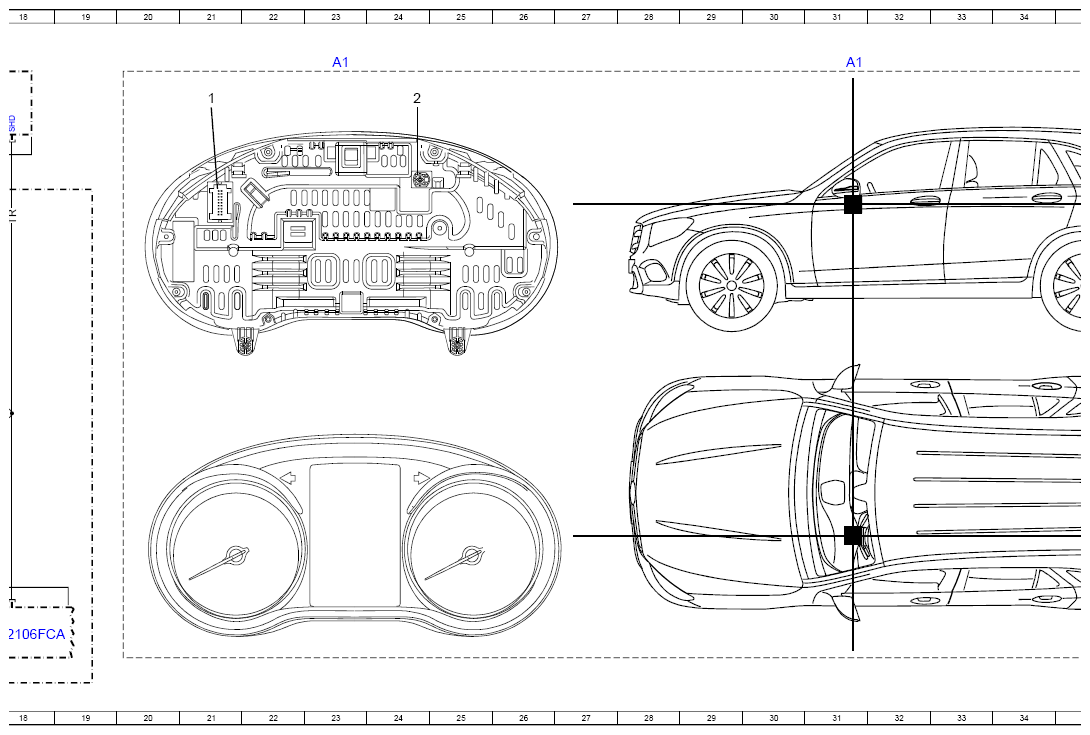

| A1 | Instrument cluster | 4A |
| A1 | Instrument cluster | 11A |
| A1 | Instrument cluster | 23A |
| A1 | Instrument cluster | 31A |
| A40/12 | Head-up display | 17L |
| CAN HMI | User interface CAN | 9K |
| Code 463 | Head-up display | 15C |
| Code L | LEFT-HAND DRIVE | 4C |
| Code R | RIGHT-HAND DRIVE | 4D |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3f322 | Fuse 322 | 4L |
| H4/61 | Instrument cluster speaker | 12L |
| W34 | Left footwell ground point | 6E |
| W34/3 | Right footwell ground point | 5F |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 3H |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 9L |
