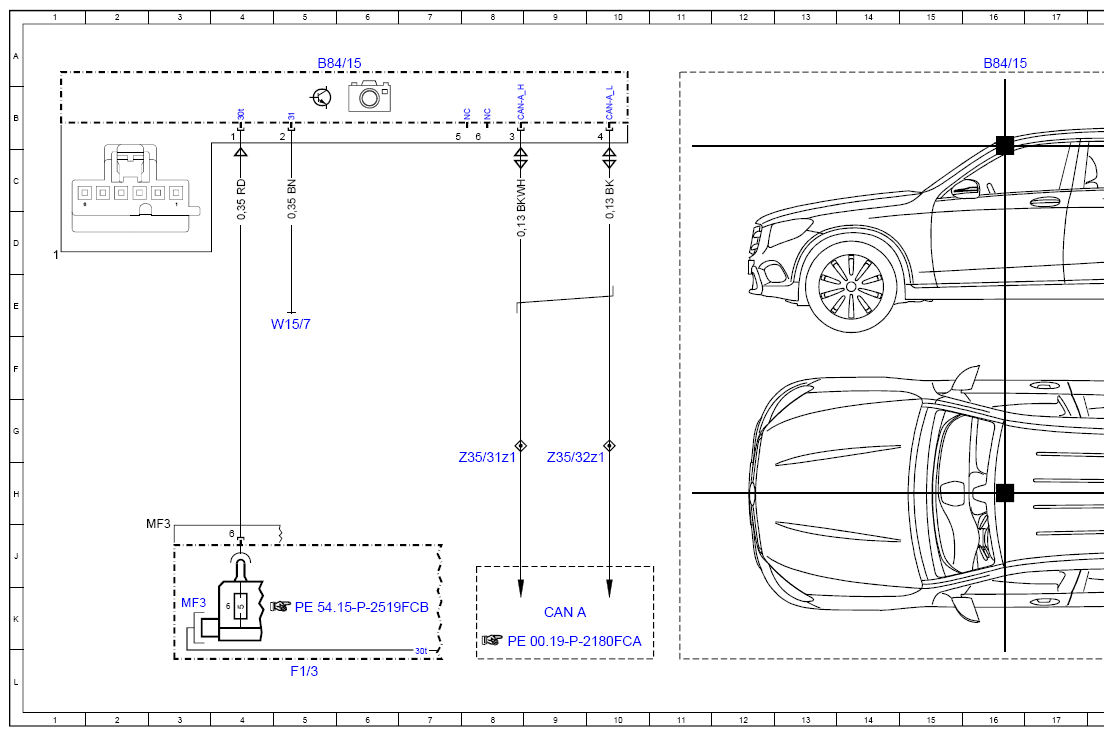

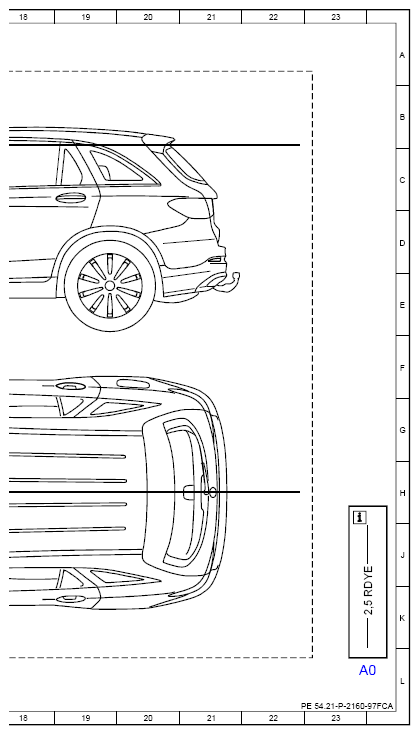

Wiring Diagram Of Hand Movement Sensor Control Unit - PE54.21-P-2160-97FCA
Model 253 (except 253.99)
as of model year 2020
with code 77B (Contactless gesture control at front)
B84/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| B84/15 | Hand motion sensor | 5A |
| B84/15 | Hand motion sensor | 16A |
| CAN A | Telematics CAN | 9K |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF3 | Multiple fuse 3 | 3K |
| W15/7 | Right front footwell ground point | 5E |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 8G |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 9G |
