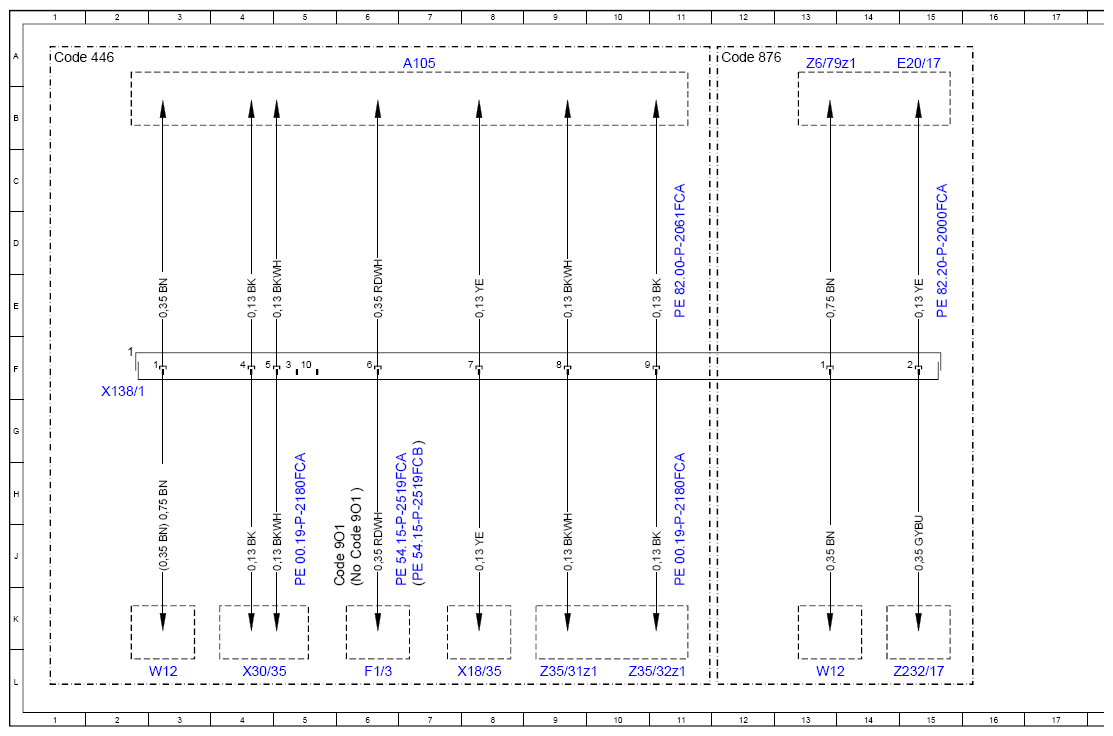

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FCD
Model 253 (except 253.99) as of model year 2020
X138_1
Model 253.99 as of model year 2019 with code 9O1 (Fuel cell pre-installation)
X138_1
| Code: | Designation: | Position: |
|---|---|---|

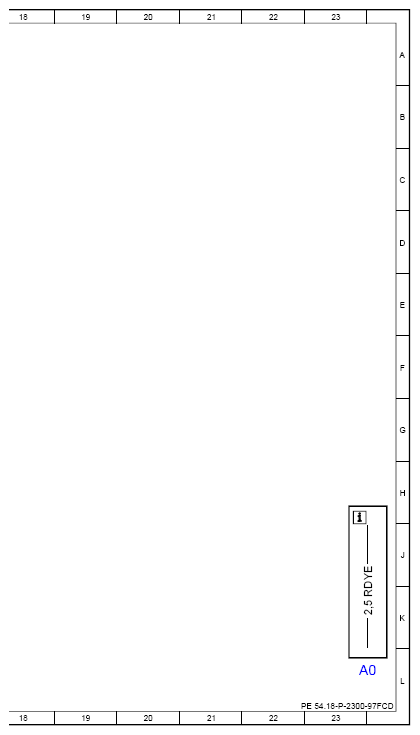

| A0 | Use of wiring diagrams | 23L |
| A105 | Touchpad | 7A |
| Code 446 | Touchpad only | 1A |
| Code 876 | Interior lights package | 12A |
| Code 901 | Fuel cell retrofitting | 6J |
| Code 901 | Fuel cell retrofitting | 6J |
| E20/17 | Center console cup holder illumination | 15A |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| W12 | Ground point (center console) | 3L |
| W12 | Ground point (center console) | 13L |
| X138/1 | Front center console electrical connector | 2F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 8L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 4L |
| Z232/17 | Ambiance illumination connector sleeve | 15L |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 9L |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 10L |
| Z6/79z1 | Circuit 31 connector sleeve | 13A |
