Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBL

Model 253 (except 253.99) up to model year 2020 X26 (Engine 642)

Code: Designation: Position:
AO Use of wiring diagrams 32L
A9/7 Refrigerant compressor with magnetic clutch 15L
A9/7y1 Refrigerant compressor regulation valve 14L
A9/7y2 Refrigerant compressor magnetic clutch 15L
B4/7 Fuel pressure sensor 24L
Code L LEFT-HAND DRIVE 11A
Code M642 DIESEL ENGINE 0M642 1A
Code R RIGHT-HAND DRIVE 11A
K40/8 Engine fuse and relay module 6L
K40/8f101 Fuse 101 3L
K40/8f102 Fuse 102 5L
K40/8f104 Fuse 104 2L
N118 Fuel pump control unit 24A
N22/1 Climate control control unit 20A
W16/5 Left major assembly compartment electronics ground point 12A
W16/6 Right major assembly compartment ground point 12A
X18/35 Cockpit wiring harness and frame floor assembly electrical connector 14D
X25/7 Engine compartment/frame floor assembly electrical connector 1H
X26 Interior and engine wiring harness electrical connector 8F
Z6/29z1 Connector sleeve, ground connection for fuel pump 23D
Z6z1 Circuit 31 connector sleeve 12H
Z7/47z1 Circuit 87/1 connector sleeve 4E
Z7/48z1 Circuit 87/2 connector sleeve 3E
Z7/5z1 Circuit 87 connector sleeve 9H
Z7/5z2 Circuit 87 connector sleeve 8H
Z7/5z3 Circuit 87 connector sleeve 10H

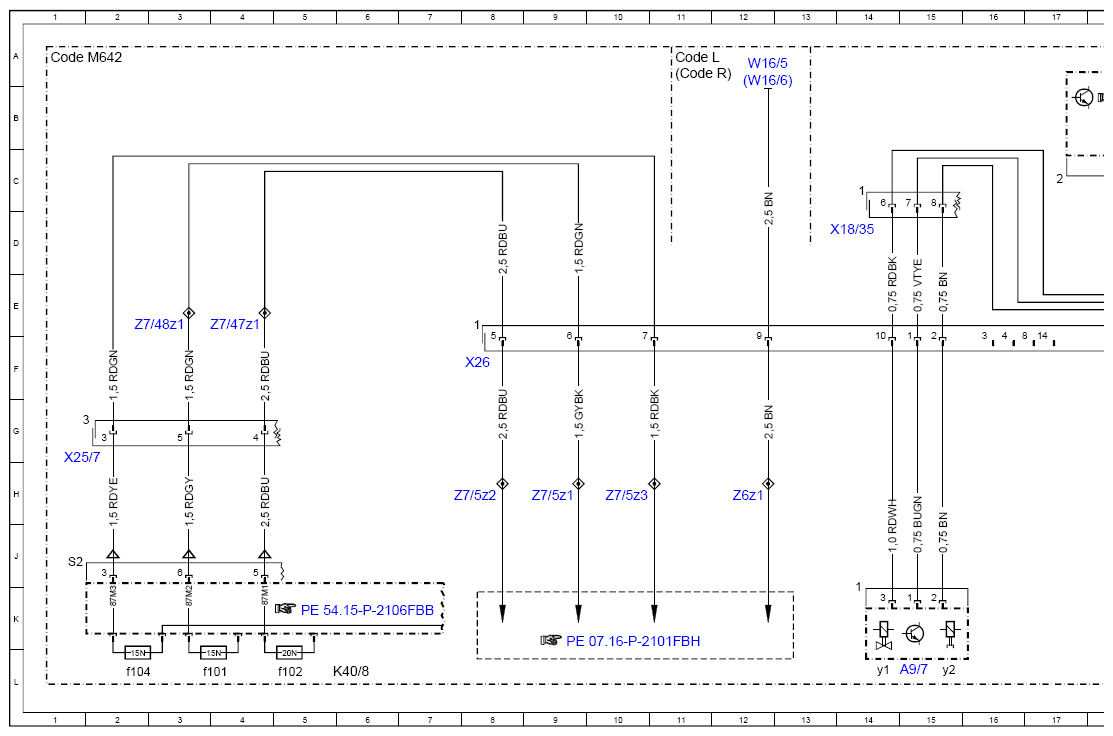

G14474863Courtesy of MERCEDES-BENZ USA

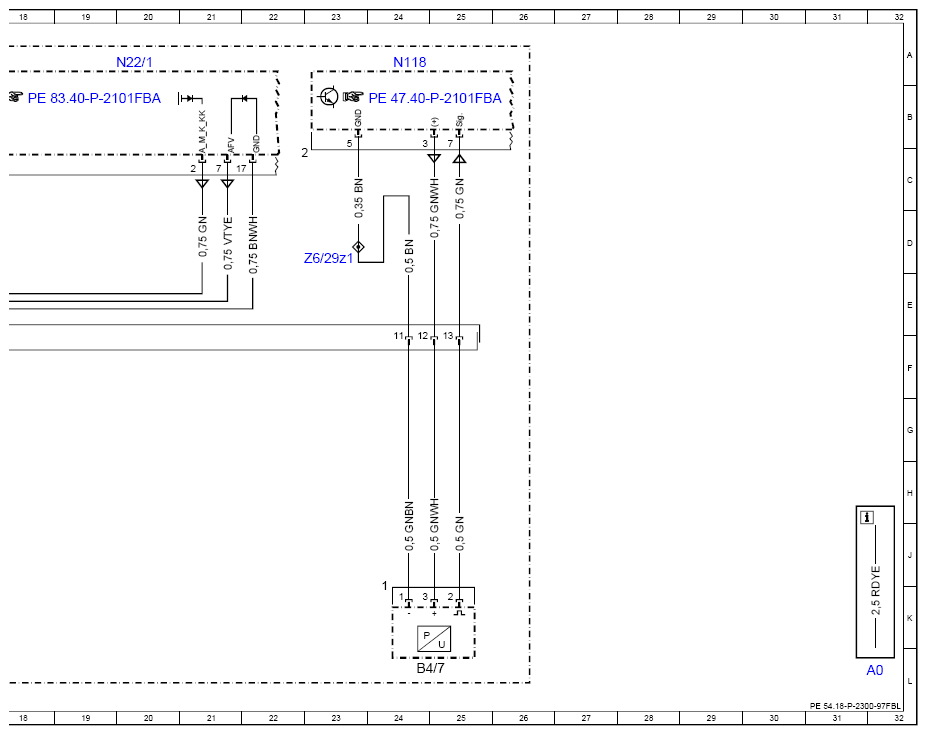

G14474864Courtesy of MERCEDES-BENZ USA
