Remove/Install Sensors For Blind Spot Assist - AR54.71-P-0100LWG
Model 253 (except 253.992/993) with code 234 (Blind Spot Monitoring)
Model 253 (except 253.992/993) with code 237 (Active Blind Spot Assist)

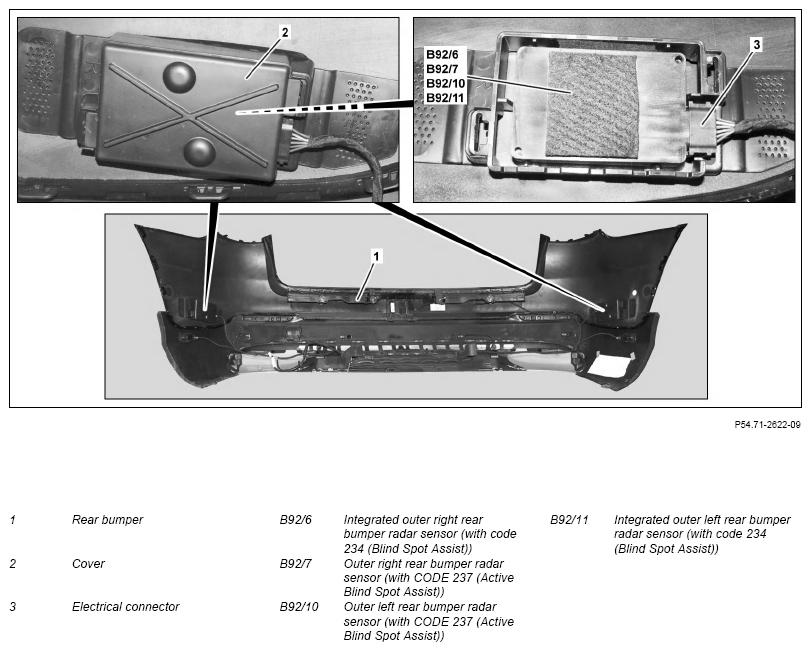

Fig 1: Sensors For Blind Spot Assist Components Location - Model 253 (Except 253.992/993) With Code 234; 237
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Remove/install | |||
| 1 | Remove rear bumper (1) | AR88.20-P-2200LWG | |
| 2 | Detach cover (2) by squeezing together right and left catch hooks | ||
| 3 | Disconnect electrical connector (3) from radar sensor (B92/6, B92/7, B92/10, B92/11) | ||
| 4 | Remove radar sensor (B92/6, B92/7, B92/10, B92/11) | ||
| 5 | Install in the reverse order |
