Remove/Install Parking System Speaker - AR54.65-P-0034LWX
Model 253 (except 253.992/993) as of model year 2020 with code 235 (Active Parking Assist with PARKTRONIC)
Model 293 with code 235 (Active Parking Assist with PARKTRONIC)

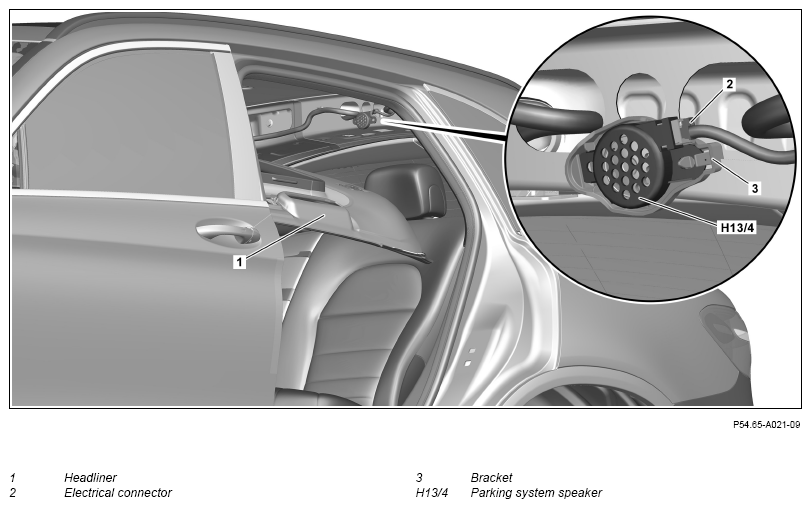

Fig 1: Parking System Speaker Components Location - Model 253 (Except 253.992/993) As Of Model Year 2020 With Code 235
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Release roof lining (1) and place into vehicle. | AR68.30-P-4300LWS | |
| 2 | Disconnect electrical connection (2). | ||
| 3 | Unclip and remove parking system speaker (H13/4) at bracket (3). | ||
| 4 | Install in the reverse order |
