Remove/Install Backup Camera - AR54.65-P-0030LWX
Model 253.3 with code 218 (Rear view camera)
Model 253.3 with code 501 (360° camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 253.3 with code 218 (Rear view camera) with code 871 (Sensor system for trunk lid opening/closing) with code 889 (KEYLESS-GO) | AH80.61-P-0001-01A | |
| Model 253.3 with code 501 (360° camera) with code 871 (Sensor system for trunk lid opening/closing) with code 889 (KEYLESS-GO) | |||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove center liftgate trim. | AR72.20-P-6618LWS | |

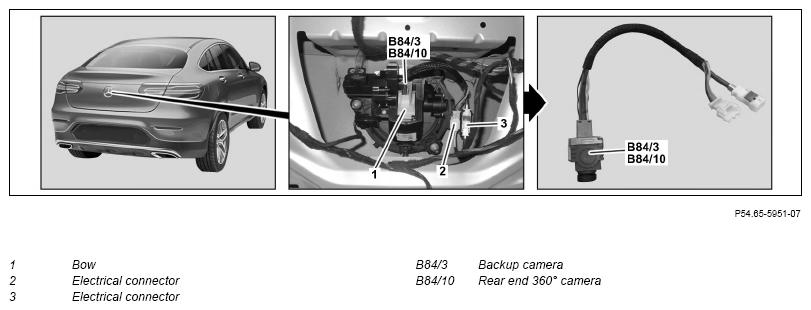

| 3 | Release bracket (1). | ||
| 4 | Release, disconnect and unclip electrical connector (2). | ||
| 5 | Release, disconnect and unclip electrical connector (3). | ||
| 6 | Pull out Backup Camera (B84/3) or camera for rear 360° camera (B84/10) inwards. | ||
| 7 | Install in the reverse order | ||
| Initial startup | |||
| 8 | Commission Backup Camera (B84/3) using vehicle diagnosis system. | Model 253.3 with code 218 (Rear view camera) except code 235 (Active Parking Assist) When replacing Backup Camera (B84/3). | |
| Calibrate | |||
| 9.1 | Calibrate rear 360° camera (B84/10) or Backup Camera (B84/3) using diagnostic system. | Model 253.3 with code 218 (Rear view camera) with code 235 (Active Parking Assist) Model 253.3 with code 501 (360° camera) |
|
| AD00.00-P-2000-04B | |||
| 9.2 | Calibrate Backup Camera (B84/3) with vehicle diagnosis system. | Model 253.3 with code 218 (Rear view camera) except code 235 (Active Parking Assist) | AD00.00-P-2000-04B |
| Fig 2 |
