Remove/Install Additional Fan For Instrument Cluster - AR54.30-P-0003LWX
Model 253 (except 253.992/993) as of model year 2020 with code 464 (Full display digital instrument cluster)

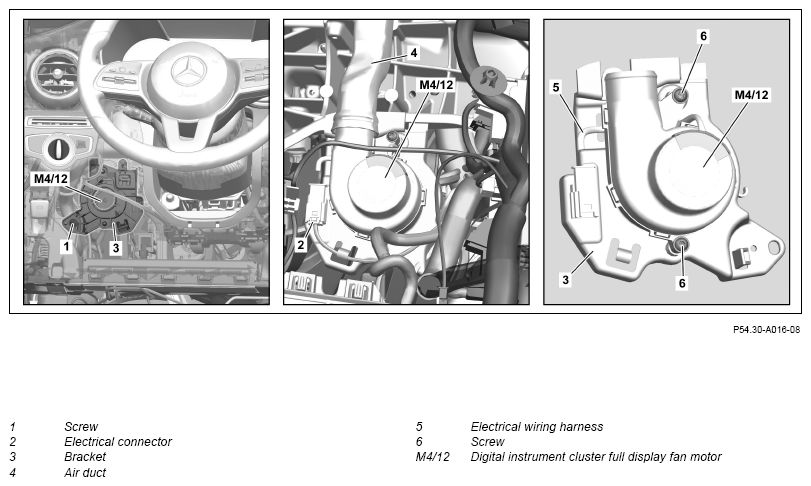

Fig 1: Additional Fan For Instrument Cluster Components Location - Model 253 (Except 253.992/993) As Of Model Year 2020 With Code 464
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove cover below instrument panel on driver's side. | AR68.10-P-1500LW | |
| 2 | Remove driver kneebag. | Model 253 (except 253.992/993) as of model year 2020 with code 294 (Kneebag) with code 464 (Full display digital instrument cluster) | AR91.60-P-0200LW |
| 3 | Unscrew bolt (1). | ||
| 4 | Disconnect electrical connection (2). | ||
| 5 | Expose electric lines at holder (3). | ||
| 6 | Detach digital instrument cluster full display fan motor (M4/12) with holder (3) from crossmember and pull out of air duct (4). | ||
| 7 | Expose electrical wiring harness (5). | Only when replacing the digital instrument cluster full display fan motor (M4/12) | |
| 8 | Unscrew screws (6) and remove digital instrument cluster full display fan motor (M4/12) from holder (3). | Only when replacing the digital instrument cluster full display fan motor (M4/12) | |
| 9 | Install in the reverse order |
