Remove/Install Passenger's Side Interior Fuse Box - AR54.15-P-1311LWG

Model 253 (except 253.992/993)

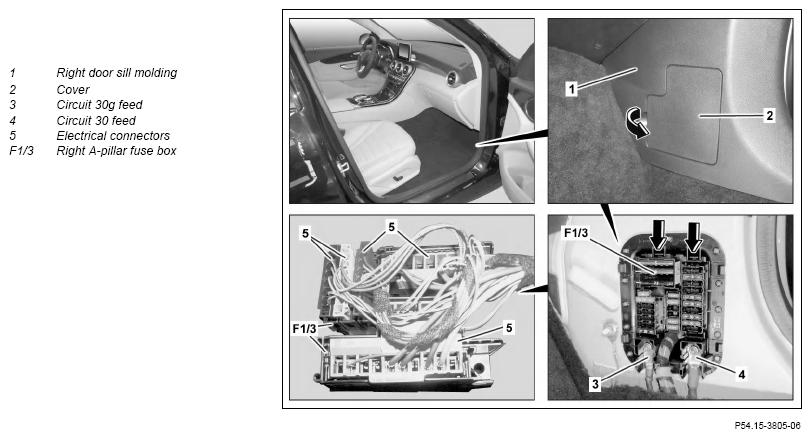

Fig 1: Passenger's Side Interior Fuse Box Components Location - Model 253 (Except 253.992/993)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key
2	Disconnect battery ground line		AR54.10-P-0003LW
3	Remove cover (2)
4	Remove right door sill (1)		AR68.30-P-4100LW
5	Unscrew nut from feed circuit 30g (3)	Pay attention to installation position.
		Nut, positive line to vehicle interior prefuse box	*BA54.15-P-1004-01K
6	Unscrew nut from feed circuit 30g (4)	Pay attention to installation position.
		Nut, positive line to vehicle interior prefuse box	*BA54.15-P-1004-01K
7	Unclip fuse box on right A-pillar (F1/3) at top (arrows) and remove
8	Detach electrical connections (5) from fuse box on right A-pillar (F1/3)	The number can vary according to the equipment.
9	Install in the reverse order

FUSE AND RELAY BOX

Number	Designation			Model 253
BA54.15-P-1004-01K	Nut, positive line to vehicle interior prefuse box	M6	Nm	8
		M8	Nm	16
