(Charge Battery - AR54.10-P-1130RG)

Model 190

Courtesy of MERCEDES-BENZ USA

	Risk of fire/risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Check
1	Check condition of on-board electrical system battery (G1)	Model 190 except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Not with active transport mode.	AR54.10-P-1129RG
	Charging

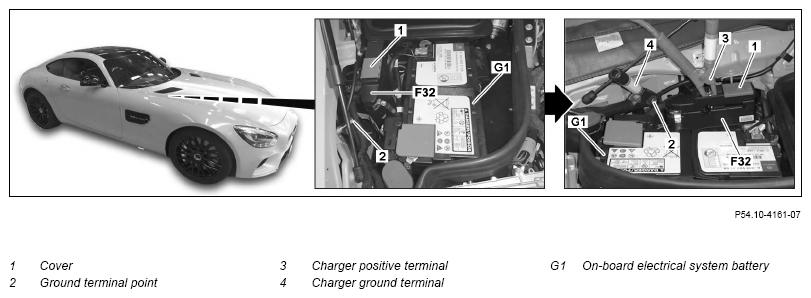

2	Slide cover (1) open	With on-board electrical system battery (G1) installed. The jump-start connection is located under the cover (1).
3.1	Connect charger positive clamp (3) to jump-start connection, then connect charger ground clamp (4) to ground point (2)	With on-board electrical system battery (G1) installed.
	000 588 00 81 00 Charger	Make sure that the vent hose and the stop plug of the on-board electrical system battery (G1) are installed correctly. Otherwise escaping battery vapors may cause damage. Do not reverse polarity. Otherwise a short circuit will cause damage.	WS54.00-P-0037B
3.2	Connect charger positive clamp (3) to positive terminal, then charger ground clamp (4) to negative terminal of on-board electrical system battery (G1)	With on-board electrical system battery (G1) removed.
	000 588 00 81 00 Charger	Do not reverse polarity. Otherwise a short circuit will cause damage.	WS54.00-P-0037B
4	Charge on-board electrical system battery (G1)
	000 588 00 81 00 Charger		WS54.00-P-0037B
		The battery charging period depends on the charge level of the on-board electrical system battery (G1). Charge the on-board electrical system battery (G1) using an approved charger only. The on-board electrical system battery (G1) is sufficiently charged when the displayed charging current is < 5 A.
5	Disconnect charger from on-board electrical system battery (G1) or from jump-start connection and ground point (2)
	000 588 00 81 00 Charger	Switch off charger beforehand. Formation of sparks can otherwise occur.	WS54.00-P-0037B
6	Close cover (1)	With on-board electrical system battery (G1) installed.
	Check
7	Check condition of on-board electrical system battery (G1)	Model 190 except code U98 (LITHIUM-IONEN-STARTERBATTERIE (LISB)) Not with active transport mode.	AR54.10-P-1129RG
