Gap Dimensions On Hoods, Doors And Lids - Ar60.00-P-0700-01LW

Model 205

Model 253

Model 293

MODIFICATION NOTES

27.04.2016	Trunk lid to bumper	Model 205.3	BE60.00-P-1014-01BB
03.05.2016	Longitudinal member trim to fender	Model 205.3	BE60.00-P-1031-01BB
29.04.2021	Front door window to rear side window	Model 205.4	BE60.00-P-1029-01BB

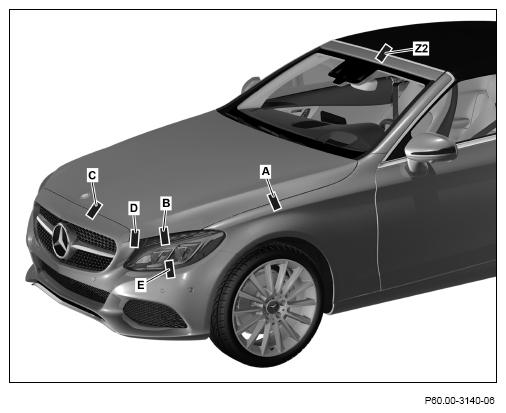

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1001-01BB	Engine hood to fender	Dimension "A"	mm	3 (±0, 5)	3 (±0, 5)
BE60.00-P-1001-01BB	Engine hood to fender	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1001-01BB	Engine hood to fender	Dimension "A"	mm	3 (±0, 5)	3 (±0, 5)
BE60.00-P-1001-01BB	Engine hood to fender	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

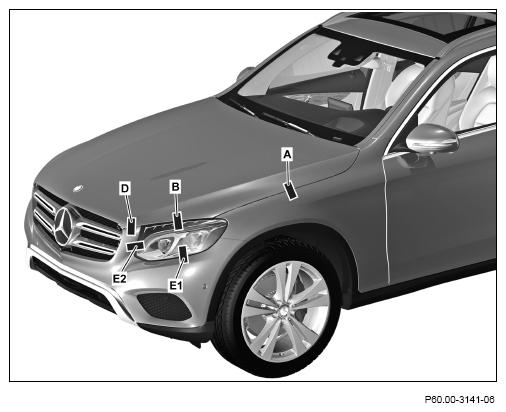

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1001-01FA	Engine hood to fender	Dimension "A"	mm	3, 0 (±0, 5)	3, 0 (±0, 5)
BE60.00-P-1001-01FA	Engine hood to fender	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1001-01OA	Engine hood to fender	Dimension "A"	mm	4 (±0, 5)
BE60.00-P-1001-01OA	Engine hood to fender	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1002-01BB	Engine hood to headlamp	Dimension "B"	mm	5, 5 (±1, 5)	5, 5 (±1, 5)
BE60.00-P-1002-01BB	Engine hood to headlamp	-		AR60.00-P-0700-01LW .	AR60.00-P-070-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1002-01BB	Engine hood to headlamp	Dimension "B"	mm	5, 5 (±1, 5)	5, 5 (±1, 5)
BE60.00-P-1002-01BB	Engine hood to headlamp	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1002-01FA	Engine hood to headlamp	Dimension "B"	mm	14, 5 (+2/-1, 5)	14, 5 (+2/-1, 5)
BE60.00-P-1002-01FA	Engine hood to headlamp	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1002-01OA	Engine hood to headlamp	Dimension "B1"	mm	6 (±1, 5)
BE60.00-P-1002-01OA	Engine hood to headlamp	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	Dimension "C"	mm	3, 5 (±1)	3, 5 (±1)
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	Dimension "C"	mm	3, 5 (±1)	3, 5 (±1)
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1003-01FA	Engine hood to bumper	Dimension "D"	mm	4, 5 (+1/-1, 5)	4, 5 (+1/-1, 5)
BE60.00-P-1003-01FA	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1003-01OA	Engine hood to bumper	Dimension "B2"	mm	2 (±1)
BE60.00-P-1003-01OA	Engine hood to bumper	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	Dimension "C"	mm	1 (±1)	1 (±1)
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	Dimension "C"	mm	1 (±1)	1 (±1)
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1004-01FA	Bumper to headlamp, bottom	Dimension "E1"	mm	2, 0 (±1)	2, 0 (±1)
BE60.00-P-1004-01FA	Bumper to headlamp, bottom	-		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1004-01OA	Radiator grille to headlamp at side	Dimension "B3"	mm	2, 5 (±1, 5)
BE60.00-P-1004-01OA	Radiator grille to headlamp at side	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1005-01BB	Engine hood to bumper	Dimension "D"	mm	4 (±1)	4 (±1)
BE60.00-P-1005-01BB	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1005-01BB	Engine hood to bumper	Dimension "D"	mm	4 (±1)	4 (±1)
BE60.00-P-1005-01BB	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1005-01FA	Bumper to headlamp, side	Dimension "E2"	mm	2, 5 (±1, 5)	2, 5 (±1, 5)
BE60.00-P-1005-01FA	Bumper to headlamp, side	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1005-01OA	Fender to headlamp, side	Dimension "B4"	mm	3 (±1)
BE60.00-P-1005-01OA	Fender to headlamp, side	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1006-01BB	Bumper to headlamp	Dimension "E"	mm	2 (±1)	2 (±1)
BE60.00-P-1006-01BB	Bumper to headlamp	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1006-01BB	Bumper to headlamp	Dimension "E"	mm	2 (±1)	2 (±1)
BE60.00-P-1006-01BB	Bumper to headlamp	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1006-01FA	Front door to fender	Dimension "G"	mm	3, 5 (+1/-0, 5)	3, 5 (+1/-0, 5)
BE60.00-P-1006-01FA	Front door to fender	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1006-01OA	Hood to continuous reflector strip	Dimension "C"	mm	6 (±1, 5)
BE60.00-P-1006-01OA	Hood to continuous reflector strip	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1007-01BB	Front door to sidewall	Dimension "H1"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1007-01BB	Front door to sidewall	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1007-01FA	Front door to rear door	Dimension "H"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1007-01FA	Front door to rear door	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1007-01OA	Hood to radiator grille	Dimension "D"	mm	7 (±1, 5)
BE60.00-P-1007-01OA	Hood to radiator grille	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1008-01BB	Front door to fender	Dimension "G"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1008-01BB	Front door to fender	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1008-01BB	Front door to fender	Dimension "G"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1008-01BB	Front door to fender	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1008-01FA	Rear door to side piece	Dimension "I"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1008-01FA	Rear door to side piece	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1008-01OA	Front door to fender	Dimension "E"	mm	4 (±0, 5)
BE60.00-P-1008-01OA	Front door to fender	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1009-01BB	Front door to rear door	Dimension "H"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1009-01BB	Front door to rear door	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1009-01FA	Front door cover to rear door cover	Dimension "J"	mm	4, 0 (+1/-0, 5)	4, 0 (+1/-0, 5)
BE60.00-P-1009-01FA	Front door cover to rear door cover	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1009-01OA	Front door to rear door	Dimension "F"	mm	4 (±0, 5)
BE60.00-P-1009-01OA	Front door to rear door	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1010-01BB	Rear door to side section, bottom	Dimension "I"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1010-01BB	Rear door to side section, bottom	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1010-01FA	Fuel filler flap	Dimension "O"	mm	2, 0 (±0, 5)	2, 0 (±0, 5)
BE60.00-P-1010-01FA	Fuel filler flap	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1010-01OA	Rear door to side piece	Dimension "G"	mm	3, 5 (±0, 5)
BE60.00-P-1010-01OA	Rear door to side piece	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1011-01BB	Front door cover to rear door cover	Dimension "J"	mm	4 (+1)	4 (+1)
BE60.00-P-1011-01BB	Front door cover to rear door cover	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1011-01FA	Rear side window to rear triangular window	Dimension "P"	mm	5, 5 (±1, 5)	5, 5 (±1, 5)
BE60.00-P-1011-01FA	Rear side window to rear triangular window	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1011-01OA	Front door cover to rear door cover	Dimension "H"	mm	4 (-0, 5+1)
BE60.00-P-1011-01OA	Front door cover to rear door cover	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.3

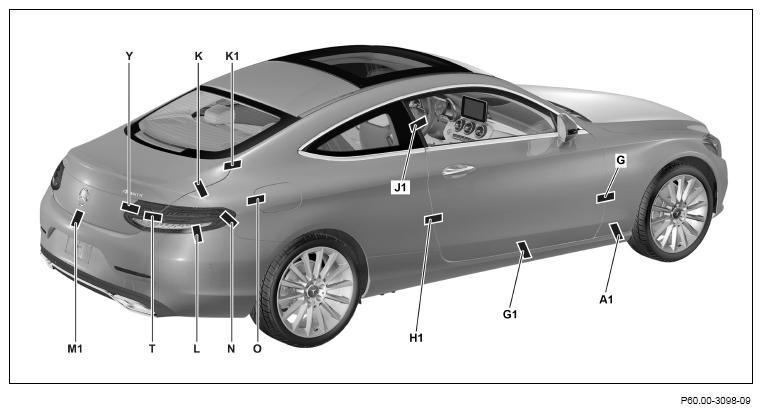

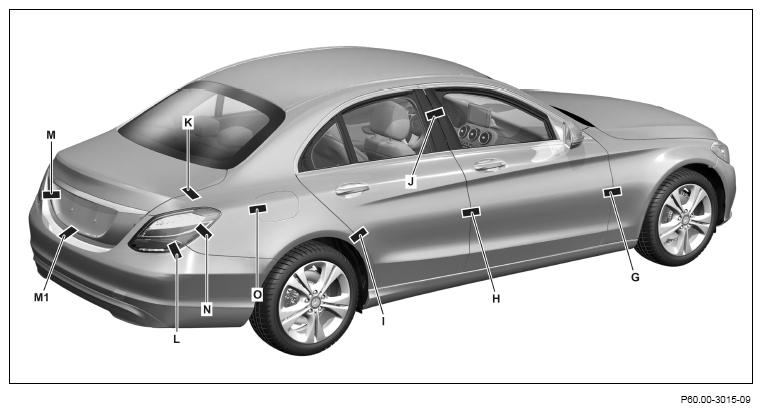

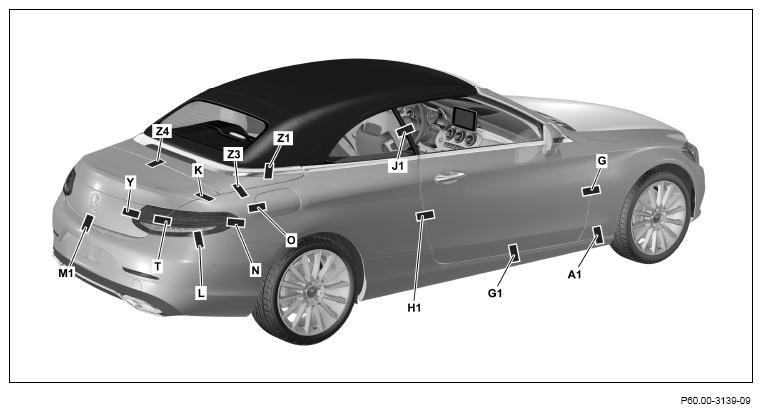

BE60.00-P-1012-01BB	Trunk lid to fender at rear, top	Dimension "K"	mm	3, 5 (+0, 5/-1)	3, 5 (±1)
		Dimension "K1"	mm	-	4 (+1, 5/-1)
		For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1012-01BB	Trunk lid to fender at rear, top	Dimension "K"	mm	3, 5 (±0, 5)
		Dimension "K1"	mm	-
		For picture, see		AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.1/9

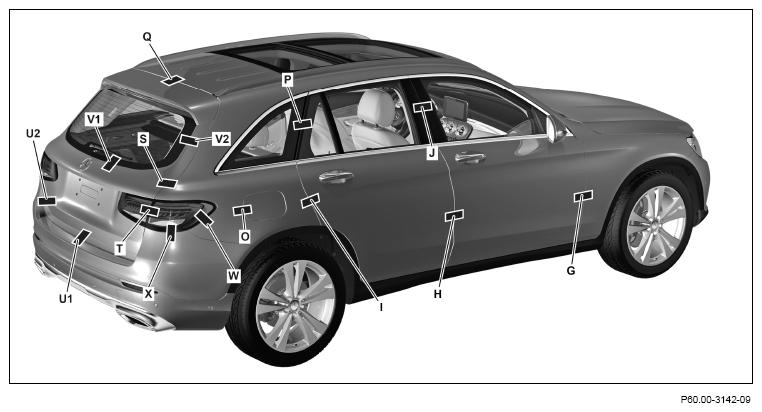

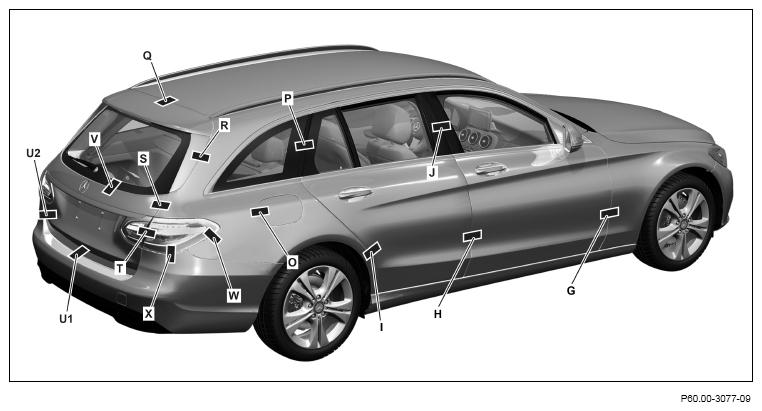

BE60.00-P-1012-01FA	Roof to rear spoiler/liftgate	Dimension "Q"	mm	4, 5 (±1, 5)
BE60.00-P-1012-01FA	Roof to rear spoiler/liftgate	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1012-01OA	Rear side window to rear triangular window	Dimension "I"	mm	4, 5 (±1, 5)
BE60.00-P-1012-01OA	Rear side window to rear triangular window	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.3
BE60.00-P-1013-01BB	Taillamp to bumper	Dimension "L"	mm	1 (±1)	2 (±1)
BE60.00-P-1013-01BB	Taillamp to bumper	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1013-01BB	Taillamp to bumper	Dimension "L"	mm	2 (±1)
BE60.00-P-1013-01BB	Taillamp to bumper	For picture, see		AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.1/9

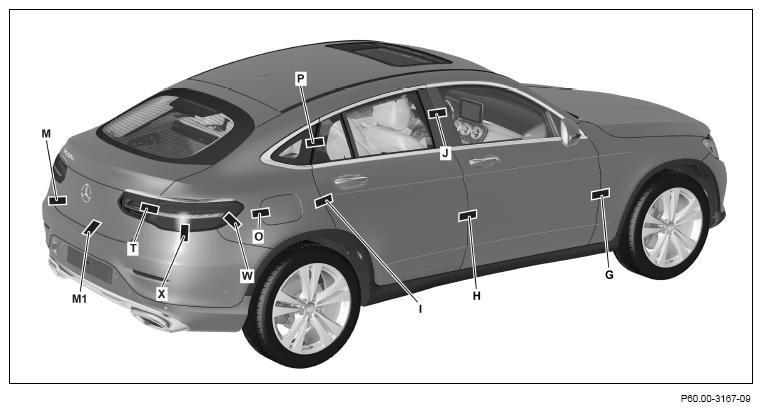

BE60.00-P-1013-01FA	Sidewall to liftgate	Dimension "S"	mm	4, 0 (±1, 5)
BE60.00-P-1013-01FA	Sidewall to liftgate	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1013-01OA	Fuel filler flap	Dimension "J"	mm	2 (±0, 5)
BE60.00-P-1013-01OA	Fuel filler flap	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.3
BE60.00-P-1014-01BB	Trunk lid to bumper	Dimension "M"	mm	3, 5 (±1)	-
		Dimension "M1"	mm	5, 5 (±1)	5, 5 (±1)
		For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1014-01BB	Trunk lid to bumper	Dimension "M"	mm	-
		Dimension "M1"	mm	5, 5 (±1)
		For picture, see		AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1014-01FA	Outside of taillamp to inside of taillamp	Dimension "T"	mm	3, 5 (+1, 5/-1)	3, 5 (+1, 5/-1)
BE60.00-P-1014-01FA	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1014-01OA	Roof to rear spoiler/liftgate	Dimension "K"	mm	4, 5 (±1, 5)
BE60.00-P-1014-01OA	Roof to rear spoiler/liftgate	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.3
BE60.00-P-1015-01BB	Rear fender to taillamp	Dimension "N"	mm	1 (±1)	1 (±1)
BE60.00-P-1015-01BB	Rear fender to taillamp	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1015-01BB	Rear fender to taillamp	Dimension "N"	mm	1 (±1)
BE60.00-P-1015-01BB	Rear fender to taillamp	For picture, see		AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1015-01FA	Center of liftgate to rear bumper	Dimension "U1"	mm	-	5, 5 (±1, 5)
		Dimension "M1"	mm	6, 0 (±1, 5)	-
		For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1015-01OA	Side piece to rear spoiler/liftgate	Dimension "L1"	mm	3, 5 (-0, 5/+1)
		Dimension "L2"	mm	3, 5 (±1)
		-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1016-01BB	Fuel filler flap	Dimension "O"	mm	2 (±0, 5)	2 (±0, 5)
BE60.00-P-1016-01BB	Fuel filler flap	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1016-01BB	Fuel filler flap	Dimension "O"	mm	2 (±0, 5)	2 (±0, 5)
BE60.00-P-1016-01BB	Fuel filler flap	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1016-01FA	Outside of liftgate to rear bumper	Dimension "U2"	mm	-	3, 5 (±1)
		Dimension "M"	mm	3, 5 (+1, 5/-1)	-
		For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1016-01OA	Center of liftgate to rear bumper	Dimension "M1"	mm	5, 5 (±1, 5)
BE60.00-P-1016-01OA	Center of liftgate to rear bumper	-		-

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.1/9
BE60.00-P-1017-01FA	Liftgate to rear window, bottom	Dimension "V1"	mm	2, 0 (±1)
BE60.00-P-1017-01FA	Liftgate to rear window, bottom	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1017-01OA	Outside of liftgate to rear bumper	Dimension "M2"	mm	5, 5 (±1)
BE60.00-P-1017-01OA	Outside of liftgate to rear bumper	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1018-01BB	Rear side window to rear triangular window	Dimension "P"	mm	5, 5 (±0, 8)
BE60.00-P-1018-01BB	Rear side window to rear triangular window	For picture, see		AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.1/9
BE60.00-P-1018-01FA	Liftgate to rear window, side	Dimension "V2"	mm	2, 5 (+1, 5/-1)
BE60.00-P-1018-01FA	Liftgate to rear window, side	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1018-01OA	Liftgate side piece to rear bumper	Dimension "M3"	mm	3, 5 (-0, 5/+1)
BE60.00-P-1018-01OA	Liftgate side piece to rear bumper	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1019-01BB	Roof to rear spoiler	Dimension "Q"	mm	4, 6 (±1, 4)
BE60.00-P-1019-01BB	Roof to rear spoiler	For picture, see		AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1019-01FA	Outer taillamp to sidewall, bottom	Dimension "W"	mm	1, 0 (+1/-0, 5)	1, 0 (+1/-0, 5)
BE60.00-P-1019-01FA	Outer taillamp to sidewall, bottom	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1019-01OA	Liftgate to rear window, bottom	Dimension "N1"	mm	3, 0 (±1, 5)
BE60.00-P-1019-01OA	Liftgate to rear window, bottom	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1020-01BB	Sidewall to rear spoiler	Dimension "R"	mm	4, 0 (±1, 3)
BE60.00-P-1020-01BB	Sidewall to rear spoiler	For picture, see		AR60.00-P-0700-01LW .

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 253.3	Model 253.1/9
BE60.00-P-1020-01FA	Outside of taillamp to bumper	Dimension "X"	mm	2, 0 (±1)	1, 5 (±1)
BE60.00-P-1020-01FA	Outside of taillamp to bumper	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1020-01OA	Liftgate to rear window, side	Dimension "N2"	mm	2, 5 (±1, 0)
BE60.00-P-1020-01OA	Liftgate to rear window, side	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1021-01BB	Sidewall to liftgate	Dimension "S"	mm	3, 5 (±0, 8)
BE60.00-P-1021-01BB	Sidewall to liftgate	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1021-01OA	Outside of taillamp to inside of taillamp	Dimension "O"	mm	4, 5 (-1/+1, 5)
BE60.00-P-1021-01OA	Outside of taillamp to inside of taillamp	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2	Model 205.3
BE60.00-P-1022-01BB	Outside of taillamp to inside of taillamp	Dimension "T"	mm	3, 8 (±1, 0)	3, 5 (±1)
BE60.00-P-1022-01BB	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1022-01BB	Outside of taillamp to inside of taillamp	Dimension "T"	mm	3, 5 (±1)
BE60.00-P-1022-01BB	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1022-01OA	Outer taillamp to sidewall, bottom	Dimension "P"	mm	1, 5 (-1/+0, 5)
BE60.00-P-1022-01OA	Outer taillamp to sidewall, bottom	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1023-01BB	Center of liftgate to rear bumper	Dimension "U1"	mm	5, 5 (±1, 5)
BE60.00-P-1023-01BB	Center of liftgate to rear bumper	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1023-01OA	Outside of taillamp to bumper	Dimension "Q"	mm	2, 0 (±1, 5)

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1024-01BB	Outside of liftgate to rear bumper	Dimension "U2"	mm	3, 8 (±1, 0)
BE60.00-P-1024-01BB	Outside of liftgate to rear bumper	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1024-01OA	Top continuous reflector strip to liftgate	Dimension "R"	mm	1 (±1)
BE60.00-P-1024-01OA	Top continuous reflector strip to liftgate	-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1025-01BB	Liftgate to rear window	Dimension "V"	mm	2, 5 (±1, 0)
BE60.00-P-1025-01BB	Liftgate to rear window	For picture, see		AR60.00-P-0700-01LW .

GAP DIMENSIONS

Number	Designation			Model 293
BE60.00-P-1025-01OA	Bottom continuous reflector strip to liftgate	Dimension "S1"	mm	1, 5 (-0, 5/+1)
		Dimension "S2"	mm	2, 5 (±1, 0)
		-		-

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1026-01BB	Sidewall to outside of taillamp at bottom	Dimension "W"	mm	1, 0 (±0, 7)
BE60.00-P-1026-01BB	Sidewall to outside of taillamp at bottom	For picture, see		AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.2
BE60.00-P-1027-01BB	Outside of taillamp to bumper	Dimension "X"	mm	1, 3 (±1, 0)
BE60.00-P-1027-01BB	Outside of taillamp to bumper	For picture, see		AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1028-01BB	Taillamp to trunk lid	Dimension "Y"	mm	1 (+1, 5/-1)	1 (+1, 5/-1)
BE60.00-P-1028-01BB	Taillamp to trunk lid	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1029-01BB	Front door window to rear side window	Dimension "J1"	mm	11 (±1)	13, 5 (±0, 5)
BE60.00-P-1029-01BB	Front door window to rear side window	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1030-01BB	Longitudinal member panel to front door	Dimension "G1"	mm	5, 5 (±1)	5, 5 (±1)
BE60.00-P-1030-01BB	Longitudinal member panel to front door	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1031-01BB	Longitudinal member trim to fender	Dimension "A1"	mm	4, 5 (±1)	4, 5 (±1)
BE60.00-P-1031-01BB	Longitudinal member trim to fender	For picture, see		AR60.00-P-0700-01LW .	AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1032-01BB	Soft top to soft top compartment lid	Dimension "Z1"	mm	4 (+1, 5/-1)
BE60.00-P-1032-01BB	Soft top to soft top compartment lid	For picture, see		AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1033-01BB	Soft top to windshield frame	Dimension "Z2"	mm	5, 5 (±1, 5)
BE60.00-P-1033-01BB	Soft top to windshield frame	For picture, see		AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1034-01BB	Soft top compartment lid to rear fender	Dimension "Z3"	mm	3 (+1/-0, 5)
BE60.00-P-1034-01BB	Soft top compartment lid to rear fender	For picture, see		AR60.00-P-0700-01LW .

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1035-01BB	Soft top compartment lid to trunk lid	Dimension "Z4"	mm	5 (±0, 5)
BE60.00-P-1035-01BB	Soft top compartment lid to trunk lid	For picture, see		AR60.00-P-0700-01LW .

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Model 205 front gap dimensions, shown on model 205.4

Courtesy of MERCEDES-BENZ USA

Model 253 front gap dimensions

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Model 205.0/1 rear and side gap dimensions

Courtesy of MERCEDES-BENZ USA

Model 205.2 rear and side gap dimensions

Courtesy of MERCEDES-BENZ USA

Model 205.3 rear and side gap dimensions

Courtesy of MERCEDES-BENZ USA

Model 205.4 rear and side gap dimensions

Courtesy of MERCEDES-BENZ USA

Model 253.1/9 rear and side gap dimensions

Courtesy of MERCEDES-BENZ USA

Model 253.3 rear and side gap dimensions

Check gap dimensions on hoods, doors and covers with feeler gauge as shown in drawings.
Adjust hoods, door and cover as shown in drawing. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
