Remove Spare Tire Well - Ar64.20-P-1245-01LWG

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

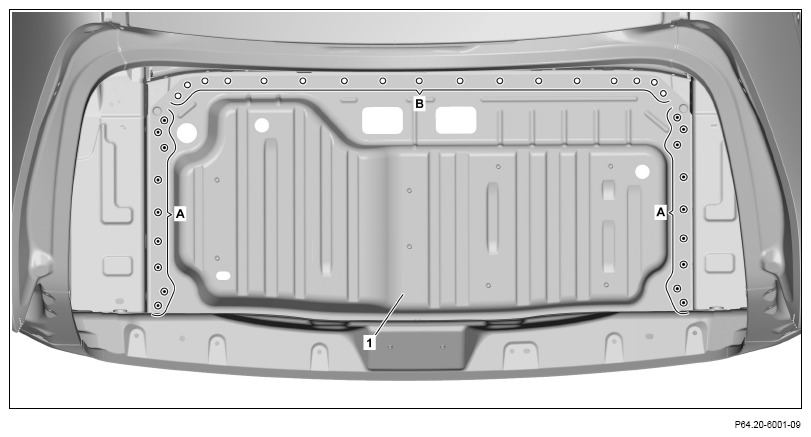

1. Expose spot welds on spare wheel well (1) and cut off (area A).
2. Expose self-piercing riveting on spare wheel well (1) and drill with Ø 6 mm bit (area B).

   Courtesy of MERCEDES-BENZ USA

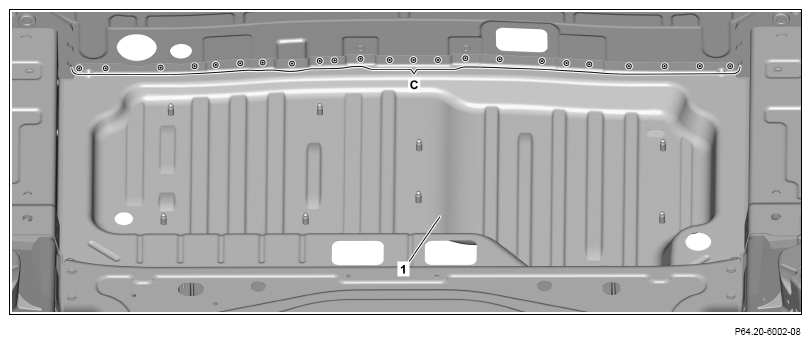

3. Expose spot welds on spare wheel well (1) and cut out (areas C).

   Courtesy of MERCEDES-BENZ USA

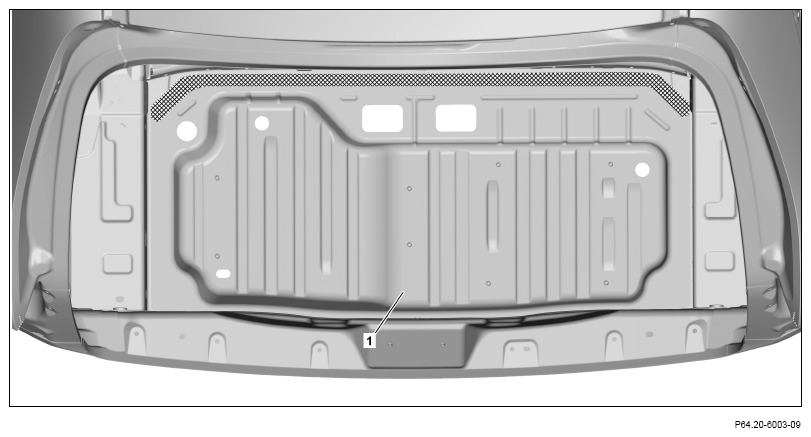

4. Heat spare wheel well (1) in crosshatched area.

   Cross-hatched area is bonded.

5. Remove spare wheel well (1).

   Courtesy of MERCEDES-BENZ USA

6. Grind mating surfaces down to bare metal in cross-hatched areas.
7. Remove grinding dust and drill chips.

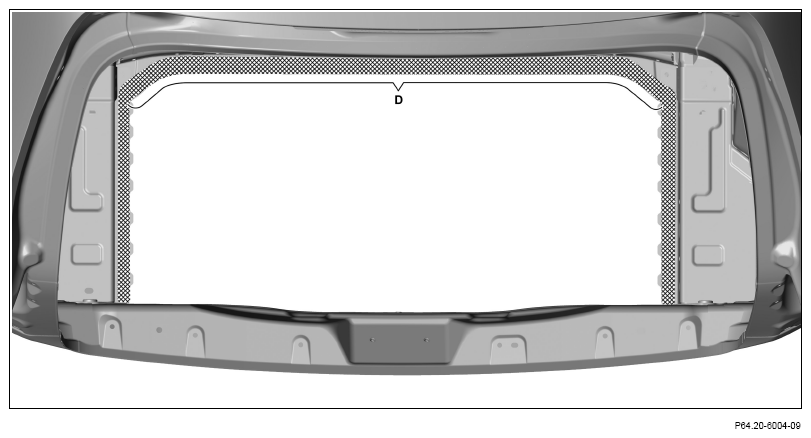

   Observe pretreatment of bonding surface (area D).

   Courtesy of MERCEDES-BENZ USA

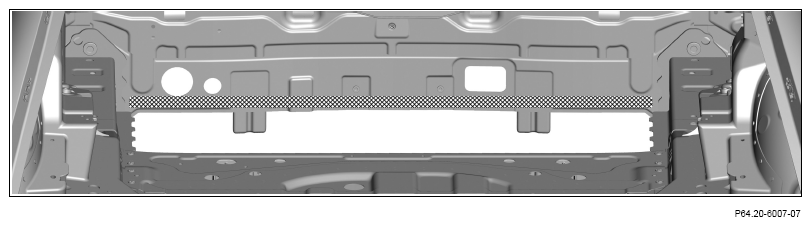

8. Grind mating surface down to bare metal in cross-hatched area on both sides.
9. Remove grinding dust and drill chips.
10. Apply zinc dust paint to inside of spot weld flange.
