Remove Rear Longitudinal Member Mounting Bracket - Ar64.20-P-0120-01LWG

Model 253, 293

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

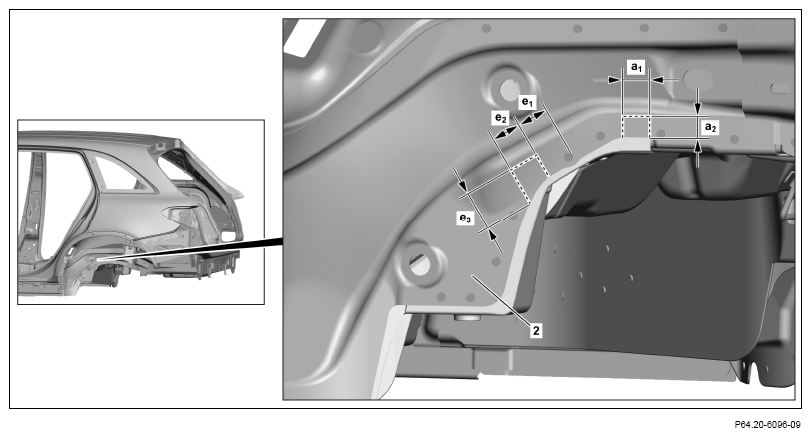

1. Mark separating points for window cuts on end plate (2) and cut.

   Dimensions  :

   a₁ = approx 27 mm

   a₂ = approx 17 mm

   e₁ = approx 35 mm

   e₂ = approx 30 mm

   e₃ = approx 43 mm

2. Drill previously covered self-piercing riveting below end plate (2) with Ø 6 mm bit.

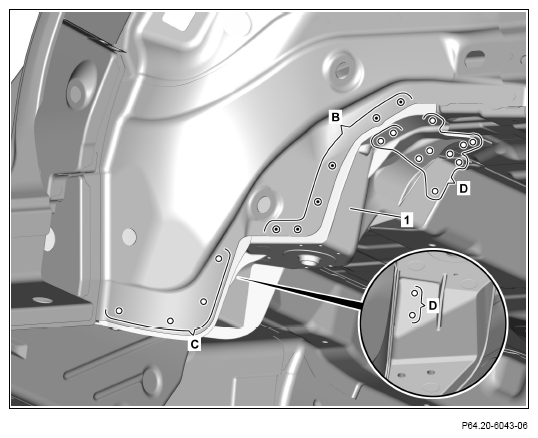

3. Expose Impact nails on mounting console (1) and cut out (area B).
4. Expose self-piercing riveting on mounting support (1) and drill out with a diameter of 6 mm (area C and D).

   The self-piercing rivets can also be separated with a riveter for self-piercing and flow-form rivets (area C).

   Courtesy of MERCEDES-BENZ USA

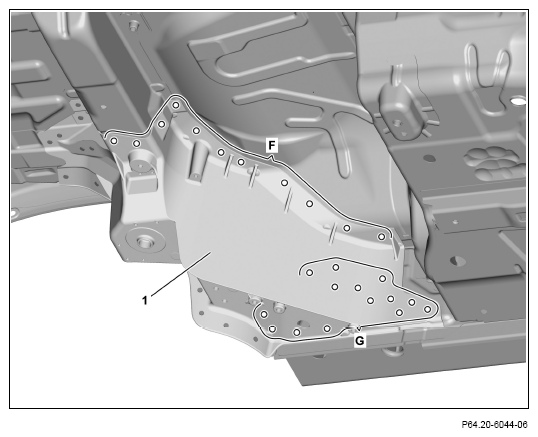

5. Drill self-piercing riveting on mounting support (1) and drill out with a diameter of 6 mm (area F and G).

   Courtesy of MERCEDES-BENZ USA

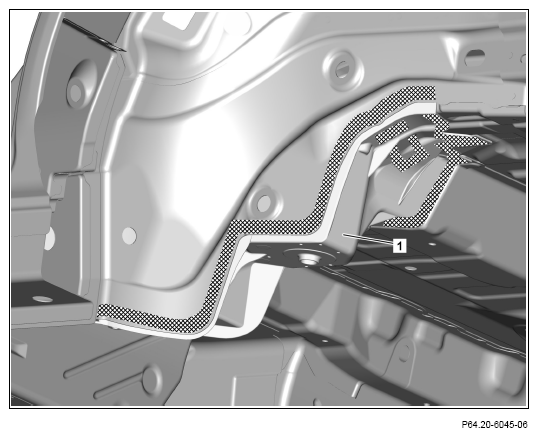

6. Heat mounting console (1) in crosshatched area.

   Cross-hatched areas are bonded with adhesive.

   Courtesy of MERCEDES-BENZ USA

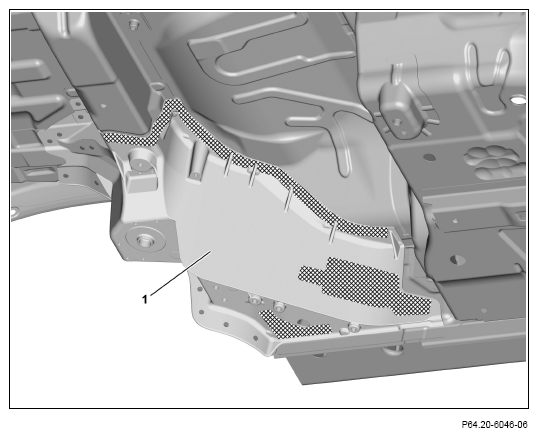

7. Heat mounting console (1) in crosshatched area.

   Cross-hatched areas are bonded with adhesive.

8. Remove mounting console (1).

   Courtesy of MERCEDES-BENZ USA

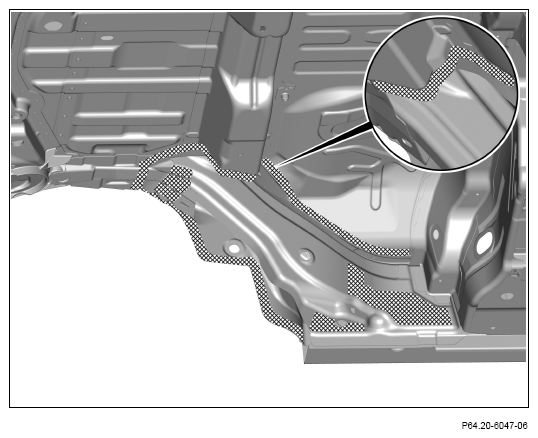

9. Grind mating surfaces down to bare metal in cross-hatched areas.
10. Remove grinding dust and drill chips.

    Observe pretreatment of bonding surfaces.
