Prepare Rear Longitudinal Member Mounting Bracket For Installation - Ar64.20-P-0120-02LWG
Model 253
Model 293
The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

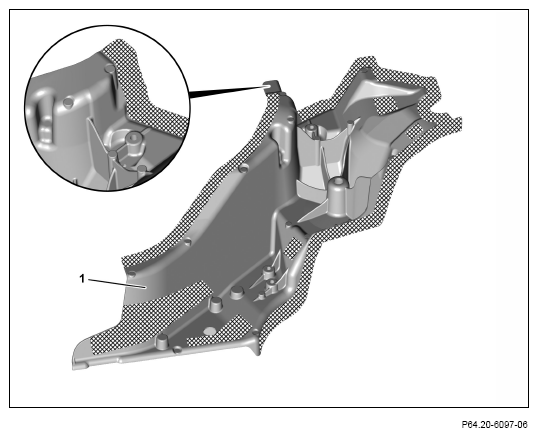

- Grind mating surfaces on mounting support (1) down to bare metal in cross-hatched areas.
- Remove grinding dust.
Observe pretreatment of bonding surfaces.
