Install Spare Tire Well - Ar64.20-P-1245-03LWG

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

1. Install spare wheel well (1), fit and fix in place
2. Drill rivet holes in spare wheel well (1) with 6.7 mm bit (areas A and B).

   Drill rivet holes from bottom through present holes in body (area B).

3. Remove spare wheel well (1).
4. Deburr rivet holes on spare wheel well (1) and body on both sides.
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint (area A).

   Courtesy of MERCEDES-BENZ USA

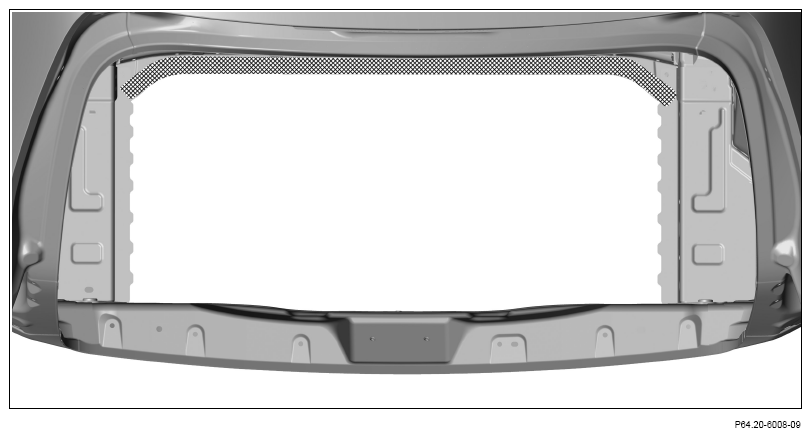

7. Apply 2-component adhesive to crosshatched area of body.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

8. Install spare wheel well (1) and fix in place.

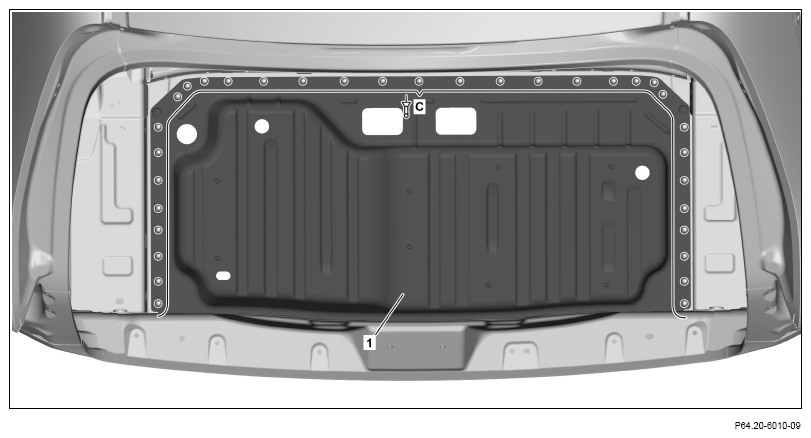

9. Rivet spare wheel well (1) with Ø 6.5x12.5 rivets (area C).

   Courtesy of MERCEDES-BENZ USA

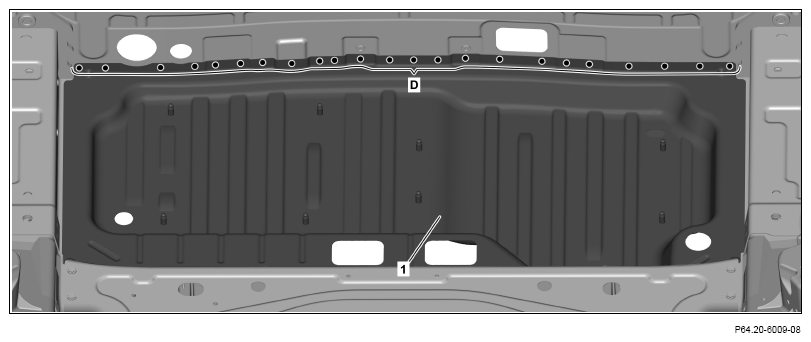

10. Spare wheel well (1) (area D).
