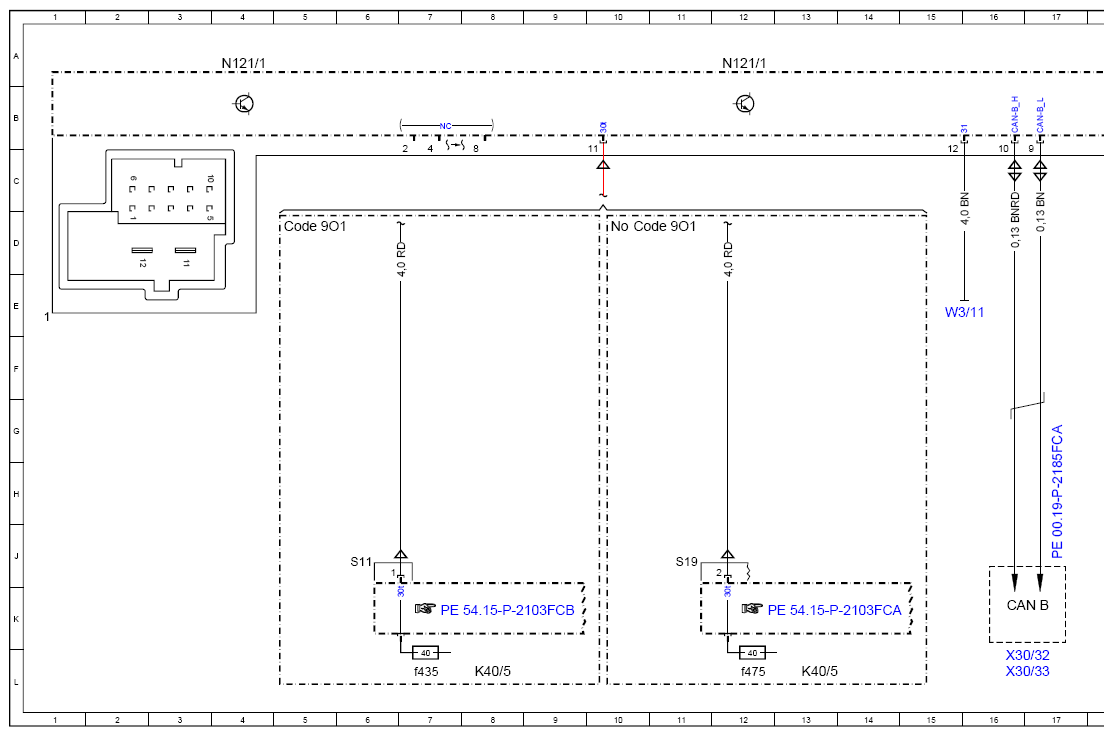

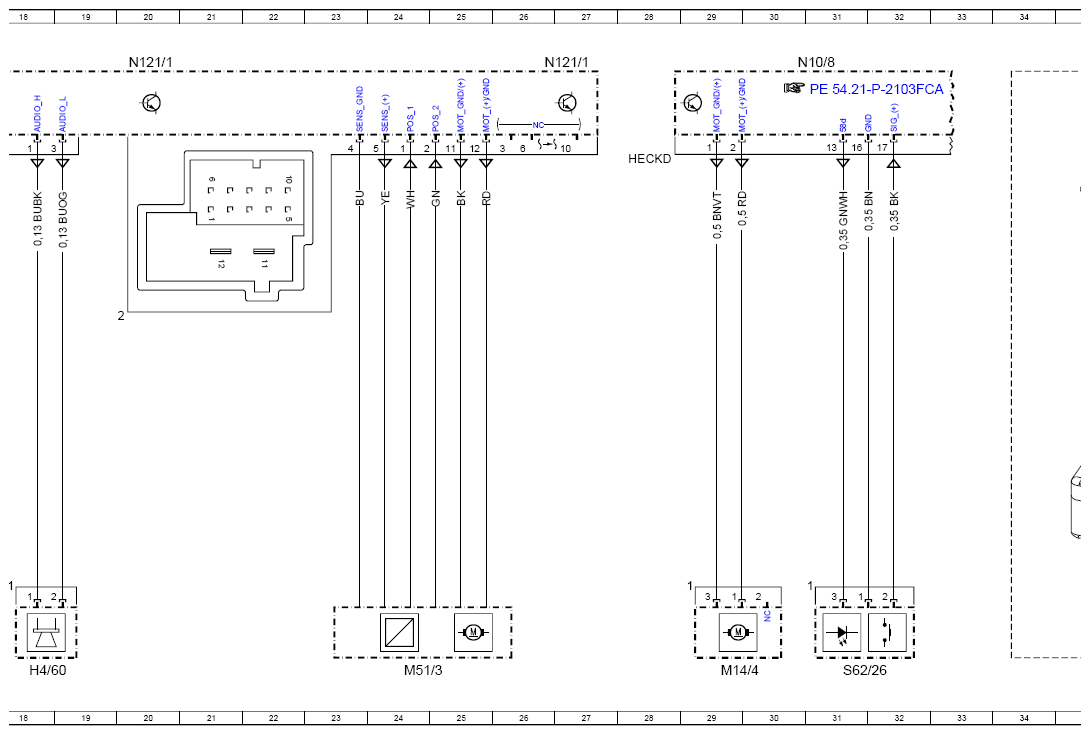

Wiring Diagram For Liftgate Control Unit - PE72.20-P-2104-97FCA
Model 253 (except 253.99) as of model year 2020
with code 890 (Automatic rear-end door)
Control unit N121/1
Model 253.99 as of model year 2019
with code 890 (Automatic rear-end door)
with code 9O1 (Fuel cell pre-installation)
Control unit N121/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| CAN B | Interior CAN | 16K |
| Code 9O1 | Fuel cell retrofitting | 10D |
| Code 9O1 | Fuel cell retrofitting | 5D |
| H4/60 | Trunk lid/liftgate control warning buzzer | 18L |
| K40/5 | Rear fuse and relay module | 8L |
| K40/5 | Rear fuse and relay module | 13L |
| K40/5f435 | Fuse 435 | 7L |
| K40/5f475 | Fuse 475 | 12L |
| M14/4 | Tailgate locking element | 29L |
| M51/3 | Trunk lid/liftgate control drive unit | 24L |
| N10/8 | Rear SAM control unit | 31A |

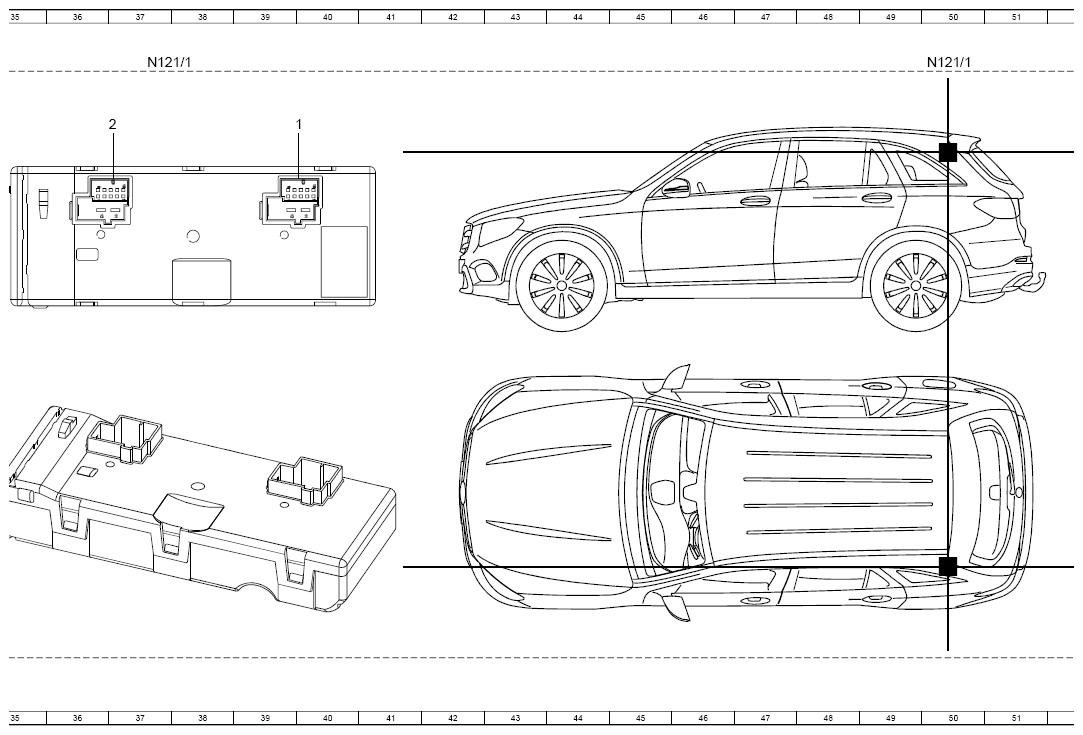

| N121/1 | Tailgate control control unit | 4A |
| N121/1 | Tailgate control control unit | 12A |
| N121/1 | Tailgate control control unit | 20A |
| N121/1 | Tailgate control control unit | 27A |
| N121/1 | Tailgate control control unit | 37A |
| N121/1 | Tailgate control control unit | 50A |
| S62/26 | Trunk lid/liftgate control button | 31L |
| W3/11 | Left rear wheel well ground point | 15E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 16L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 16L |
