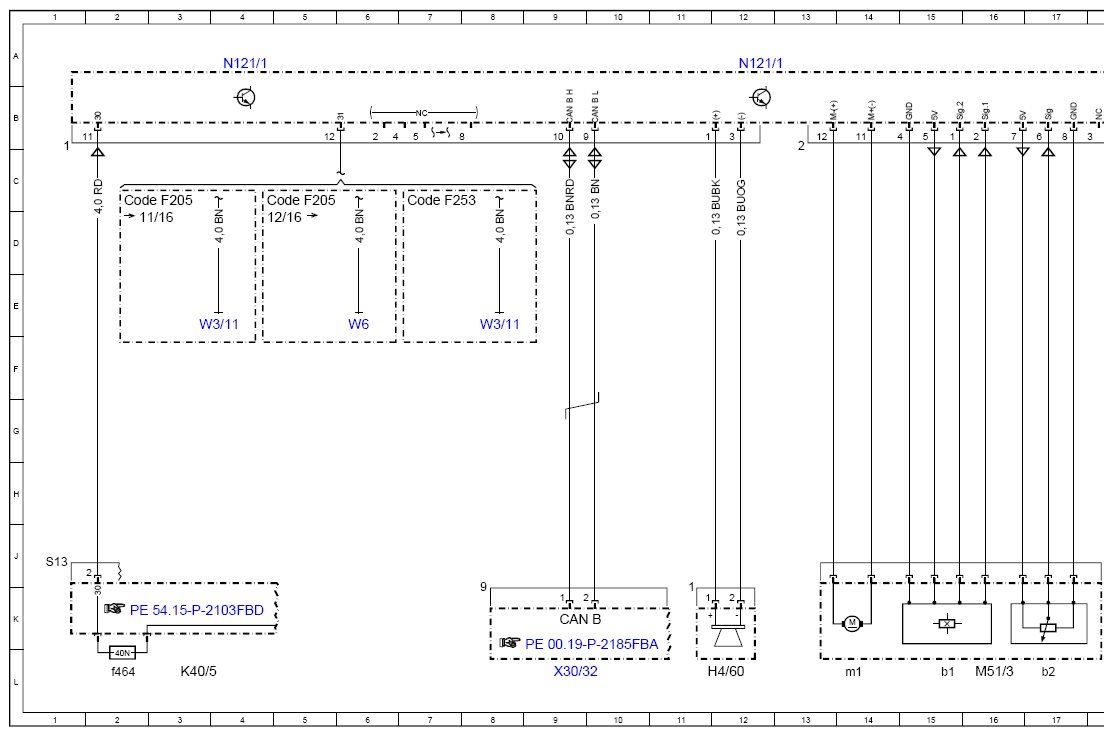

Wiring Diagram For Liftgate Control Unit - PE72.20-P-2104-97FBA
Model 205 up to model year 2019 with code 890 (EASY-PACK-tailgate)
Control unit N121/1
Model 253 (except 253.99) up to model year 2020
Control unit N121/1
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 23L |
| CAN B | Interior CAN | 9K |
| Code F205 | MODEL SERIES 205 | 4C |
| Code F205 | MODEL SERIES 205 | 2C |
| Code F253 | MODEL SERIES 253 | 7C |
| H4/60 | Trunk lid/liftgate control warning buzzer | 12L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f464 | Fuse 464 | 2L |
| M51/3 | Trunk lid/liftgate control drive unit | 16L |
| M51/3b1 | Trunk lid/liftgate control Hall sensor | 15L |
| M51/3b2 | Trunk lid/liftgate control position sensor | 17L |
| M51/3m1 | Trunk lid/liftgate control electric motor | 14L |
| N121/1 | Tailgate control control unit | 12A |
| N121/1 | Tailgate control control unit | 4A |
| N121/1 | Tailgate control control unit | 18A |
| W3/11 | Left rear wheel well ground point | 3E |
| W3/11 | Left rear wheel well ground point | 8E |
| W6 | Left wheel arch trunk ground point | 6E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 9L |
