Remove/Install Switches For Rear Door Power Windows - AR72.29-P-0002LW

Model 205.0/1/2

Model 253

Model 293

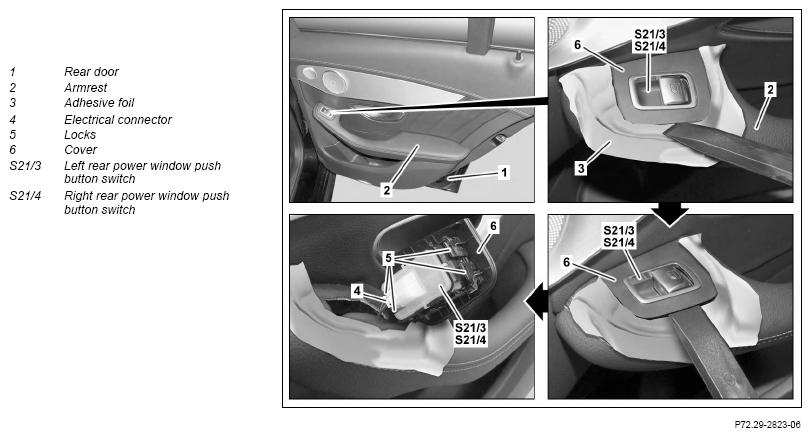

Shown on right rear door on MODEL 205.0

Courtesy of MERCEDES-BENZ USA

	Remove
1	Attach adhesive film (3), as shown, to armrest (2) of rear door (1).	The adhesive foil (3) must be installed flush in relation to the cover (6). Armrest (2) can otherwise be damaged during removal of left rear power window push button switch (S21/3) and/or right rear power window push button switch (S21/4).
2	Insert disassembly tool from rear at side at an angle of 45° to left rear power window push button switch (S21/3) or right rear power window push button switch (S21/4).	Angle of disassembly tool to surface of armrest (2) should be approx. 45° at time of insertion. Dismantling tool	Fig 1
3	Turn disassembly tool through 45° so that this is located at an angle of 90° to left rear power window push button switch (S21/3) or right rear power window push button switch (S21/4).	Dismantling tool	Fig 1
4	Release left rear power window push button switch (S21/3) and/or right rear power window push button switch (S21/4) with cover (6) from armrest (2) by means of a lever movement.	Dismantling tool	Fig 1
5	Disconnect electrical connection (4).
6	Release locks (5) and remove left rear power window push button switch (S21/3) or right rear power window push button switch (S21/4) from cover (6).
	Install
7	Install left rear power window push button switch (S21/3) or right rear power window push button switch (S21/4) in cover (6).
8	Connect electrical connector (4).
9	Install left rear power window push button switch (S21/3) or right rear power window push button switch (S21/4) with cover (6) in armrest (2).
	Check
10	Carry out operational check.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
