Remove/Install Hinge Of Liftgate - AR72.20-P-2656LWX

Model 253.3

Courtesy of MERCEDES-BENZ USA

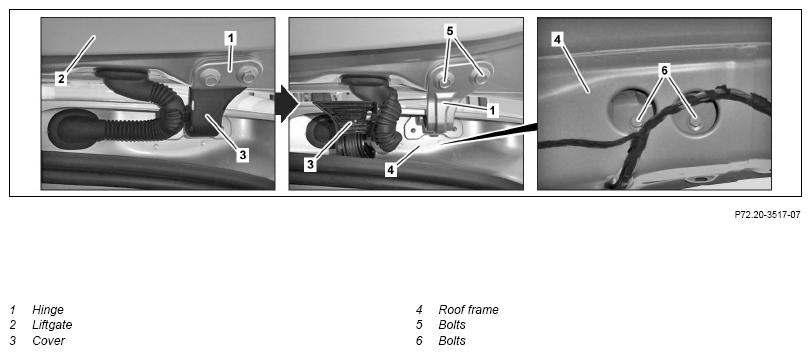

Shown on right side of vehicle

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing	Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO)	AH80.61-P-0001-01A
	Remove/install
1	Remove headliner		AR68.30-P-4300LWS
2	Unclip cover from outside of roof frame above hinge (1), and remove
3	Secure liftgate (2) with support	Support	Fig 1
4	Remove cover (3) with electrical wiring harness from hinge (1)
5	Mark installation position of hinge (1) on roof frame (4) and liftgate (2)
6	Unscrew bolts (5) from liftgate (2)	Only remove hinges (1) individually, with liftgate (2) installed and support attached . If both hinges (1) are to be removed, the second hinge (1) should only be removed after installing the first hinge (1). Otherwise the liftgate (2) may be damaged. Only tighten bolts (5) when adjusting liftgate (2). Only repair paint damage around bolts (5) after adjusting liftgate (2).
7	Unscrew bolts (6) from roof frame (4) and remove hinge (1)	Align hinge (1) with markings made previously. Bolt, hinge for liftgate to roof frame	*BA72.20-P-1001-02N
8	Install in the reverse order
	Adjust
9	Adjust liftgate (2)		AR72.20-P-0002LWX

LIFTGATE

Number	Designation		Model 253
BA72.20-P-1001-02N	Bolt, hinge for liftgate to roof frame	Nm	40

Fig 1: Identifying Support (170 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
