Remove/Install Electric Trunk Lid/Liftgate Closing Assist Motor/Control Lock Element- AR72.30-P-0001LW
Model 205.2
with code 890 (EASY-PACK-tailgate)
Model 213.2
with code 890 (EASY-PACK-tailgate)
Model 253
with code 890 (EASY-PACK-tailgate)

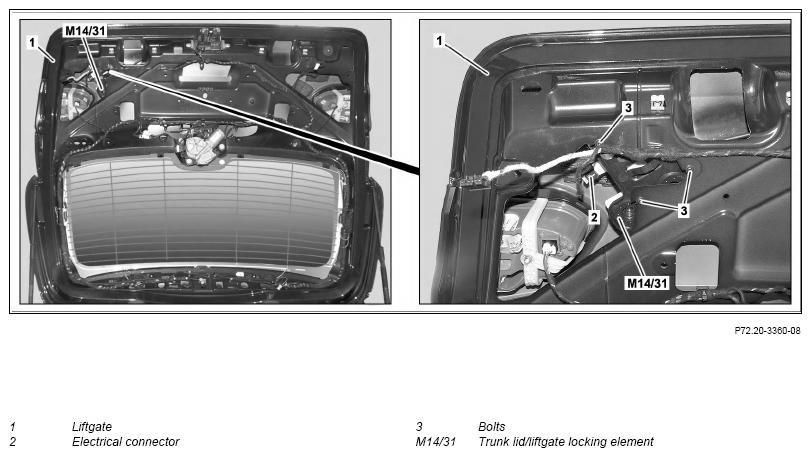

Fig 1: Electric Trunk Lid/Liftgate Closing Assist Motor/Control Lock Element Components Location - Model 253 With Code 890 (Shown On Model 205.2)
Shown on MODEL 205.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 205.2 with code 890 (EASY-PACK-tailgate) with code P17 (KEYLESS-GO package) Model 213.2 with code 890 (EASY-PACK-tailgate) with code P17 (KEYLESS-GO package) Model 253 with code 871 (HANDS-FREE ACCESS) |
AH80.61-P-0001-01A | |
| with code 889 (KEYLESS-GO) with code 890 (EASY-PACK-tailgate) |
|||
| Remove/install | |||
| 1 | Remove center liftgate paneling | AR72.20-P-6618LWS | |
| 2 | Disconnect electrical connector (2) | ||
| 3 | Remove wire from trunk lid/liftgate lock | ||
| 4 | Loosen bolts (3) until trunk lid/liftgate control lock element (M14/31) can be removed | ||
| 5 | Move trunk lid/liftgate control lock element (M14/31) out of liftgate (1) and remove | ||
| 6 | Install in the reverse order |
