Remove/Install Driver Door Power Window Switch - AR72.29-P-0101LW

Model 205

Model 238

Model 253

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.3 with code P29 (AMG Line Interior)

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

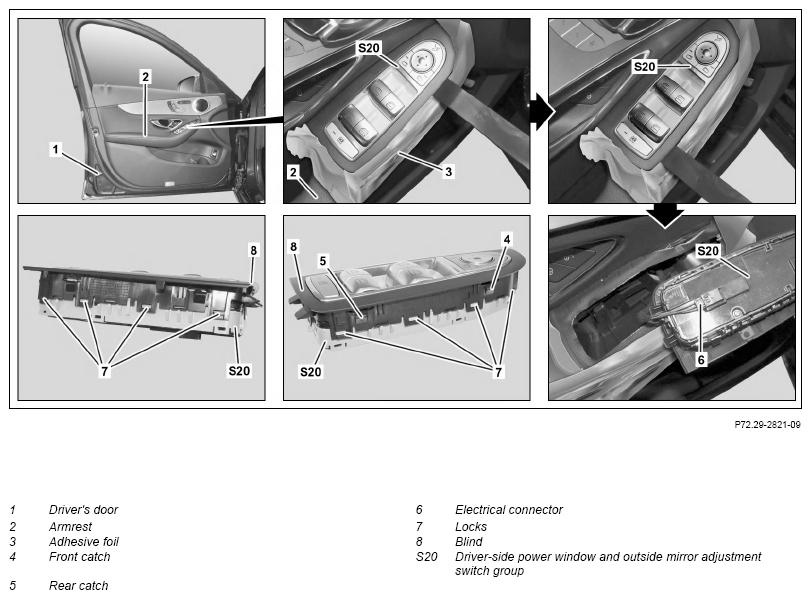

1	Attach adhesive film (3) to armrest (2) of driver's door (1).	Attach adhesive (3) on armrest (2) in contact area of tool flush to cover (8) of driver side outside mirror adjustment power window switch group (S20). Otherwise the armrest (2) can be damaged when removing the driver side outside mirror adjustment power window switch group (S20).
2	Release door lining (10) at driver's door (1) and carefully set down.	Model 205.3 with code 901 (Interior chrome package) except code P29 (AMG Line interior) Model 205.3 with code P29 (AMG Line interior) except code 901 (Interior chrome package) Do not remove door lining (10) completely	AR72.10-P-1000LW

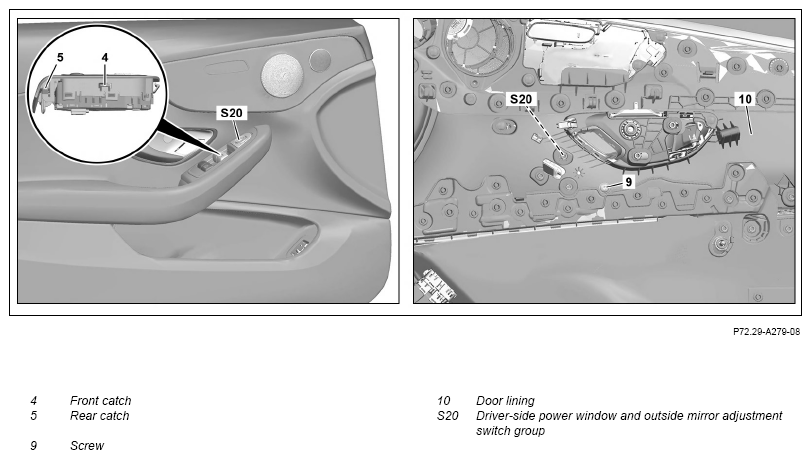

3	Place damping to one side and unscrew screw (9) at inside of door lining (10).	Model 205.3 with code 901 (Interior chrome package) except code P29 (AMG Line interior) Model 205.3 with code P29 (AMG Line interior) except code 901 (Interior chrome package)
4	Insert disassembly tool in area of front detent (4) at an angle of 90° to the driver's side power window and outside mirror adjustment switch group (S20) and position.	Angle of disassembly tool to surface of armrest (2) must be approx. 45° at point in time of insertion.
		Dismantling tool	Fig 1
5	Unclip front detent (4) from armrest (2).	Dismantling tool	Fig 1
6	Insert disassembly tool in area of rear detent (5) at an angle of 90° to the driver's side power window and outside mirror adjustment switch group (S20) and position.	Angle of disassembly tool to surface of armrest (2) must be approx. 45° at point in time of insertion.
		Dismantling tool	Fig 1
7	Unclip rear detent (5) from armrest (2).	Dismantling tool	Fig 1
8	Remove driver's side power window and outside mirror adjustment switch group (S20) with trim (8) from armrest (2).
9	Release and disconnect electrical connector (6).
10	Release locks (7) and remove driver's side power window and outside mirror adjustment switch group (S20) from trim (8).	Only when replacing driver side outside mirror adjustment power window switch group (S20).
	Install
11	Insert driver's side power window and outside mirror adjustment switch group (S20) into trim (8) and lock.	Only when replacing driver side outside mirror adjustment power window switch group (S20).
12	Connect electrical connector (6).
13	Insert driver's side power window and outside mirror adjustment switch group (S20) with trim (8) in rear area, starting in armrest (2), and install.
14	Tighten screw (9) at inside of door lining (10).	Model 205.3 with code 901 (Interior chrome package) except code P29 (AMG Line interior) Model 205.3 with code P29 (AMG Line interior) except code 901 (Interior chrome package)
15	Position damping and install door lining (10) at driver's door (1).	Model 205.3 with code 901 (Interior chrome package) except code P29 (AMG Line interior) Model 205.3 with code P29 (AMG Line interior) except code 901 (Interior chrome package)	AR72.10-P-1000LW
16	Remove adhesive film (3) from armrest (2) of driver's door (1).
	Clean
17	Remove adhesive film residues in repair area.
	Check
18	Perform function check of driver's side power window and outside mirror adjustment switch group (S20).

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
