Remove/Install Mirror Triangle Cover On Front Door - AR72.10-P-3001LW
Model 205.0/1/2
Model 213
Model 253, 293

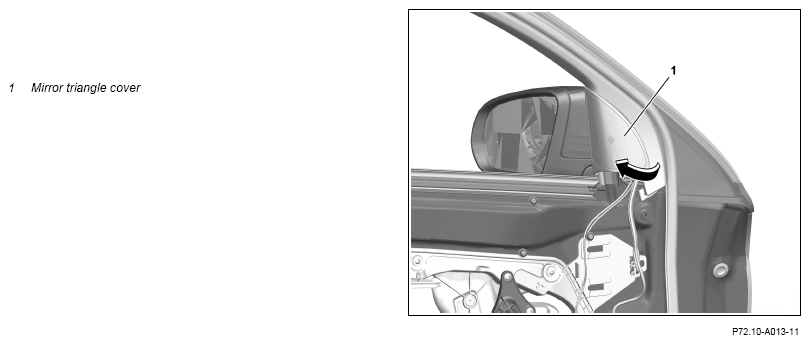

Shown on Model 213 with code 810 (Sound system) on left side of vehicle
| Remove/install | |||
| 1 | Remove door lining. | Model 205.0/1/2, 213, 253 | |
| AR72.10-P-1000LW | |||
| 2 | Unclip mirror triangle cover (1) (arrow) and remove. | ||
| 3 | Disconnect electrical connector from the tweeter. | Model 205.0/1/2, 253, 293 with code 810 (Sound system) Model 205.0/1/2, 253, 293 with code 853 ("Midline" sound system) Model 213 |
|
| 4 | Remove tweeter. | When installing new mirror triangle cover (1). Model 213 |
AR82.62-P-7850LWE |
| Model 205.0/1/2, 253, 293 with code 810 (Sound system) Model 205.0/1/2, 253, 293 with code 853 ("Midline" sound system) |
AR82.62-P-7850EQ | ||
| 5 | Install in the reverse order. |
