Preparing Cross Member Above Rear Axle For Installation - Ar64.20-P-1300-08LWG

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

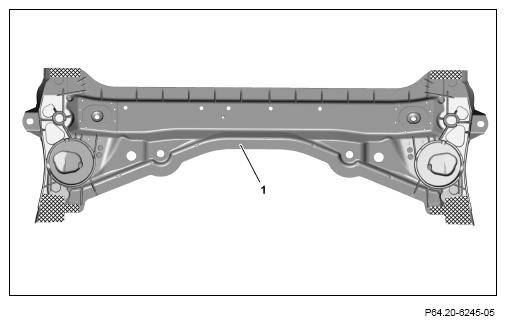

1. Grind mating surfaces on rear axle crossmember (1) down to bare metal in crosshatched areas.
2. Remove grinding dust.

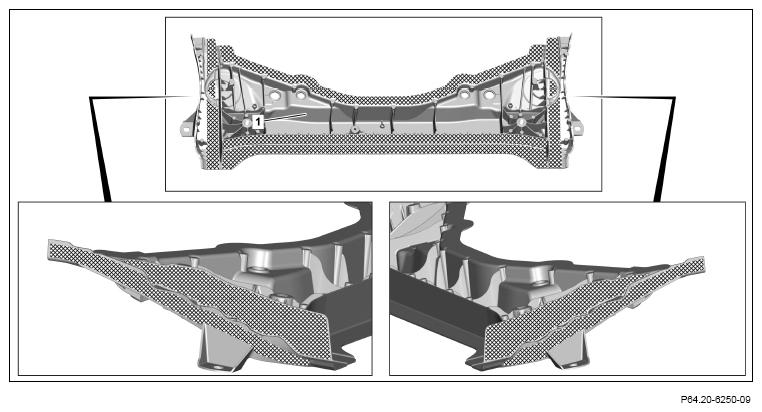

3. Grind mating surfaces on rear axle crossmember (1) down to bare metal in crosshatched areas.
4. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

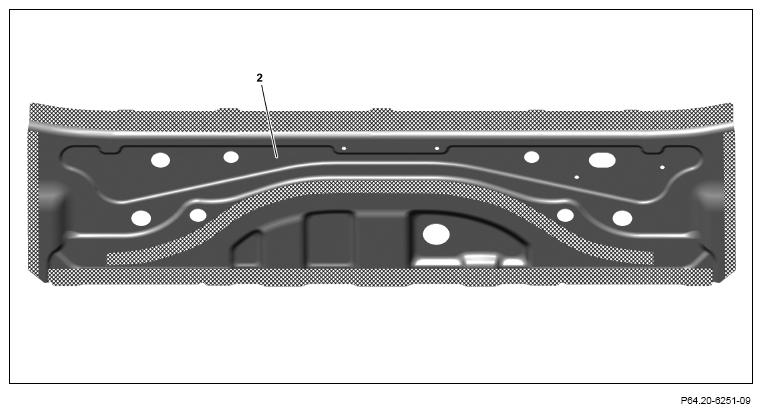

   Rear axle crossmember top section (2) inside

5. Grind mating surfaces on rear axle crossmember top section (2) down to bare metal in crosshatched areas.
6. Remove grinding dust.

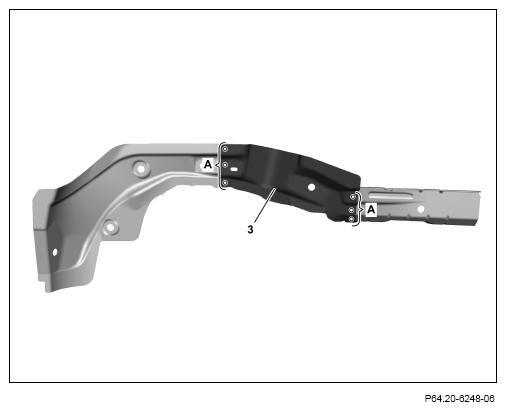

7. Expose self-pierce rivets on left striker plate (3) and drill out with a 6 mm bit (area A).

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

8. Grind mating surfaces on left end plate (3) down to bare metal in cross-hatched areas.
9. Remove grinding dust.

   Observe preliminary treatment of bonding surface.

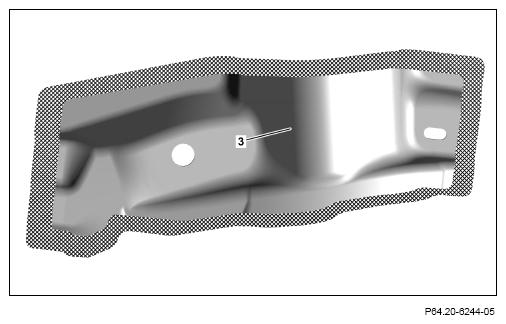

   Left end plate (3), inside

   Courtesy of MERCEDES-BENZ USA

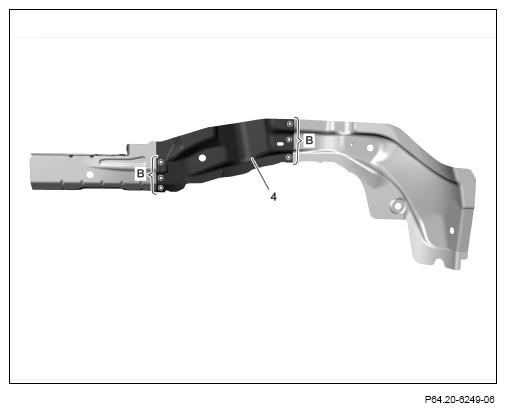

10. Expose self-pierce rivets on right striker plate (4) and drill out with a 6 mm bit (area B).

    Courtesy of MERCEDES-BENZ USA

11. Grind mating surfaces on right end plate (4) down to bare metal in cross-hatched areas.
12. Remove grinding dust.

    Observe preliminary treatment of bonding surface.

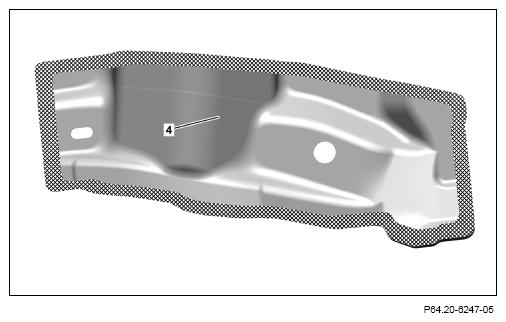

    Right end plate (4), inside
