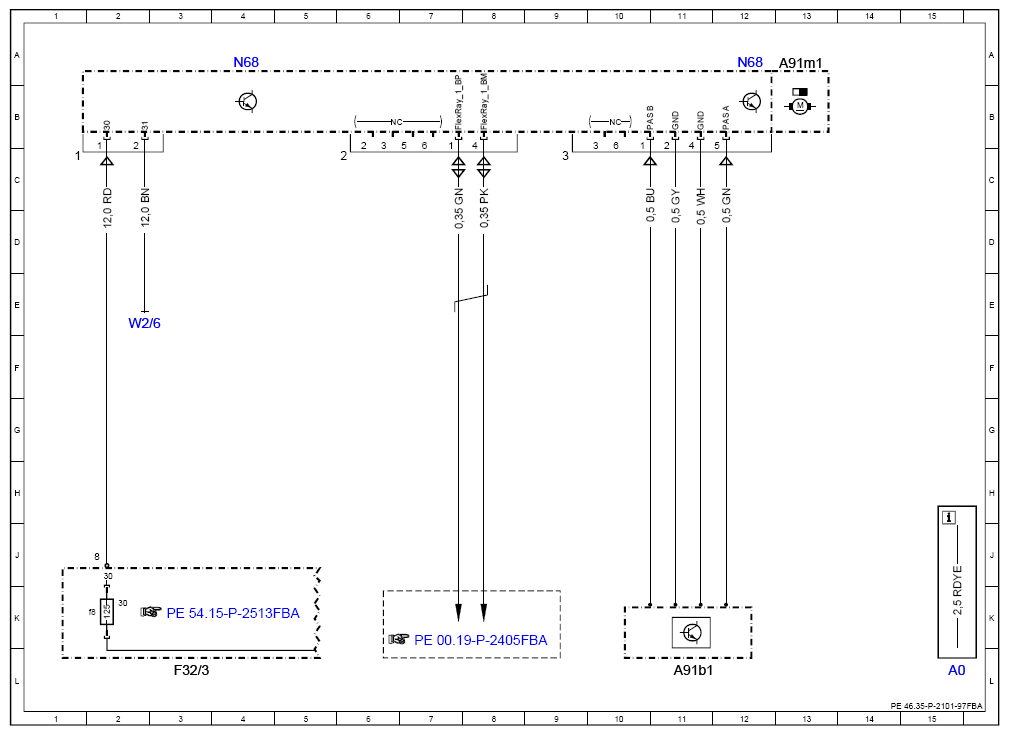

Wiring Diagram For Electric Power Steering Control Unit - PE46.35-P-2101-97FBA
Model 205 up to model year 2019
Control unit N68
Model 253 (except 253.99) up to model year 2020
Control unit N68
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A91b1 | Electric power steering torque sensor | 11L |
| A91m1 | Electric power steering actuator motor | 13A |
| F32/3 | Engine compartment prefuse box | 3L |
| F32/3f8 | Fuse 8 | 2K |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| W2/6 | Electric power steering ground point | 2E |
