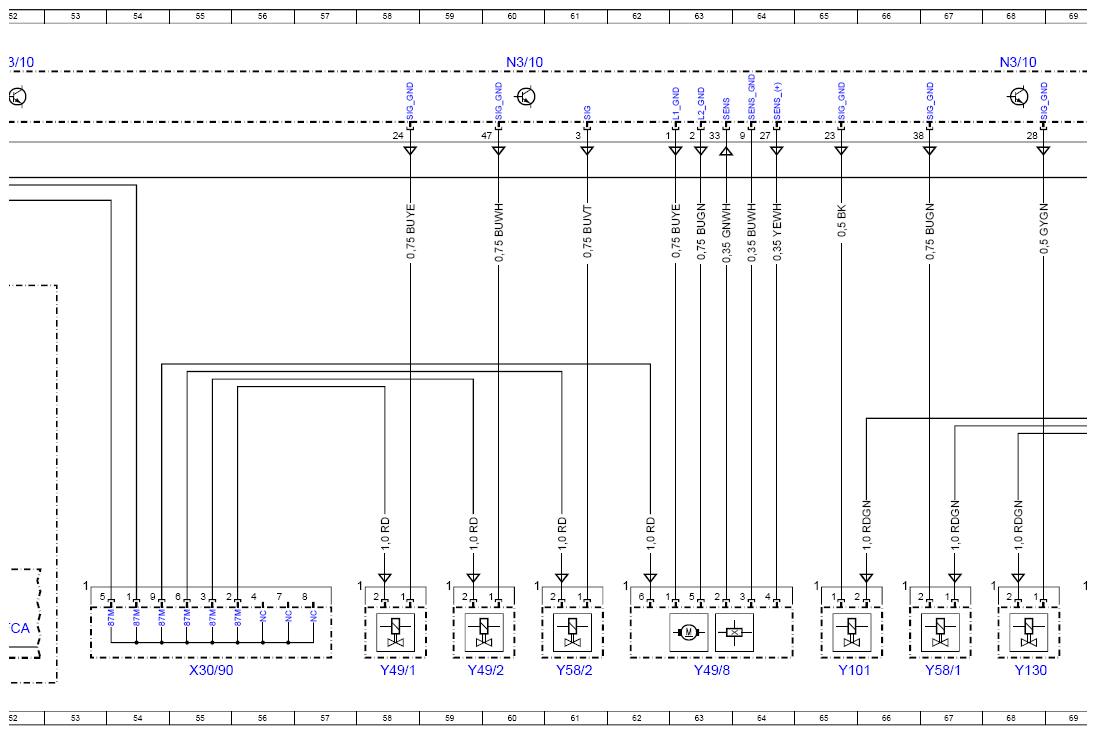

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97FCH
Engine 264 in model 253
as of model year 2020

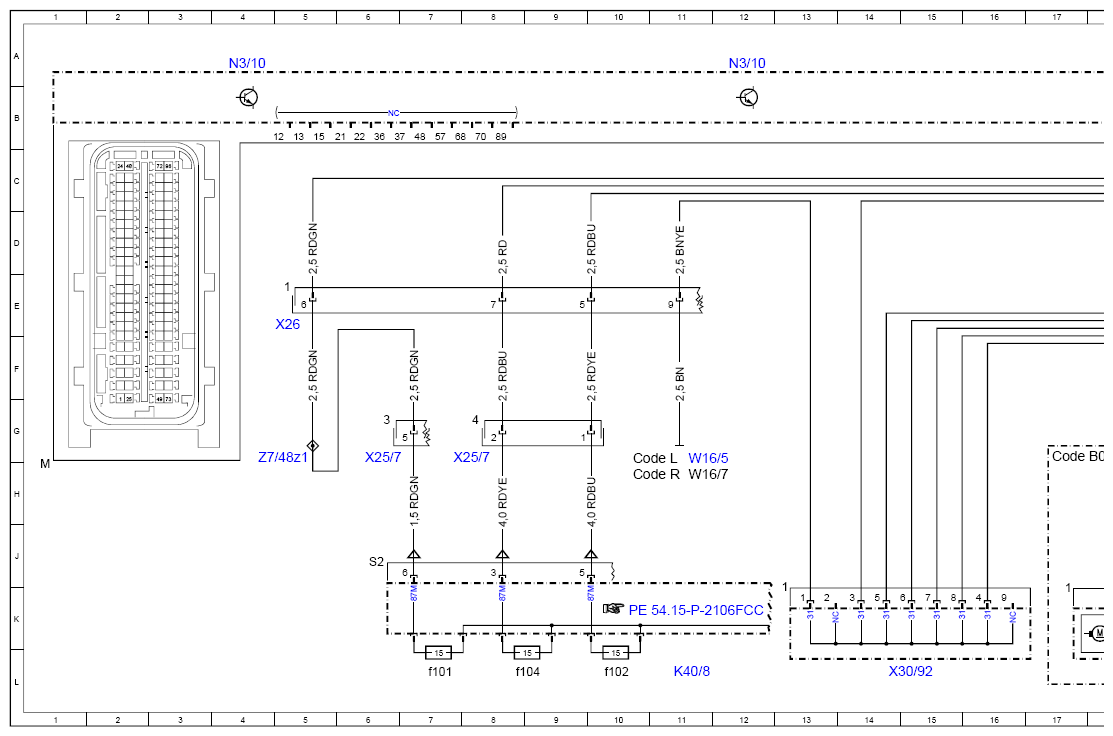

Control unit N3/10, engine connector
| Code: | Designation: | Position: |
|---|---|---|

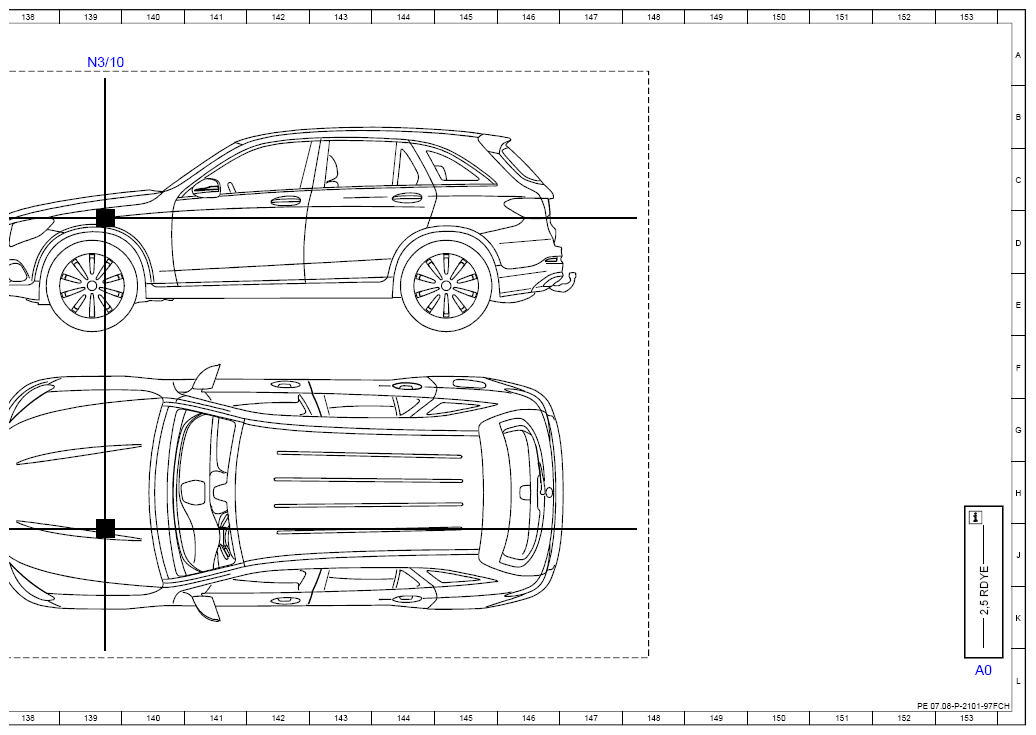

| A0 | Use of wiring diagrams | 153L |

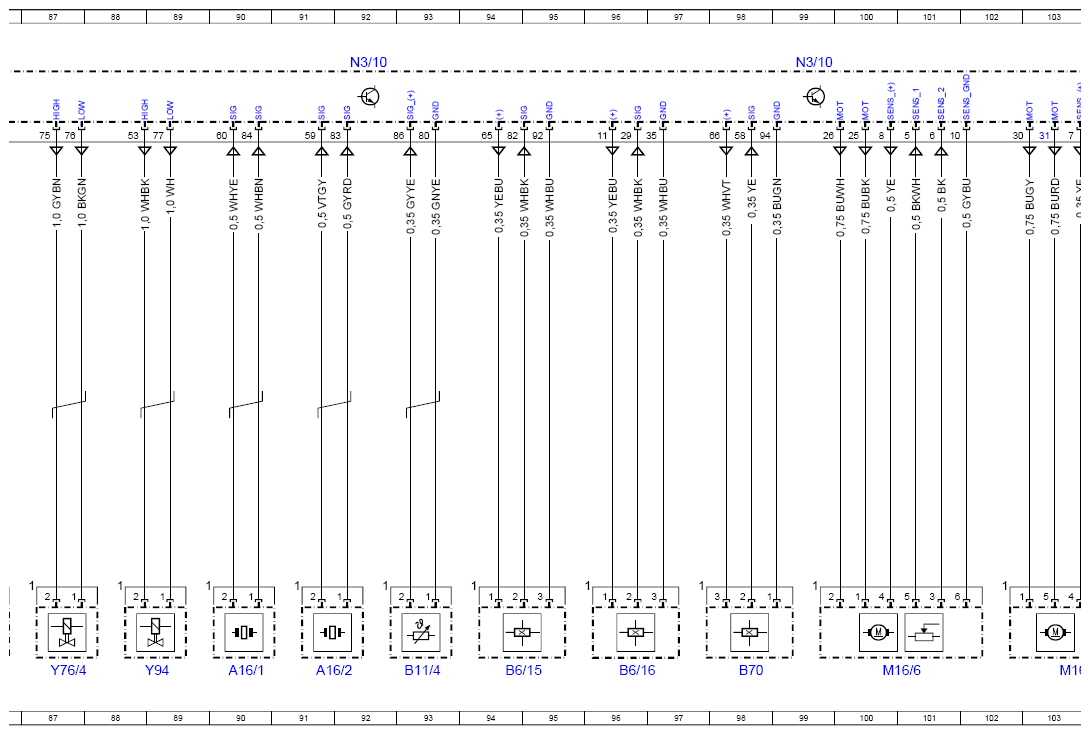

| A16/1 | Knock sensor 1 | 90L |
| A16/2 | Knock sensor 2 | 91L |
| B11/4 | Coolant temperature sensor | 93L |

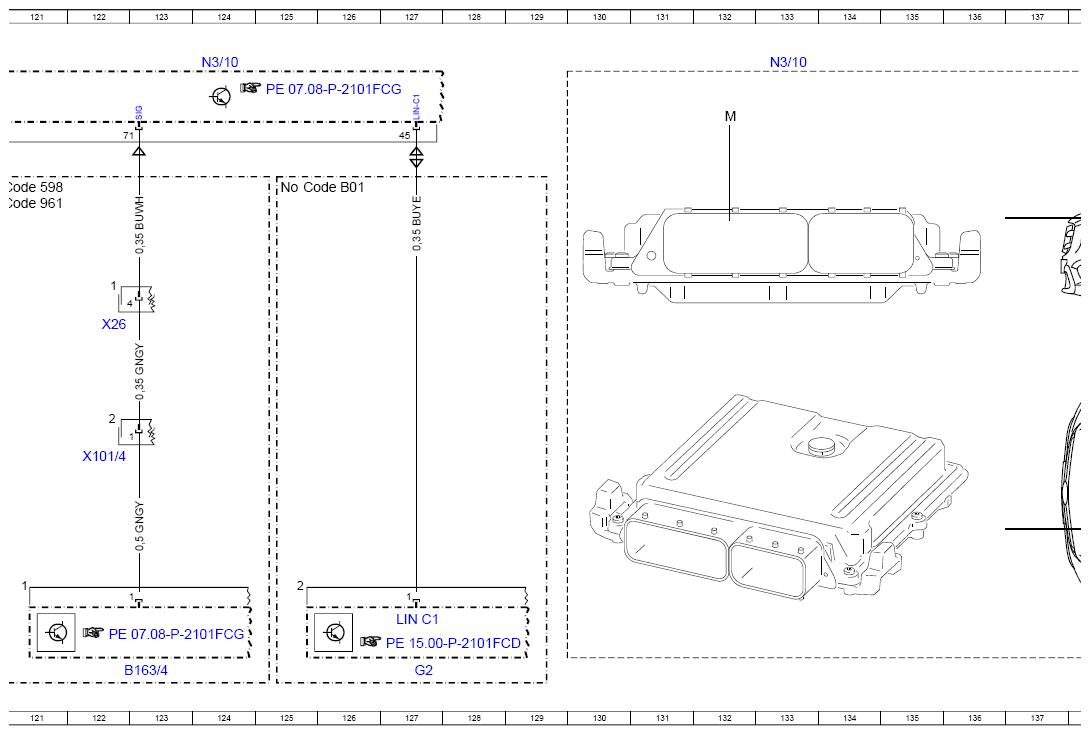

| B163/4 | Temperature sensor upstream of gasoline particulate filter | 123L |

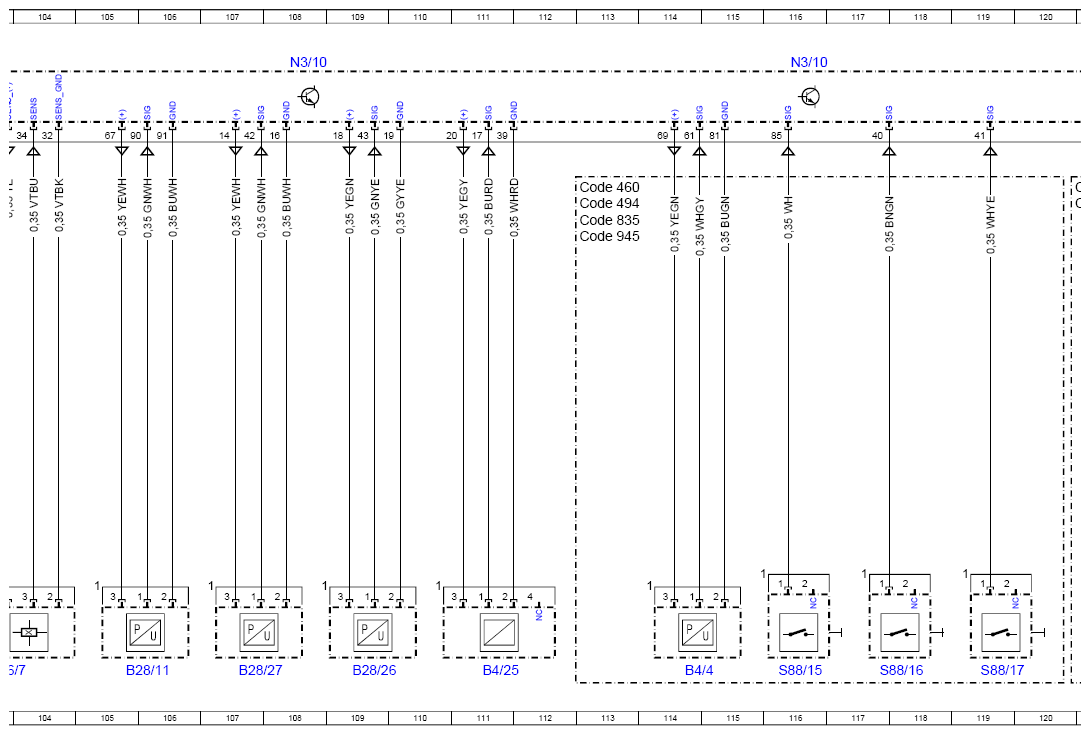

| B28/11 | Pressure sensor downstream of air filter | 105L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 109L |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 107L |
| B4/25 | Fuel pressure and temperature sensor | 111L |
| B4/4 | Purging pressure sensor | 114L |
| B40/6 | Engine oil fill level sensor | 75L |
| B6/15 | Intake camshaft Hall sensor | 94L |
| B6/16 | Exhaust camshaft Hall sensor | 96L |
| B70 | Crankshaft Hall sensor | 98L |
| Code 460 | Canada version | 113C |
| Code 494 | USA version | 113C |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 120C |
| Code 835 | Additional parts for South Korea vehicles | 113D |
| Code 945 | China Stage 6 exhaust treatment | 113D |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 120C |
| Code AA5 | POWER VARIANT BASIC | 41E |
| Code AA6 | POWER VARIANT UPRATED 1 | 29G |
| Code B01 | 48V technology | 17G |
| Code B01 | 48V technology | 125C |
| Code L | LEFT-HAND DRIVE | 10H |
| Code R | RIGHT-HAND DRIVE | 10H |
| F32/3 | Engine compartment prefuse box | 51L |
| F32/3f9 | Fuse 9 | 49K |
| G2 | Alternator | 127L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 78L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 81L |
| K40/8 | Engine fuse and relay module | 11L |
| K40/8f101 | Fuse 101 | 7L |
| K40/8f102 | Fuse 102 | 10L |
| K40/8f104 | Fuse 104 | 8L |
| LIN C1 | Drive train LIN | 127K |
| LIN C2 | Engine LIN | 45K |
| M1/10 | Starter-alternator | 19L |
| M16/6 | Throttle valve actuator | 100L |
| M16/7 | Boost pressure control flap actuator | 103L |
| M43/1 | Electric coolant pump 2 | 43L |
| M75/11 | Electric coolant pump | 47L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 108A |
| N3/10 | ME-SFI [ME] control unit | 99A |
| N3/10 | ME-SFI [ME] control unit | 116A |
| N3/10 | ME-SFI [ME] control unit | 124A |
| N3/10 | ME-SFI [ME] control unit | 133A |
| N3/10 | ME-SFI [ME] control unit | 139A |

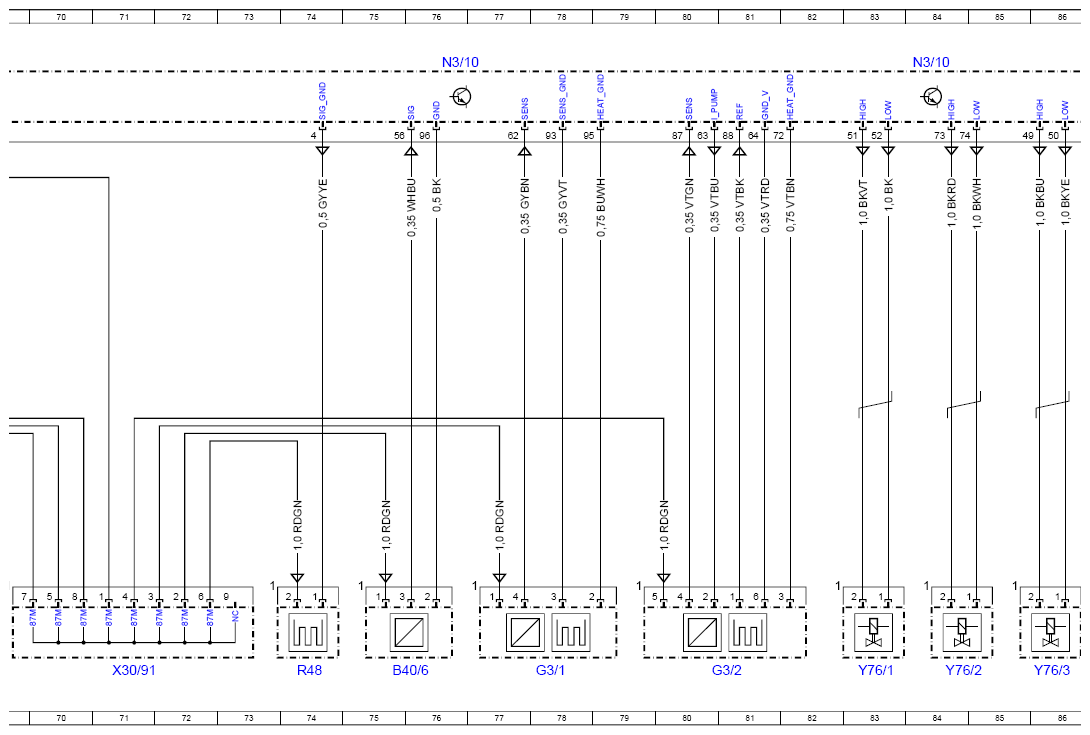

| R48 | Coolant thermostat heating element | 74L |
| S88/15 | Vent line contact switch 1 | 116L |
| S88/16 | Vent line contact switch 2 | 118L |
| S88/17 | Vent line contact switch 3 | 119L |

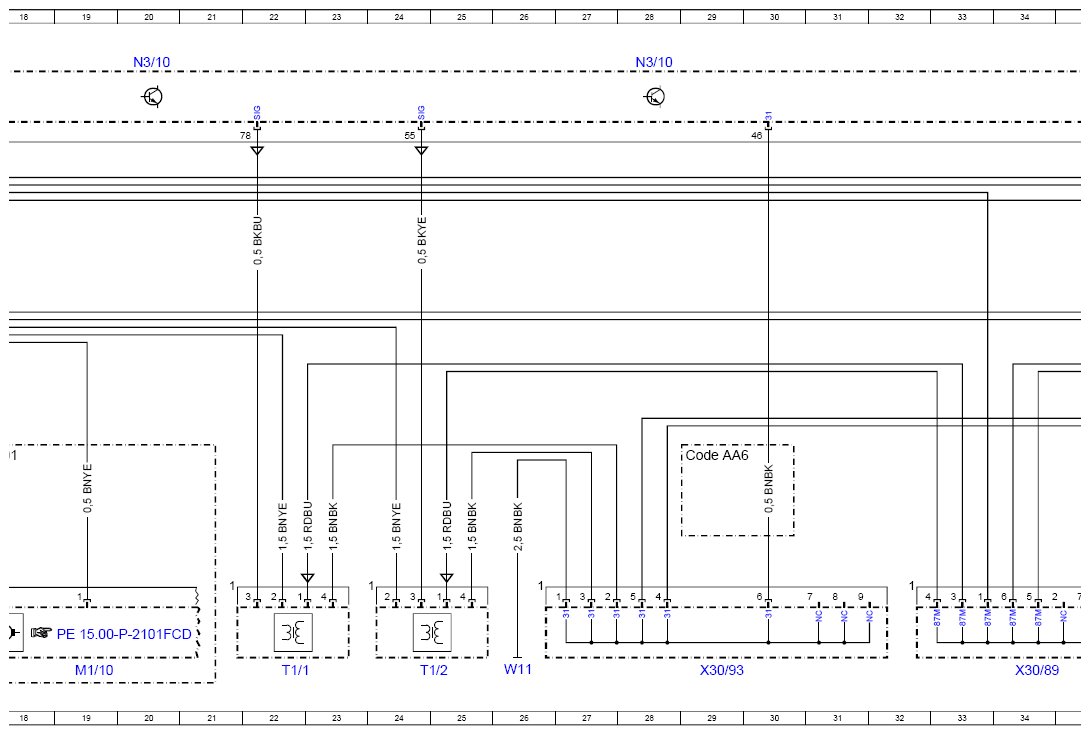

| T1/1 | Cylinder 1 ignition coil | 22L |
| T1/2 | Cylinder 2 ignition coil | 24L |

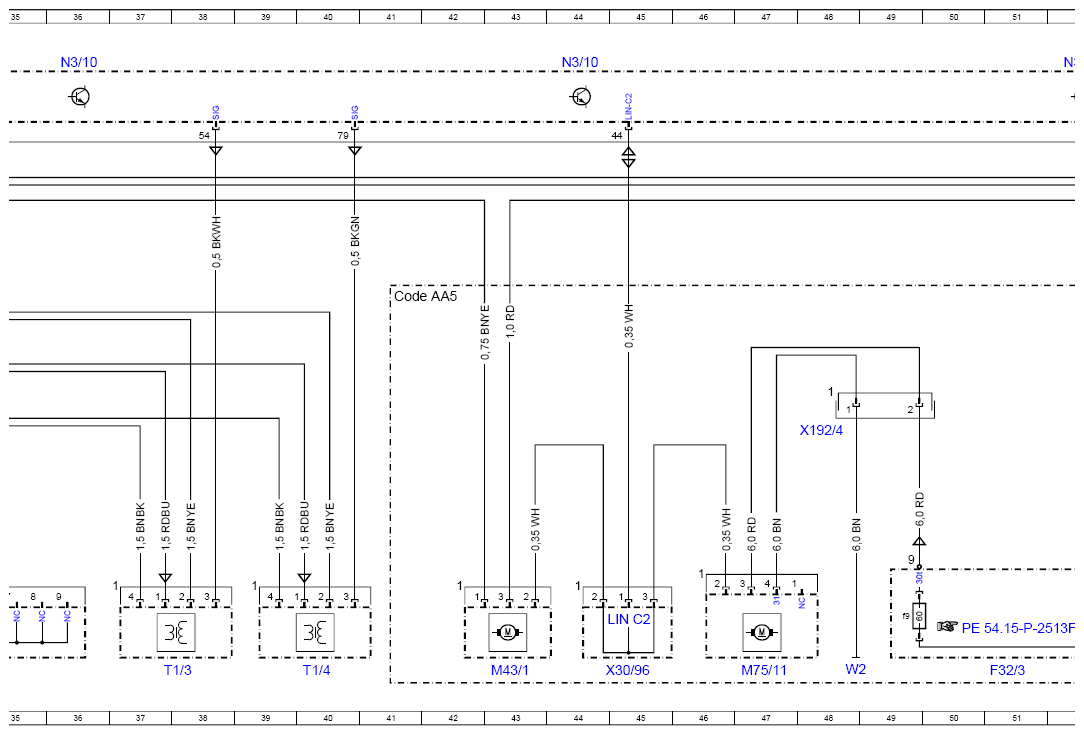

| T1/3 | Cylinder 3 ignition coil | 37L |
| T1/4 | Cylinder 4 ignition coil | 40L |
| W11 | Combustion engine ground point | 26L |
| W16/5 | Left major assembly compartment electronics ground point | 11H |
| 116/7 | Right major assembly compartment electronics ground point | 11H |
| W2 | Right front ground point (at lamp unit) | 48L |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 122H |
| X192/4 | Electric coolant pump electrical connector | 48G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 8H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 6H |
| X26 | Interior and engine wiring harness electrical connector | 5E |
| X26 | Interior and engine wiring harness electrical connector | 122E |
| X30/89 | Power supply potential distributor 1 | 34L |
| X30/90 | Power supply potential distributor 2 | 55L |
| X30/91 | Power supply potential distributor 3 | 71L |
| X30/92 | Circuit 31 potential distributor 1 | 15L |
| X30/93 | Circuit 31 potential distributor 2 | 29L |
| X30/96 | Engine LIN (LIN C2) potential distributor | 45L |
| Y101 | Divert air switchover valve | 65L |
| Y130 | Engine oil pump valve | 68L |
| Y49/1 | Intake camshaft solenoid | 58L |
| Y49/2 | Exhaust camshaft solenoid | 59L |
| Y49/8 | Intake camshaft valve lift switching actuator | 63L |
| Y58/1 | Purge control valve | 67L |
| Y58/2 | Partial load operation crankcase ventilation valve | 61L |
| Y76/1 | Cylinder 1 fuel injector | 83L |
| Y76/2 | Cylinder 2 fuel injector | 84L |
| Y76/3 | Cylinder 3 fuel injector | 86L |
| Y76/4 | Cylinder 4 fuel injector | 87L |
| Y94 | Quantity control valve | 89L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 5G |
