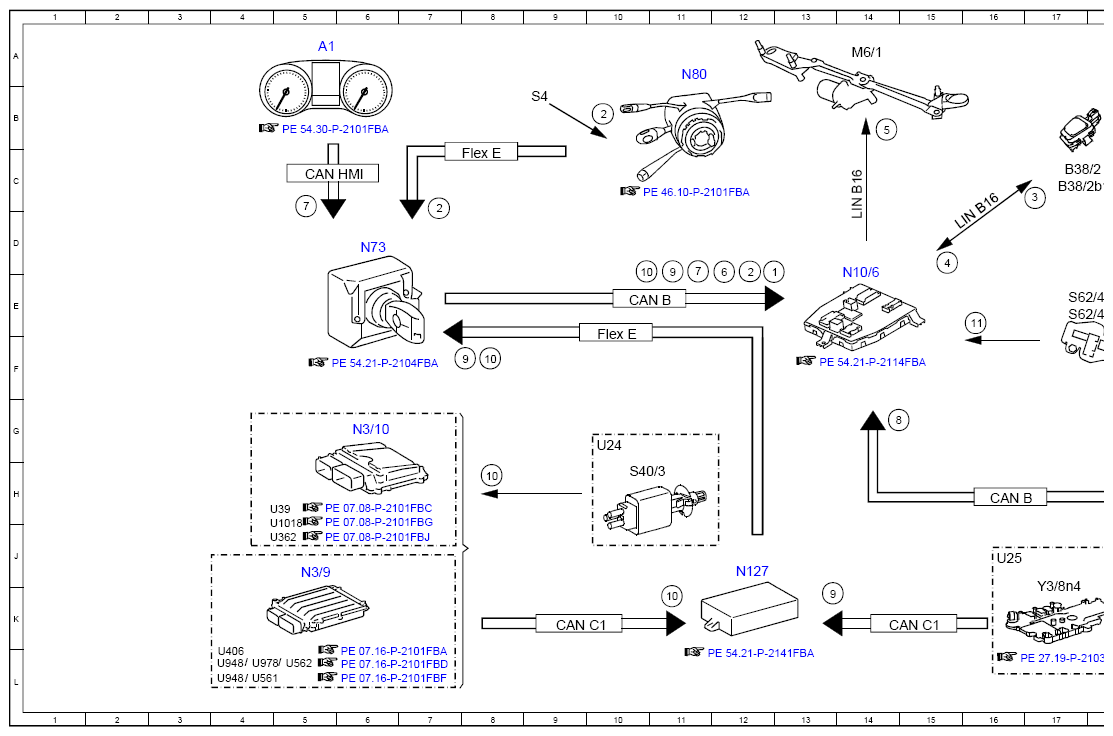

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97FBA
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13E |
| 10 | Clutch pedal switch, status | 8F |
| 10 | Clutch pedal switch, status | 10E |
| 10 | Clutch pedal switch, status | 8H |
| 10 | Clutch pedal switch, status | 11K |
| 11 | Engine hood contact switch, status | 16E |
| 2 | Combination switch, status | 7C |
| 2 | Combination switch, status | 10B |
| 2 | Combination switch, status | 12E |
| 3 | Wipe sensitivity, signal | 17C |
| 4 | Wipe request, signal | 15D |
| 5 | Wiper motor, actuation | 14B |
| 6 | Circuit 50, status | 12E |
| 7 | Vehicle speed, signal | 5C |
| 7 | Vehicle speed, signal | 11E |
| 8 | Door rotary tumbler switch, status | 14G |
| 8 | Door rotary tumbler switch, status | 20F |
| 9 | Gear range, status | 13K |
| 9 | Gear range, status | 11E |
| 9 | Gear range, status | 7E |
| A1 | Instrument cluster | 5A |

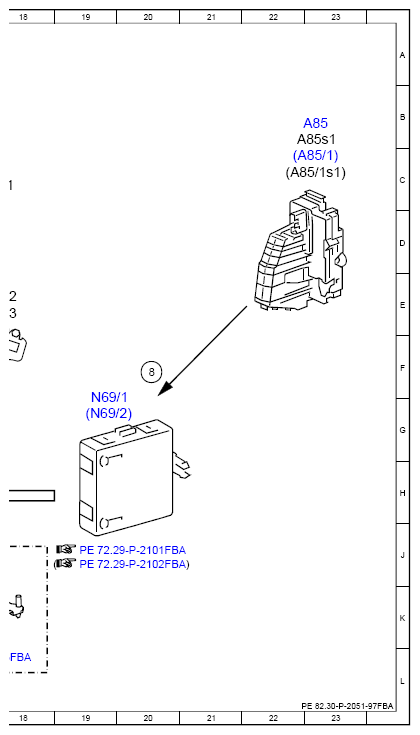

| A85 | Left front door lock | 23B |
| A85/1 | Right front door lock | 22C |
| A85/1s1 | Right front door rotary tumbler switch | 22C |
| A85s1 | Left front door rotary tumbler switch | 23B |
| B38/2 | Rain/light sensor with additional functions | 17C |
| B38/2b1 | Rain sensor | 17C |
| CAN B | Interior CAN | 10E |
| CAN B | Interior CAN | 16H |
| CAN C1 | Drive train CAN | 15K |
| CAN C1 | Drive train CAN | 9K |
| CAN HMI | User interface CAN | 5C |
| Flex E | Chassis FlexRay | 8C |
| Flex E | Chassis FlexRay | 10F |
| LIN B16 | Rain and light sensor LIN | 14C |
| LIN B16 | Rain and light sensor LIN | 16D |
| M6/1 | Wiper motor | 14A |
| N10/6 | Front SAM control unit | 14E |
| N127 | Drive train control unit | 12J |
| N3/10 | ME-SFI [ME] control unit | 6G |
| N3/9 | CDI control unit | 5J |
| N69/1 | Left front door control unit | 19G |
| N69/2 | Right front door control unit | 19G |
| N73 | Electronic ignition switch control unit | 6D |
| N80 | Steering column module control unit | IIA |
| S4 | Combination switch | 9B |
| S40/3 | Clutch pedal switch | 10H |
| S62/42 | Right engine hood contact switch | 17E |
| S62/43 | Left engine hood contact switch | 17E |
| U1018 | Valid for gasoline engine 276 | 4J |
| U24 | Valid for manual transmission | 10G |
| U25 | Valid for automatic transmission | 16J |
| U362 | Valid for gasoline engine 274 | 4J |
| U39 | Valid for gasoline engine 177 | 4H |
| U406 | Valid for diesel engine 626 | 4L |
| U561 | Valid for Delphi system | 4L |
| U562 | Valid for Bosch system | 5L |
| U948 | Valid for diesel engine 651 | 4L |
| U948 | Valid for diesel engine 651 | 4L |
| U978 | Valid for hybrid drive | 4L |
| Y3/8n4 | Fully integrated transmission control control unit | 17K |
