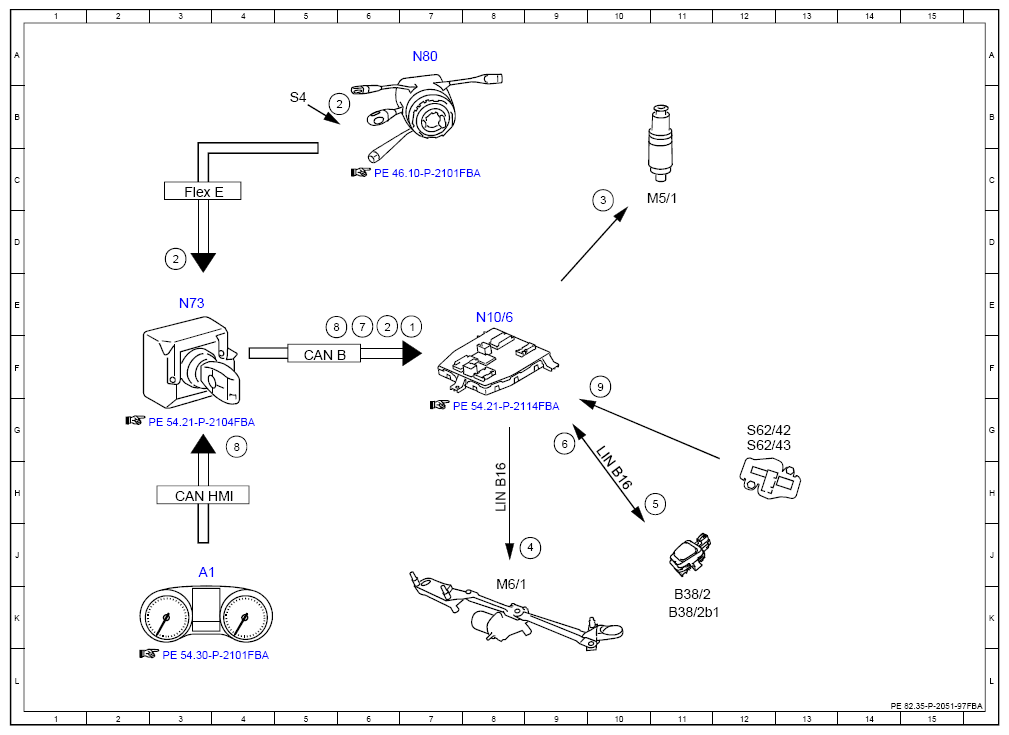

Electrical Function Schematic For Windshield Washer - PE82.35-P-2051-97FBA
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7E |
| 2 | Combination switch, status | 3D |
| 2 | Combination switch, status | 6B |
| 2 | Combination switch, status | 6E |
| 3 | Windshield washer system pump, actuation | 10C |
| 4 | Wiper motor, actuation | 9J |
| 5 | Re-wipe, status | 11H |
| 6 | Rain/light sensor, status | 9G |
| 7 | Circuit 50, status | 6E |
| 8 | Vehicle speed, signal | 4G |
| 8 | Vehicle speed, signal | 6E |
| 9 | Engine hood contact switch, status | 10F |
| A1 | Instrument cluster | 3J |
| B38/2 | Rain/light sensor with additional functions | 11K |
| B38/2b1 | Rain sensor | 11K |
| CAN B | Interior CAN | 5F |
| CAN MM] | User interface CAN | 3H |
| Flex E | Chassis FlexRay | 3C |
| LIN B16 | Rain and light sensor LIN | 8H |
| LIN B16 | Rain and light sensor LIN | 10H |
| M5/1 | Windshield washer system pump | 10C |
| M6/1 | Wiper motor | 8K |
| N10/6 | Front SAM control unit | 8E |
| N73 | Electronic ignition switch control unit | 3E |
| N80 | Steering column module control unit | 7A |
| S4 | Combination switch | 5B |
| S62/42 | Right engine hood contact switch | 12G |
| S62/43 | Left engine hood contact switch | 12G |
