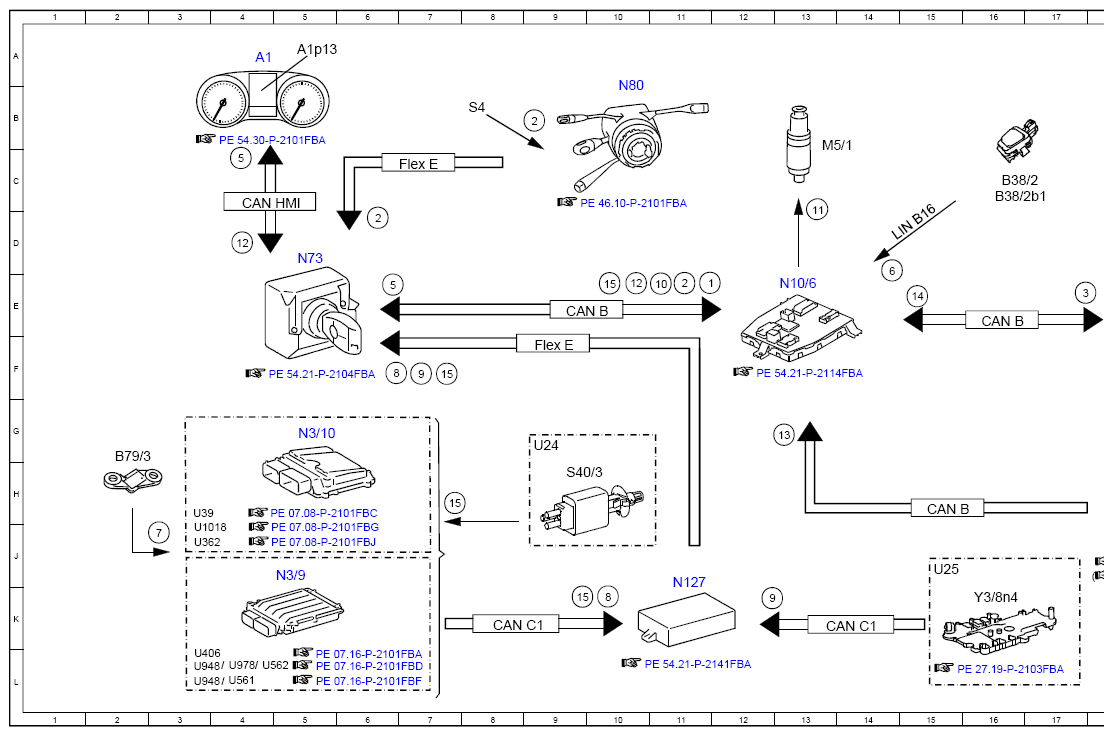

Electrical Function Schematic For Rear Window Wiper System - PE82.30-P-2056-97FBA
Model 205.2, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11E |
| 10 | Reverse gear, status | 11E |
| 11 | Windshield washer system pump, actuation | 13D |
| 12 | Vehicle speed, signal | 4D |
| 12 | Vehicle speed, signal | 10E |
| 13 | Door rotary tumbler switch, status | 13G |
| 13 | Door rotary tumbler switch, status | 20H |
| 14 | Trunk lid/liftgate lock main catch switch, status | 15D |
| 14 | Trunk lid/liftgate lock main catch switch, status | 20C |
| 15 | Clutch pedal switch, status | 7H |
| 15 | Clutch pedal switch, status | 10E |
| 15 | Clutch pedal switch, status | 9K |
| 15 | Clutch pedal switch, status | 7F |
| 2 | Combination switch, status | 9B |
| 2 | Combination switch, status | 6D |
| 2 | Combination switch, status | 11E |
| 3 | Tailgate wiper motor, request | 17E |
| 4 | Tailgate wiper motor, actuation | 22E |
| 5 | Wiper status, signal | 4C |
| 5 | Wiper status, signal | 6E |
| 6 | Wipe request, signal | 14E |
| 7 | Manual transmission main shifter shaft position sensor, signal | 3J |
| 8 | Reverse gear engaged, signal | 6F |
| 8 | Reverse gear engaged, signal | 19K |
| 9 | Gear range, status | 7F |
| 9 | Gear range, status | 12K |
| A1 | Instrument cluster | 4A |
| A1p13 | Multifunction display | 5A |
| A85 | Left front door lock | 22J |
| A85/1 | Right front door lock | 22J |
| A85/1s1 | Right front door rotary tumbler switch | 22J |
| A85/5 | Trunk lid/liftgate lock | 19A |
| A85/5s1 | Trunk lid/liftgate lock main catch switch | 19A |
| A85s1 | Left front door rotary tumbler switch | 22J |
| B38/2 | Rain/light sensor with additional functions | 16C |
| B38/2b1 | Rain sensor | 16C |
| B79/3 | Manual transmission main shifter shaft position sensor | 2G |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 15H |
| CAN B | Interior CAN | 16E |
| CAN C1 | Drive train CAN | 14K |
| CAN C1 | Drive train CAN | 8K |
| CAN HMI | User interface CAN | 4C |
| Flex E | Chassis FlexRay | 7C |
| Flex E | Chassis FlexRay | 9F |
| LIN B16 | Rain and light sensor LIN | 15D |
| M5/1 | Windshield washer system pump | 13C |
| M6/4 | Tailgate wiper motor | 23E |
| N10/6 | Front SAM control unit | 13E |
| N10/8 | Rear SAM control unit | 19D |
| N127 | Drivetrain control unit | 11J |
| N3/10 | ME-SFI [ME] control unit | 5G |
| N3/9 | CDI control unit | 5J |
| N69/1 | Left front door control unit | 18G |
| N69/2 | Right front door control unit | 18G |
| N73 | Electronic ignition switch control unit | 5D |
| N80 | Steering column module control unit | 10B |
| S4 | Combination switch | 8B |
| S40/3 | Clutch pedal switch | 9H |
| U1018 | Valid for gasoline engine 276 | 3J |
| U24 | Valid for manual transmission | 9G |
| U25 | Valid for automatic transmission | 15J |
| U362 | Valid for gasoline engine 274 | 3J |
| U39 | Valid for gasoline engine 177 | 3H |
| U406 | Valid for diesel engine 626 | 3L |
| U561 | Valid for Delphi system | 4L |
| U562 | Valid for Bosch system | 4L |
| U948 | Valid for diesel engine 651 | 3L |
| U948 | Valid for diesel engine 651 | 3L |
| U978 | Valid for hybrid drive | 4L |
| Y3/8n4 | Fully integrated transmission control control unit | 16K |
