Overview Of System Components, Telematics - GF82.85-P-9999RFM
Model 253 (except 253.99)
as of model year 2020

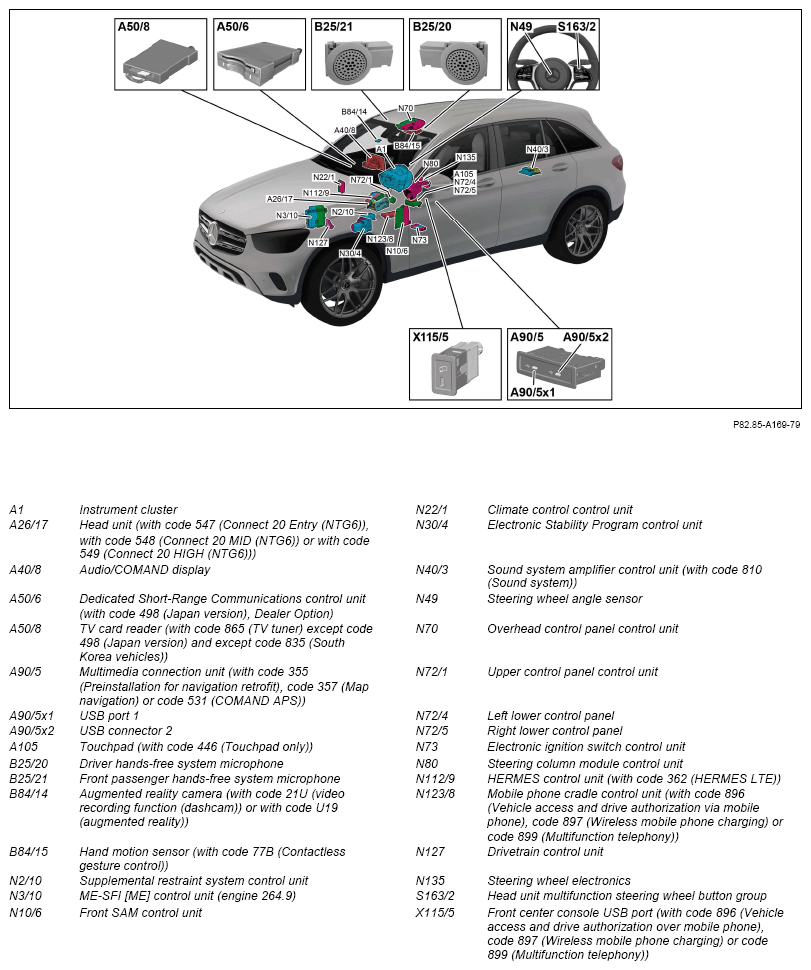

Telematics except antenna system and speaker system, shown on model 253.9

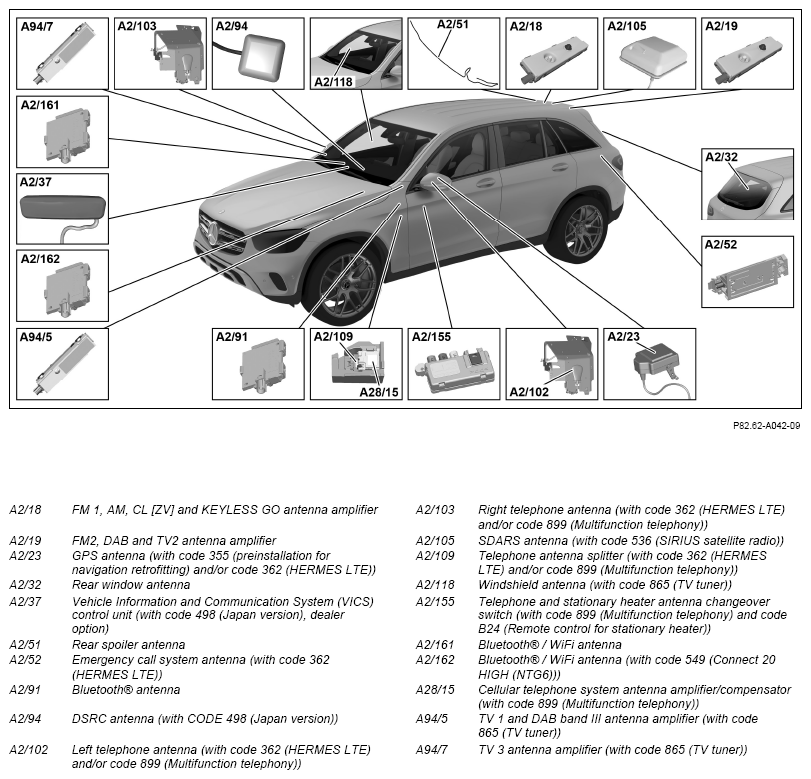

Telematics antenna system model 253.1/9, shown on model 253.9

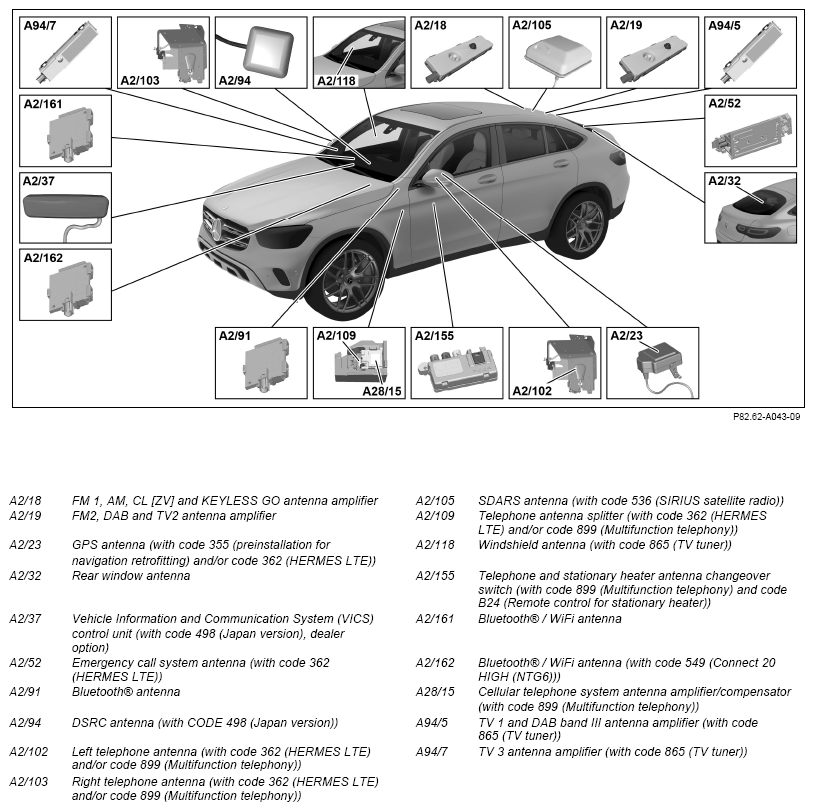

Telematics antenna system, model 253.3

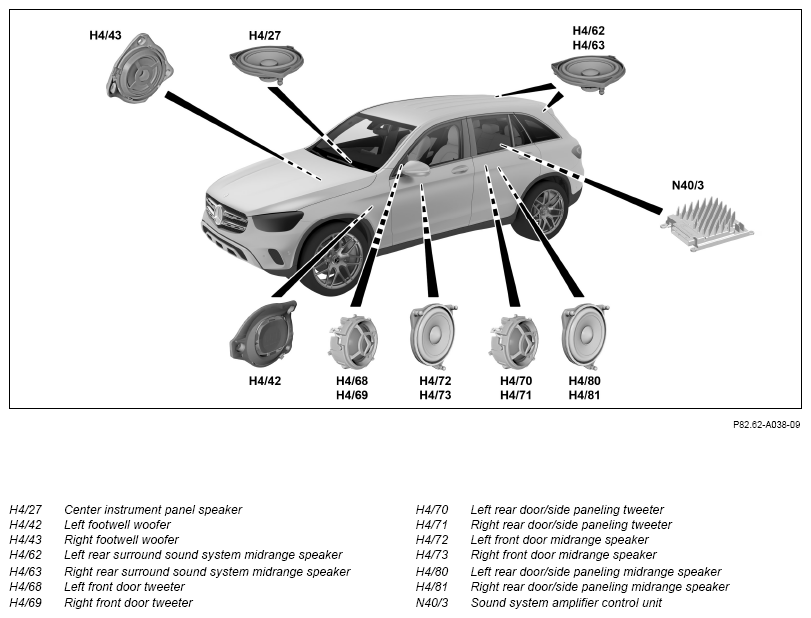

Speaker system with code 810 (Sound system), shown on model 253.9

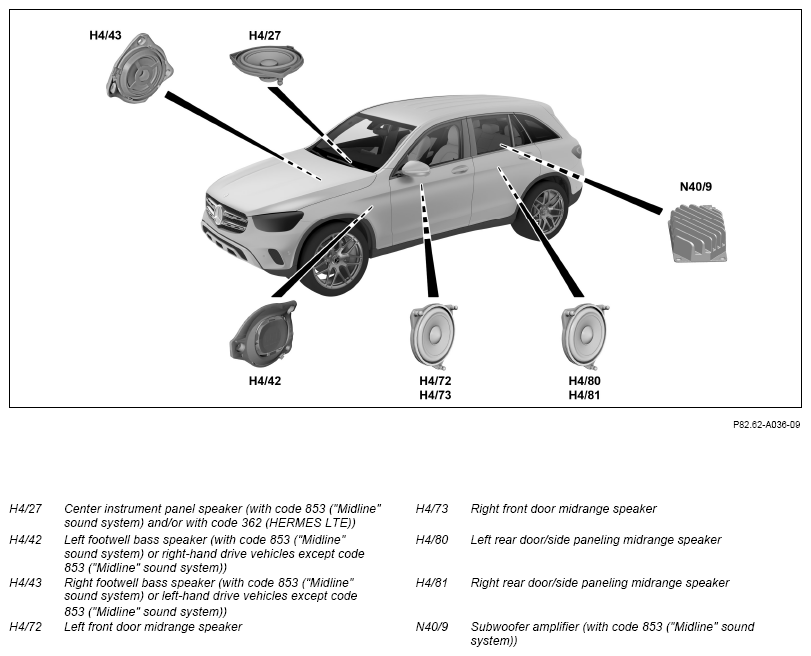

Speaker system, except code 810 (Sound system), shown on model 253.9
| Component description for instrument cluster | GF54.30-P-6000RF | ||
| Head unit, component description | With code 547 (Connect 20 Entry (NTG6)), with code 548 (Connect 20 Mid (NTG6)) or with code 549 (Connect 20 High (NTG6)) A26/17 |
GF82.85-P-3140RFM | |
| Component description for Audio/COMAND® display | A40/8 | GF54.30-P-6150RF | |
| Touchpad, component description | Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) A105 | GF54.21-P-4511RF | |
| Augmented reality camera, component description | Model 253 (except 253.99) as of model year 2020 with code 21U (Video recording function (Dashcam)) Model 253 (except 253.99) as of model year 2020 with code U19 (Augmented reality video) B84/14 |
GF82.85-P-3144RFM | |
| Hand motion sensor, component description | Model 253 (except 253.99) as of model year 2020 with code 77B (Contactless gesture control at front) B84/15 |
GF82.90-P-4025RFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for ME-SFI (ME) control unit | Model 253 (except 253.99) with engine 264.9 as of model year 2020 N3/10 |
GF07.61-P-6000MRS | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Component description for Electronic Stability Program control unit | Model 253 (except 253.353/354/953/954/99) as of model year 2020 N30/4 |
GF42.45-P-5119RF | |
| Model 253.353/354/953/954 as of model year 2020 N30/4 |
GF42.45-P-5119RFH | ||
| Component description for sound system amplifier control unit | Model 253 (except 253.99) as of model year 2020 with code 810 (Premium sound system) N40/3 |
GF82.62-P-5010RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RF | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RFM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RFM | |
| HERMES control unit, component description | Model 253 (except 253.99) as of model year 2020 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221RF | |
| Mobile phone cradle control unit component description | Model 253 (except 253.99) as of model year 2020 with code 896 (Vehicle access and authorization via smartphone) Model 253 (except 253.99) as of model year 2020 with code 897 (Front wireless telephone charging) Model 253 (except 253.99) as of model year 2020 with code 899 (Multifunction telephony) N123/8 |
GF82.70-P-0201RFM | |
| Drivetrain control unit, component description | Model 253.353/354/953/954 with engine 274.9 as of model year 2020 N127 |
GF54.21-P-2141MRH | |
| Model 253 (except 253.99) with engine 264.9 as of model year 2020 N127 |
GF54.21-P-2141MRS | ||
| Model 253 (except 253.99) with engine 654.9 as of model year 2020 N127 |
GF54.21-P-2141ORH | ||
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006RFM | |
| Table of contents for function description, telematics | GF82.85-P-0993RF | ||
