Windshield Wiper System, Function - GF82.30-P-0001RF
Model 205, 253

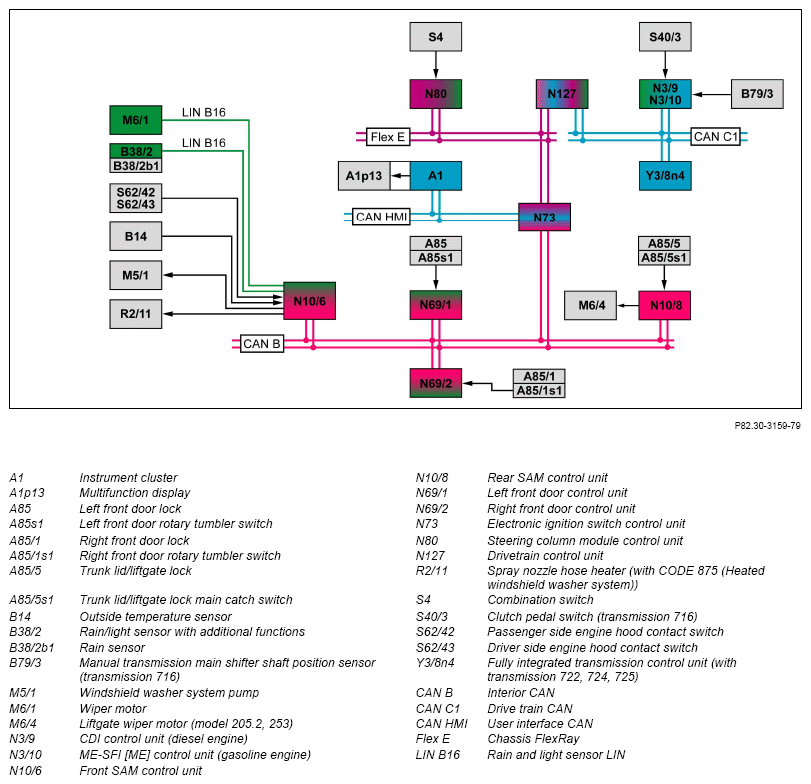

Windshield wiper system, general
The windshield wiper system controls the wiping and washing of the windshield and on Model 205.2, 253 the rear window.
The windshield wiper system function consists of the following subfunctions, which are described in separate documents:
- Windshield wiper, function
- Windshield washer, function
- Spray nozzle hose heater function (with CODE 875 (Heated windshield washer system))
- Rear window windshield wiper system (Model 205.2, 253)
Model 205
as of Model year 2019
Model 253 (except 253.99)
as of Model year 2020
Model 253.99
there is a defined service item which is triggered automatically if "single wipe" and circuit 15CON or circuits 15C, 15R, 15 and 50 OFF is triggered.
Model 205
up to Model year 2019
Model 253
up to Model year 2020
In order to approach a service item, during continuous wiping, circuit 15C ON or circuit 15C, 15R, 15 and 50 OFF must be switched when at the required position.
| Windshield wiper, function | GF82.30-P-3004RF | ||
| Windshield washer, function | GF82.35-P-3002RF | ||
| Spray nozzle hose heater function | Model 205, 253 with code 875 (Heated windsshield washer system) |
GF82.35-P-3009RF | |
| Rear window wiper system, function | Model 205.2, 253 | GF82.30-P-2400RF |
