Tuner Unit, Component Description - GF82.60-P-5015RF
Model 205
up to Model year 2019
with code 536 (Sirius satellite radio complete system)
Model 205
up to Model year 2019
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
Model 205
up to Model year 2019
with code 865 (digital TV)
Model 253 (except 253.99)
up to Model year 2020
with code 536 (Sirius satellite radio complete system)
Model 253 (except 253.99)
up to Model year 2020
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
Model 253 (except 253.99)
up to Model year 2020
with code 865 (digital TV)

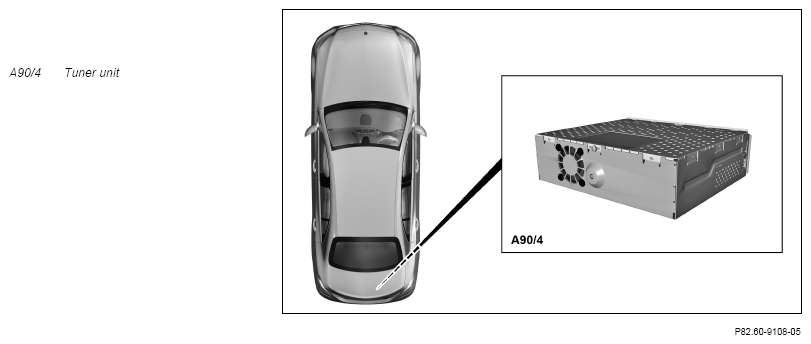

Shown on Model 205.0
Location
The tuner unit is located on a major assemblies carrier below the trunk floor in a recess.
Tasks
- Receive signals
- Processing signals
- Transmitting signals
Receive signals
- Media Oriented System Transport (MOST)
- Direct lines
MOST
The tuner unit is a MOST participant and it communicates over this with the head unit (A26/17).
Direct lines
On Model 205.0/1/3/4, the tuner unit receives the following signals via direct lines:
- Power supply through circuit 31 and circuit 30 g
- Electronic wake-up signal for MOST
- SDAR antenna (A2/105) (with code 536 (SIRIUS satellite radio))
- FM 2 and DAB band III antenna amplifier (A2/108), for DAB band III signals (with CODE 537 (Digital radio (DAB)))
- TV 1 and DAB band III antenna amplifier (A94/5), for DAB band III signals (with code 537 (Digital radio (DAB))) or TV-1 signals (with code 865 (TV tuner))
- TV 2 antenna amplifier (A94/6), for TV-2 signals (with CODE 865 (TV tuner))
- TV 3 antenna amplifier (A94/7), for TV-3 signals (with CODE 865 (TV tuner))
On Model 205.2 and on Model 253, the tuner unit receives the following signals via direct lines:
- Power supply via circuit 31 and circuit 30g
- Electronic wake-up signal for MOST
- SDARS antenna (with code 536 (SIRIUS satellite radio))
- FM 2, DAB and TV 1 antenna amplifier (A2/131), for DAB band III signals (with code 537 (Digital radio (DAB))) or TV-1 signals (with code 865 (TV tuner))
- TV 2 and DAB band III antenna amplifier (A2/123), for DAB band III signals (with code 537 (Digital Radio (DAB))) or TV-2 signals (with CODE 865 (TV tuner)), vehicles with code 537 (Digital radio (DAB)) and code 865 (TV tuner) over the TV and DAB antenna splitter (A2/124)
- TV 3 antenna amplifier, for TV-3 signals (with CODE 865 (TV tuner))
Processing signals
- With code 536 (SIRIUS satellite radio) the tuner unit decodes and amplifies the satellite signals and the terrestrial signals in pulse code modulation (PCM) signals.
- With CODE 537 (Digital radio (DAB)), the tuner unit decodes the DAB band III signals into PCM signals.
- With CODE 865 (TV tuner), the tuner unit decodes and demodulates the TV signals and separates them into video and audio signals.
- With CODE 865 (TV tuner) and CODE 537 (Digital radio (DAB)), the tuner unit separates the DAB-Band-III signals from the TV signals on the TV 1 antenna input.
Transmitting signals
- MOST
- Direct lines
MOST
The tuner unit is a MOST participant and it communicates over this with the head unit. The audio signals are sent to the head unit or to the sound system amplifier control unit (N40/3) (with CODE 810 (Sound system)).
Direct lines
In Model 205.0/1/3/4, the tuner unit transmits the following signals via a direct line:
- Supply voltage to FM 2 and DAB band III antenna amplifier (with CODE 537 (Digital radio (DAB)))
- Supply voltage to TV 1 and DAB band III antenna amplifier (with CODE 537 (Digital radio (DAB)) or with CODE 865 (TV tuner))
- Supply voltage to TV 2 antenna amplifier (with CODE 865 (TV tuner))
- Supply voltage to TV 3 antenna amplifier (with code 865 (TV tuner))
- Video signals over a low voltage differential signal (LVDS) line to the head unit (with CODE 865 (TV tuner))
On Model 205.2 and on Model 253, the tuner unit sends the following signals via a direct line:
- Supply voltage to FM 2, DAB and TV 1 antenna amplifier (with CODE 537 (Digital radio (DAB)) or with CODE 865 (TV tuner))
- Supply voltage to TV 2 and DAB Band III (with code 537 (Digital radio (DAB)) or with code 865 (TV tuner)), vehicles with code 537 (Digital radio (DAB)) and code 865 (TV tuner) over the TV and DAB antenna splitter
- Supply voltage to TV 3 antenna amplifier (with code 865 (TV tuner))
- Video signals via an LVDS line to the head unit (with CODE 865 (TV tuner))
| Wiring diagram for tuner unit control unit | PE82.60-P-2108-97FBA |
