Overview Of System Components For Regenerative Braking System - GF42.22-P-9999RFH
Model 205.012/013/047/053/054/147/212/213/247/253, 253.311/353/354/911/953/954/99
Show on model 205.012
Model 205.013/047/053/054/147/213/253
as of model year 2019
with code 258 (Collision warning system with active brake application FCW-Stop)
Model 253.311/911
as of model year 2020
with code 258 (Collision warning system with active brake application FCW-Stop)
The Active Brake Assist controller unit (A108) is installed instead of the COLLISION PREVENTION ASSIST control unit.
Model 205.013/047/053/054/147/213/253
as of model year 2019
with code 23P (Drive package)
Model 253.311/911
as of model year 2020
with code 23P (Drive package)
The Mercedes-Benz Intelligent Drive control unit (N62/4) is installed instead of the radar sensors control unit.

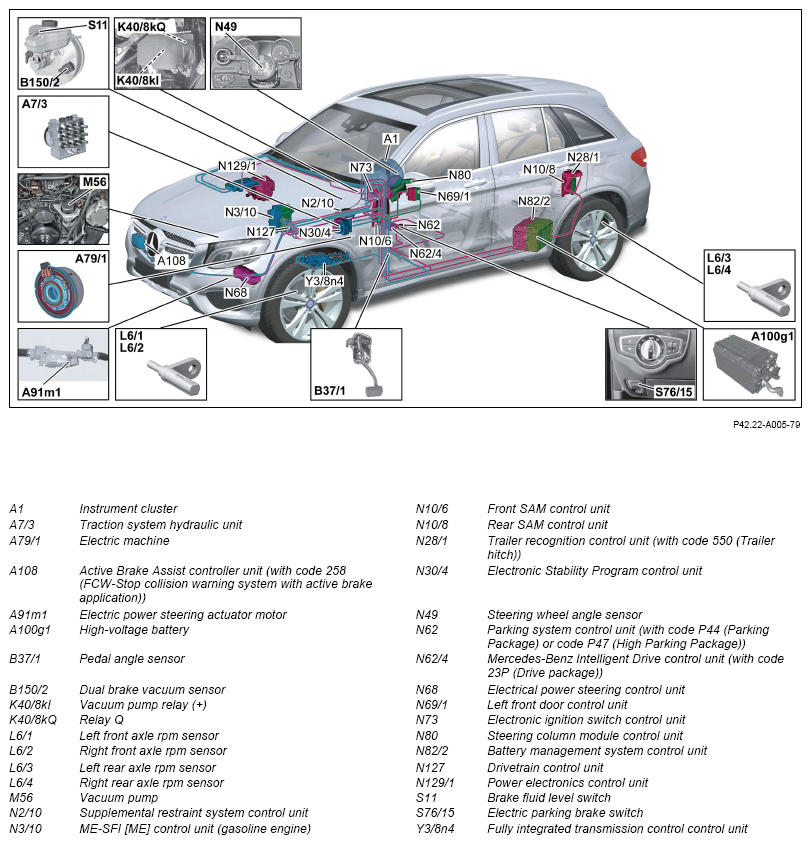

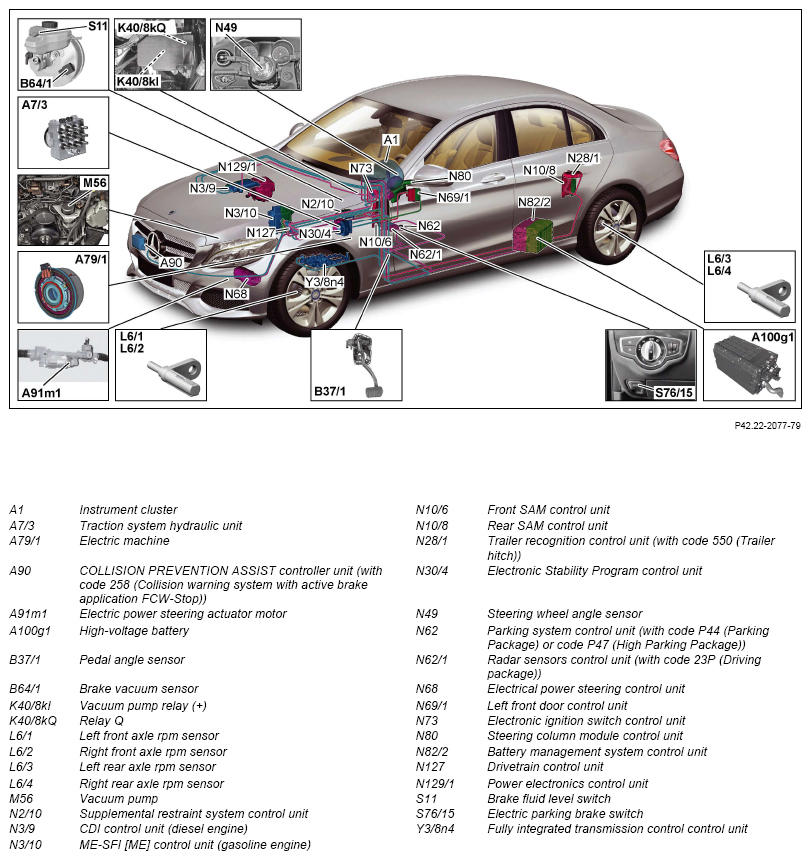

Shown on model 253.953
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 205.012/047/147/212/247 up to model year 2019 with code 258 (Collision warning system with active brake application FCW-Stop) Model 253.354/954/99 up to model year 2020 with code 258 (Collision warning system with active brake application FCW-Stop) A90 |
GF30.30-P-3214RF | |
| Active Brake Assist controller unit, component description | Model 205.013/047/053/054/147/213/247/253 as of model year 2019 with code 258 (Active Brake Assist System) Model 253.311/353/911/953 as of model year 2020 with code 258 (Active Brake Assist System) A108 |
GF30.30-P-3222RFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | |
| Model 205.013/213, 253.311/911 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for trailer recognition control unit | Model 205.012/013/047/053/054/147/212/213/247/253, 253.311/353/354/911/953/954/99 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205.012/013/047/053/054/147/212/213/247/253, 253.353/354/953/954/99 N30/4 |
GF42.45-P-5119RFH | |
| Parking system control unit component description | Model 205.012/047/147/212/247 up to model year 2019 with code 235 (Active Parking Assist) Model 253.354/954 up to model year 2020 with code 235 (Active Parking Assist) N62 |
GF54.65-P-5002RF | |
| Parking system control unit, component description | Model 205.013/047/053/054/147/213/247/253 as of model year 2019 with code P44 (Parking package) Model 205.013/047/053/054/147/213/247/253 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253.311/353/911/953 as of model year 2020 with code P44 (Parking package) Model 253.311/353/911/953 as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Component description for radar sensors control unit | Model 205.012/047/147/212/247 up to model year 2019 with code 23P (Drive package) Model 253.354/954/99 up to model year 2020 with code 23P (Drive package) N62/1 |
GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205.013/047/053/054/147/213/247/253 as of model year 2019 with code 23P (Drive package) Model 253.311/353/911/953 as of model year 2020 with code 23P (Drive package) N62/4 |
GF30.30-P-3312RFM | |
| Electrical power steering control unit(ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for the electronic ignition lock control unit | Model 205.012/047/147/212/247 up to model year 2019 Model 253.354/954 up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205.013/047/053/054/147/213/247/253 as of model year 2019 Model 253.311/353/911/953 as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205.012/047/147/212/247 up to model year 2019 Model 253.354/954 up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205.013/047/053/054/147/213/247/253 as of model year 2019 Model 253.311/353/911/953 as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | ||
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.353/354/953/954 with engine 274.920 Model 205.053/054/253 with engine 274.920 N82/2 |
GF54.10-P-3012RFH | |
| Drivetrain control unit, component description | Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N127 |
GF54.21-P-2141MRH | |
| Model 205.012/212 with engine 651.9 N127 |
GF54.21-P-2141OLC | ||
| Model 205.013/213, 253.311/911 with engine 654.9 N127 |
GF54.21-P-2141ORH | ||
| Component description for power electronics control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.353/354/953/954 with engine 274.920 Model 205.053/054/253 with engine 274.920 N129/1 |
GF08.20-P-1001RFH | |
| Component description for fully integrated transmission control unit | Model 205.012/047/147/212/247, 253.354/954 with transmission 724.2 Y3/8n4 |
GF27.60-P-5165RFH | |
| Model 205.013/053/054/213/253 with transmission 725.0 (except 725.017) Y3/8n4 |
GF27.60-P-5165ANG | ||
| Model 205.013/053/213/253 with transmission 725.017 Y3/8n4 |
GF27.60-P-5165AHH | ||
| Model 253.311/353/911/953 with transmission 725.0 Y3/8n4 |
GF27.60-P-5165ANI | ||
| Table of contents for function description of regenerative brake system | Model 205.012/013/047/053/054/147/212/213/247/253, 253.353/354/953/954/99 | GF42.22-P-0999RFH |
