Overview Of System Components For Electric Parking Brake - GF42.20-P-9998RF
Model 205, 253

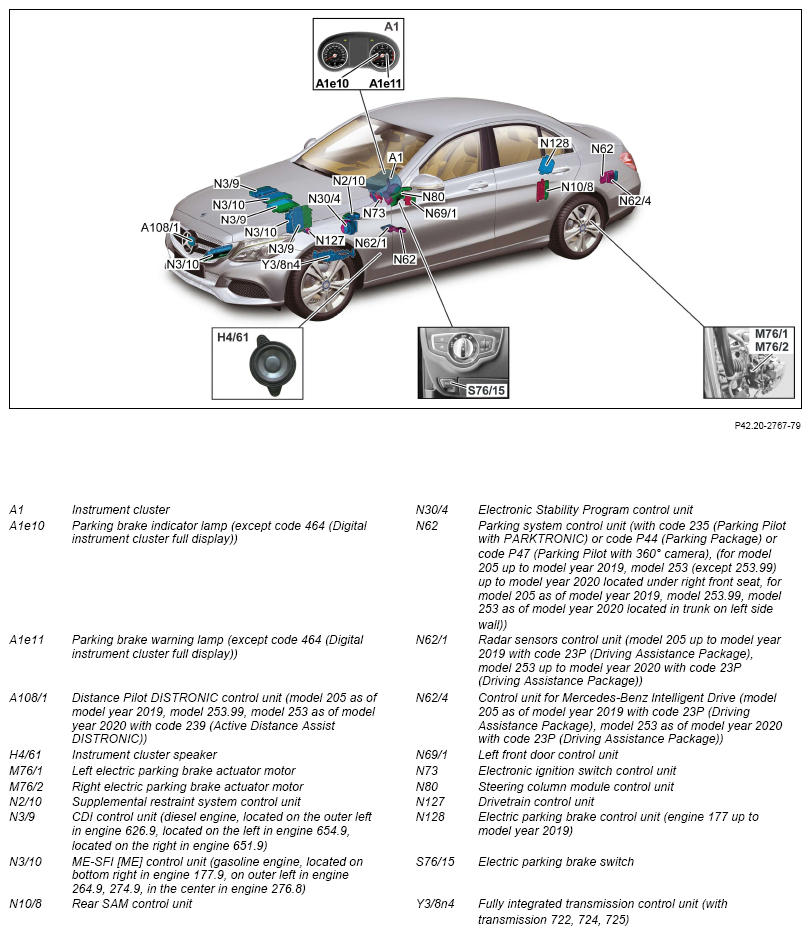

Shown on model 205.0
Model 205, 253
with code 464 (Instrument cluster 12.3" diagonal)
The indicator and warning lamps are shown as pictograms in the display.
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 205 as of model year 2019 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 253.99 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) A108/1 |
GF30.30-P-3218RFM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | |
| Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651.9 N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 | GF07.16-P-6000OLE | ||
| Model 205 with engine 626 N3/9 | GF07.16-P-6000ORB | ||
| Model 253 with engine 642.8 N3/9 | GF07.16-P-6000OGY | ||
| Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213, 253.311/911 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205, 253 with engine 177.9 N3/10 | GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 | GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 Model 253.354/953/954 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205, 253 with engine 264.9 N3/10 | GF07.61-P-6000MRS | ||
| Model 205, 253 with engine 276.8 N3/10 | GF07.61-P-6000MMV | ||
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.353/354/953/954/99) |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253, 253.353/354/953/954/99 N30/4 |
GF42.45-P-5119RFH | ||
| Parking system control unit component description | Model 205 up to model year 2019 with code 235 (Active Parking Assist) Model 253 (except 253.99) up to model year 2020 with code 235 (Active Parking Assist) N62 |
GF54.65-P-5002RF | |
| Parking system control unit, component description | Model 205 as of model year 2019 with code P44 (Parking package) Model 205 as of model year 2019 with code P47 (Parking Pilot with 360° camera) Model 253 (except 253.99) as of model year 2020 with code P44 (Parking package) Model 253 (except 253.99) as of model year 2020 with code P47 (Parking Pilot with 360° camera) Model 253.99 with code P47 (Parking Pilot with 360° camera) N62 |
GF54.65-P-5004RFM | |
| Component description for radar sensors control unit | Model 205 up to model year 2019 with code 23P (Drive package) Model 253 up to model year 2020 with code 23P (Drive package) N62/1 |
GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205 as of model year 2019 with code 23P (Drive package) Model 253 (except 253.99) as of model year 2020 with code 23P (Drive package) N62/4 |
GF30.30-P-3312RFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | ||
| Drivetrain control unit, component description | Model 205, 253 with engine 177.9 N127 | GF54.21-P-2141MNA | |
| Model 205, 253 with engine 264.9 N127 | GF54.21-P-2141MRS | ||
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N127 | GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N127 | GF54.21-P-2141MRH | ||
| Model 205, 253 with engine 276.8 N127 | GF54.21-P-2141RF | ||
| Model 205 with engine 626 N127 | GF54.21-P-2141ORB | ||
| Model 205.012/212 with engine 651.9 N127 | GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 Model 253 with engine 642.8, 651.9 N127 |
GF54.21-P-2141OLD | ||
| Model 205, 253 with engine 654.9 Model 253 with engine 656.9 N127 |
GF54.21-P-2141ORH | ||
| Electric parking brake control unit, component description | Model 205, 253 with engine 177 up to model year 2019 N128 | GF42.20-P-5005RF | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) Y38n4 |
GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 Y38n4 | GF27.60-P-5165AIA | ||
| Model 205, 253 with transmission 724.2 Y38n4 | GF27.60-P-5165RFH | ||
| Model 205 with transmission 725.0 (except 725.017) Y38n4 |
GF27.60-P-5165ANG | ||
| Model 205 with transmission 725.017 Y38n4 |
GF27.60-P-5165AHH | ||
| Model 253 with transmission 725.0 Y38n4 |
GF27.60-P-5165ANI | ||
| Table of contents for function description, electric parking brake | GF42.20-P-0999RF |
