Remove/Install Vacuum Pump - AR43.05-P-1320MRI
Engine 264 in model 205, 253
MODIFICATION NOTES
| 06.02.2019 | Bolt, vacuum pump to cylinder head/cylinder head cover | BA43.05-P-1001-01Q |
| Risk of injury to skin and eyes dup to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS 18.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine cover. | AR01.10-P-2405MRI | |
| 2 | Remove rear engine cover. | AR01.10-P-2408MRI | |

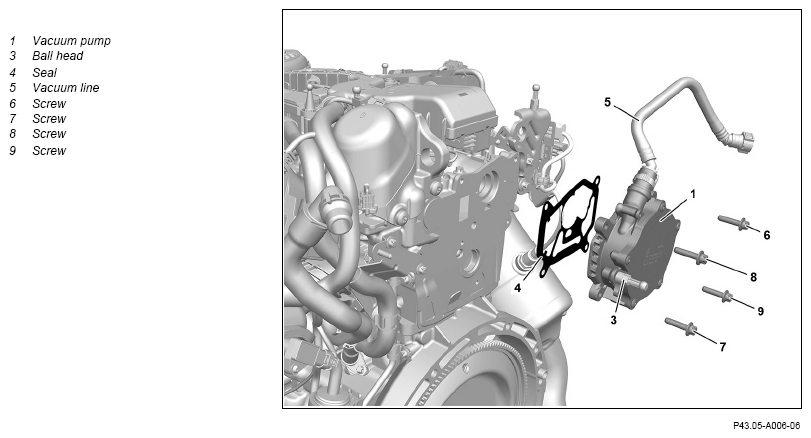

| 3 | Detach vacuum line (5) from vacuum pump (1). | ||
| 4 | Remove screws (6, 7, 8, 9). | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| *BA43.05-P-1001-01Q | |||
| 5 | Remove vacuum pump (1). | ||
| 6 | Unscrew ball head (3). | When replacing vacuum pump (1). |
*BA01.20-P-1010-03B |
| 7 | Install in the reverse order. | ||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform engine test run; in this connection, check engine for proper operation and leak tightness. | ||
| 9 | Install engine cover. | AR01.10-P-2405MRI |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA01.20-P-1010-03B | Ball head, engine cover to cylinder head cover/vacuum pump | Nm | 5 |
VACUUM PUMP
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA43.05-P-1001-01Q | Bolt, vacuum pump to cylinder head/cylinder head cover | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 30 | ||
