Remove/Install Rear-End Door Frame Seal - AR72.20-P-3540LWG

Model 253

Model 293

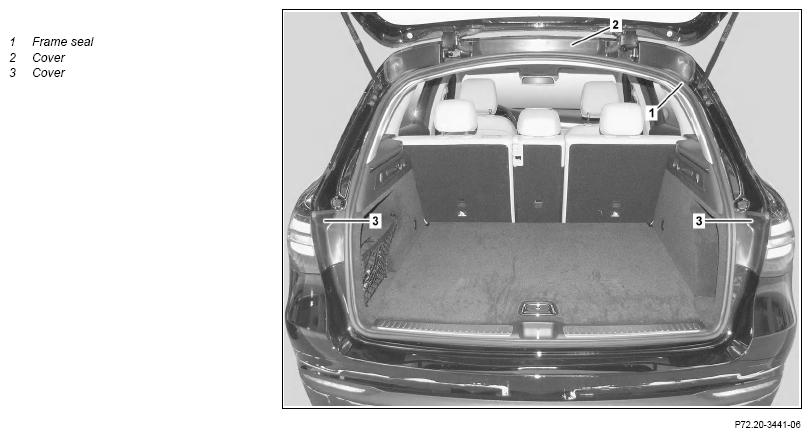

G14471501

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Unclip cover (2) and remove.
2	Unclip covers (3) and remove.
3	Remove sealing frame (1).	Do not use any lubricant. Otherwise leakage can occur later. Ensure sealing frame (1) is seated correctly.
4	Clean body flange.	Cleaner	*BR00.45-Z-1025-04A
5	Install in the reverse order.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
