Retrofit Liftgate Trim Piece - AZ72.20-P-4000LWG

Model 253.9

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

	Install

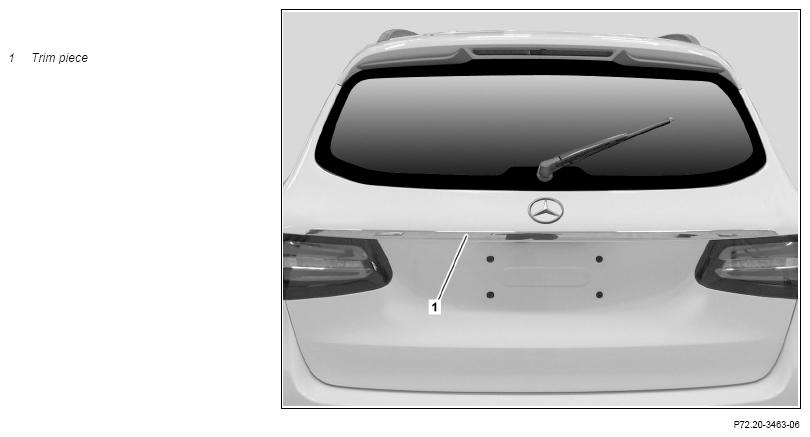

1	Clean liftgate in area of trim piece (1) to be installed	Cleaner	*BR00.45-Z-1025-04A
2	Install trim piece (1)		AZ72.20-P-4000-01LWG
		When pressing on, ensure that the pressure is applied directly on the adhesive tape. Otherwise there may be adhesion problems. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 h.
	Update Vehicle Documentation (VeDoc)
3	Attach note "Liftgate trim piece retrofitted according to AZ72.20-P-4000LWG under field organization text for design group 74

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Liftgate trim piece parts kit	1
