Remove/Install Inertization System Line In Engine Compartment - AR86.10-P-0119MFC
Model 118, 177, 247 with engine 260
with code 2U8 (Alternative refrigerant)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

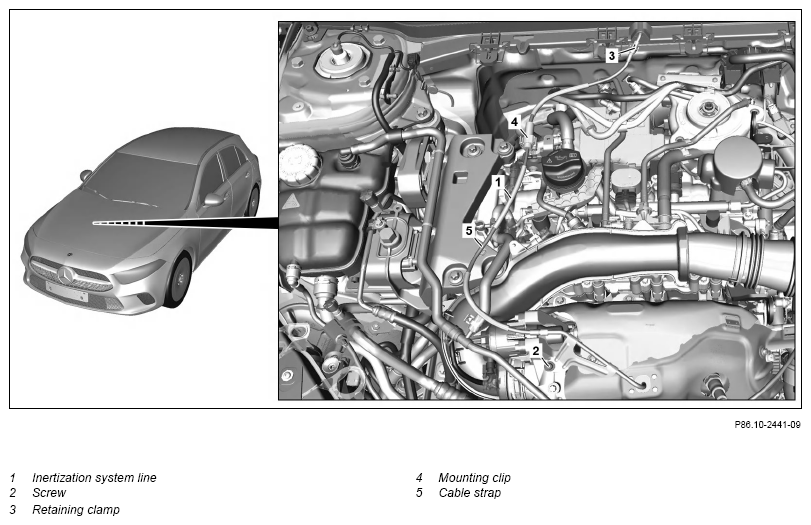

| 1 | Remove engine cover. | ||
| AP01.10-P-2405-01C | |||
| 2 | Remove screw/bolt (2). | *BA86.10-P-1002-03K | |
| 3 | Remove the retaining clamp (3). | ||
| 4 | Open the retaining clip (4) and unclip the cable strap (5). | ||
| 5 | Remove the inertization system line (1). | ||
| Check | |||
| 6 | Check the inertization system line (1) for damage and plugging. | If problems occur, ↓ Replace the inertization system line (1). |
|
| 7 | Install in the reverse order. |
INERTING SYSTEM
| Number | Designation | Model 118 | Model 177 | ||
|---|---|---|---|---|---|
| BA86.10-P-1002-03K | Bolt/nut for inerting system gas line to engine/body | M6 | Nm | 8 | 8 |
INERTING SYSTEM
| Number | Designation | Model 247 | ||
|---|---|---|---|---|
| BA86.10-P-1002-03K | Bolt/nut for inerting system gas line to engine/body | M6 | Nm | 8 |
