Remove/Install Inertization Cartridge - AR86.10-P-0106MFC

Model 118, 177, 247 with engine 260, 282

with code 2U8 (Alternative refrigerant)

Model 118, 177, 247.7 with engine 139

with code 2U8 (Alternative refrigerant)

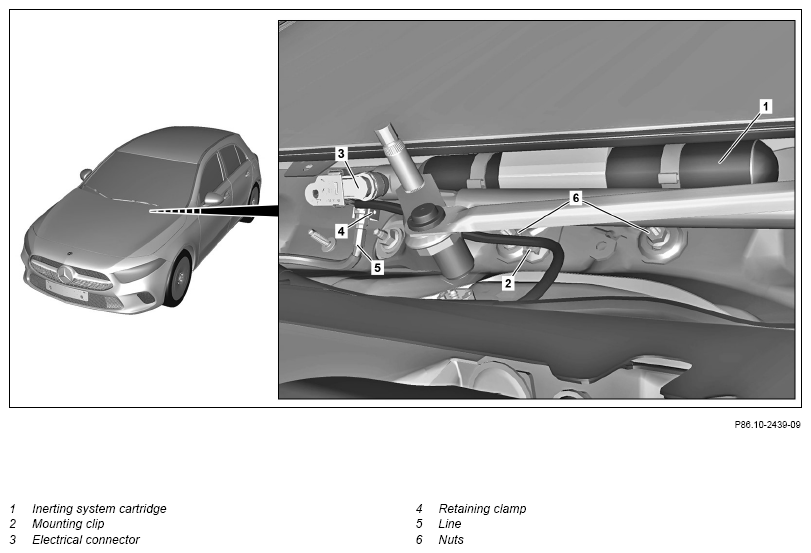

Fig 1: Inerting System Cartridge Components Location - Model 247 With Engine 260 With Code 2U8 (Shown On Model 177.0)

Courtesy of MERCEDES-BENZ USA

Shown on model 177.0 with code 2U8 (Alternative refrigerant)

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove cover for air/water duct.	Model 118, 177 with engine 139, 260, 282 with code 2U8 (Alternative refrigerant)	AR83.10-P-1411MFA
		Model 247 with engine 260, 282 with code 2U8 (Alternative refrigerant) Model 247.7 with engine 139 with code 2U8 (Alternative refrigerant)	AR83.10-P-1411MFB
2	Detach ground line of on-board electrical system battery.		AR54.10-P-0003MFA
3	Unclip retaining clip (2).	Dismantling tool	Fig 2
4	Release and disconnect electrical connection (3)	Removal lever	Fig 3
5	Remove retaining clamp (4) and disconnect line (5) from inerting system cartridge (1).	Always replace retaining clamp (4).
6	Remove nuts (6).	Nut, inerting system cartridge to body	*BA86.10-P-1001-03K
7	Remove inerting system cartridge (1).
8	Check seal on connection of line (5) to inerting system cartridge (1) for damage.	If damage is present, ↓ replace inerting system cartridge (1).
9	Install in the reverse order.

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Removal Lever (203 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
