Check Manual Operating Mechanism For Combination/Cruise Control Lever Routing - AP86.20-P-8654C
Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 257, 293 with code 45P (Disability conversion - Sales control code)

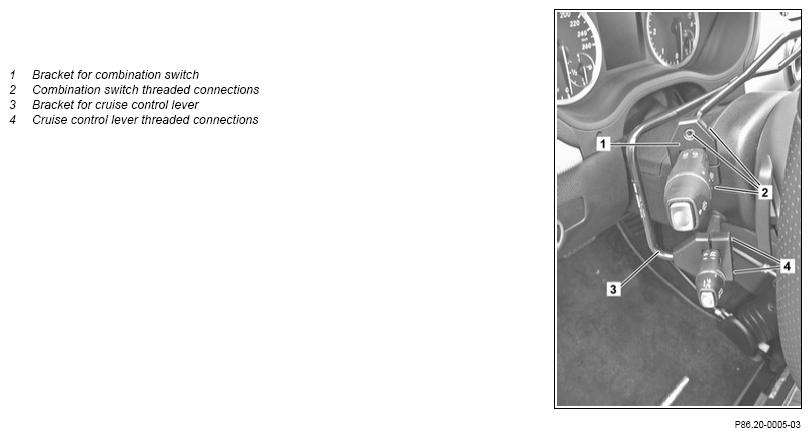

Shown in model 176
| Check | |||
| 1 | Check combination switch bracket (1) for tight seating. | ||
| 2 | Check cruise control lever bracket (3) for tight seating. | ||
| 3 | Check combination switch threaded connections (2) at combination switch bracket (1) for tight seating. | If the combination switch threaded connections (2) are not adequately fastened, ↓ Retighten threaded connections for combination switch (2). |
|
| 4 | Check cruise control lever threaded connections (4) at cruise control lever bracket (3) for tight seating. | If the cruise control lever threaded connections (4) are not adequately fastened, ↓ Retighten threaded connections for cruise control lever (4). |
